| LP0115CCKW015CB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

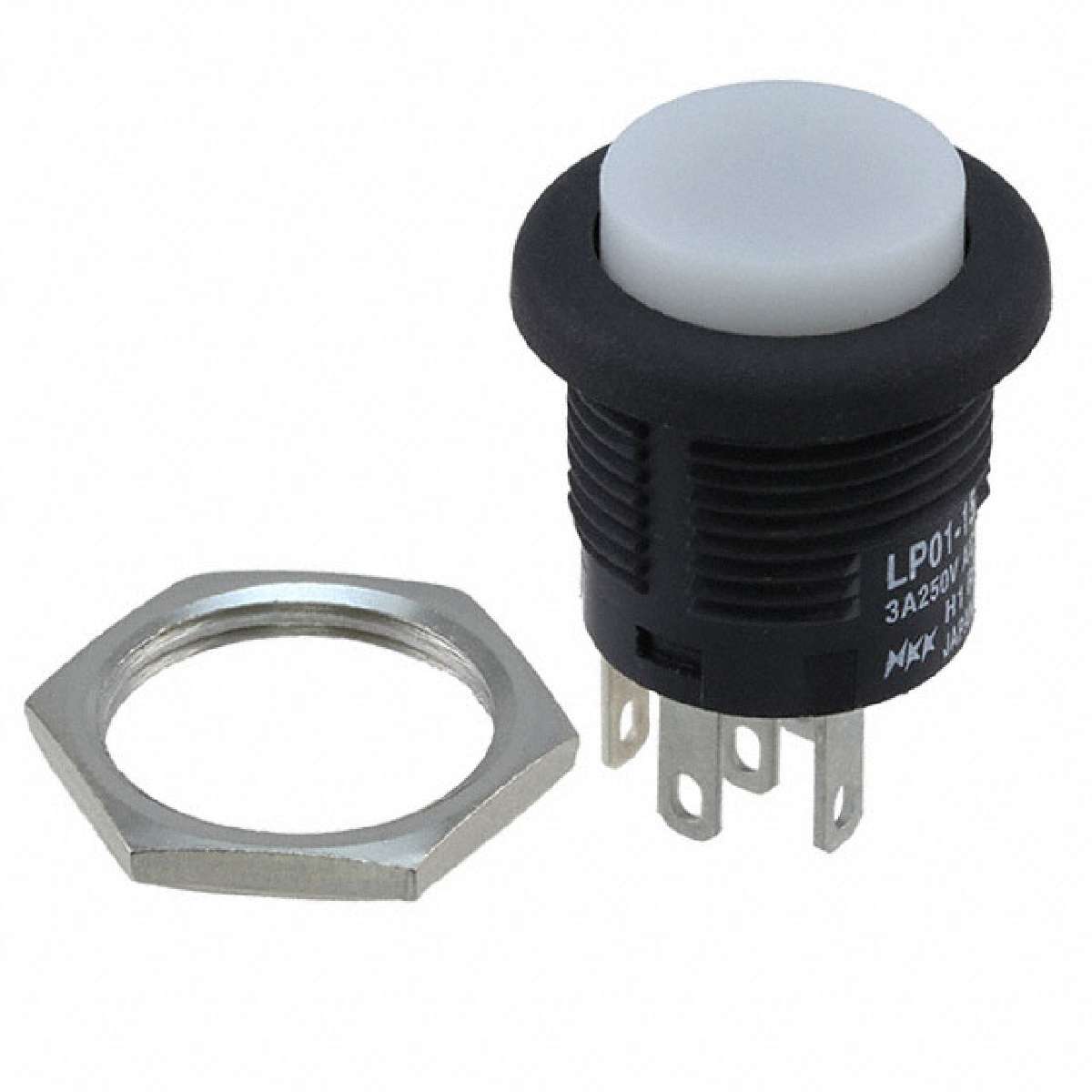

LP Series SPDT On-Momentary Panel Mount Quick Connect Push Button Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Illumination Voltage (Nominal) | 1.95 VDC |
|---|---|
| Actuator Type | Round, Button |
| Type | Standard, Illuminated |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Part Status | Active |
| Electrical Life | 50,000 Cycles |
| Manufacturer | NKK Switches |
| Series | LP01 |
| Family | Pushbutton Switches |
| Mounting Type | Panel Mount, Front |
| Packaging | Bulk |
| ECCN | EAR99 |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Illumination Type, Color | LED, Red |
| Category | Switches |
| Color - Actuator/Cap | White |
| Mechanical Life | 500,000 Cycles |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Operating Temperature | -10°C ~ 50°C |
| Current Rating | 3A (AC/DC) |
| 数据手册： |
|---|
