LM-NP-1001-B1L specifications -Ameya360 electronic components purchase network

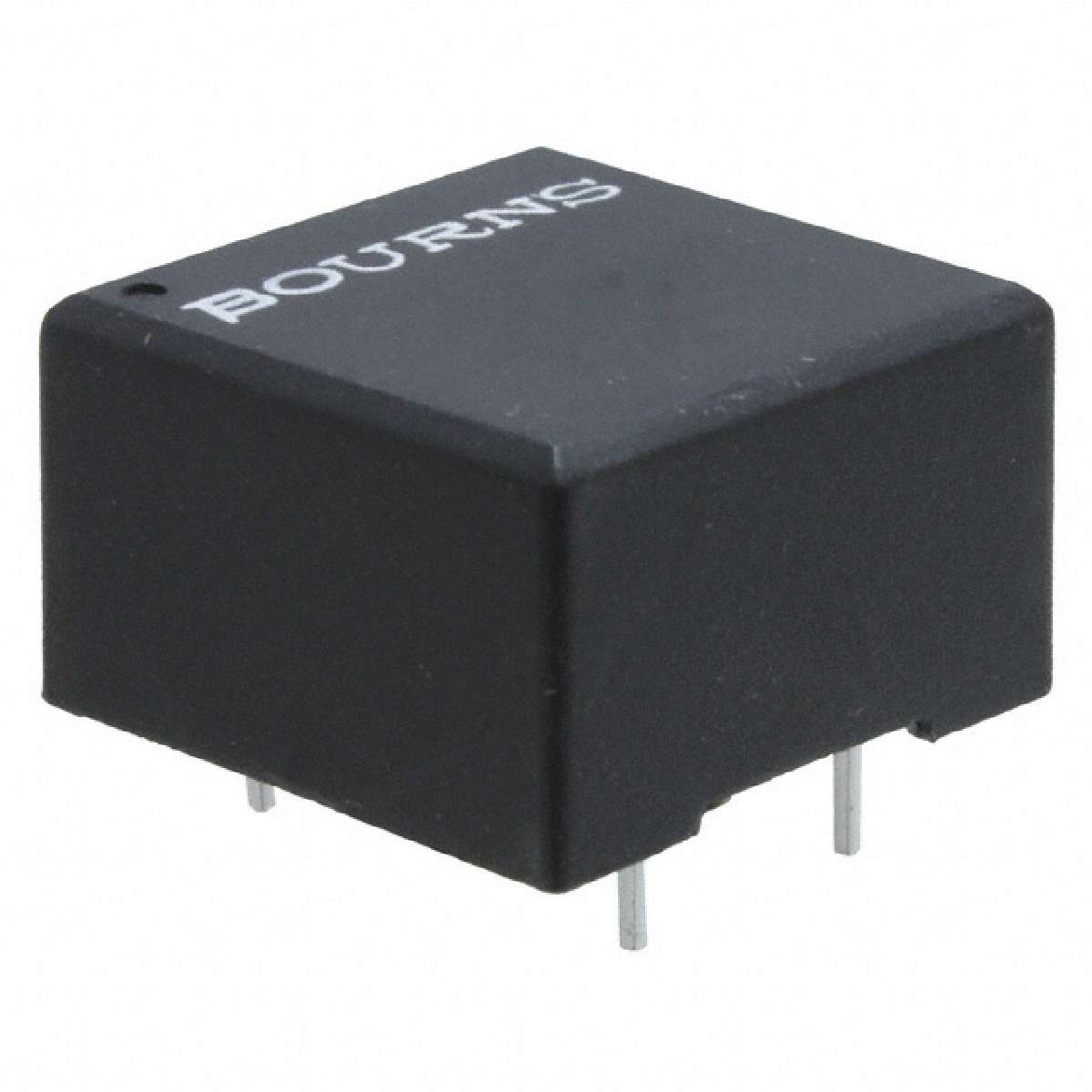

LM-NP-1001-B1L

ACTIVE
Product description : Transformer: audio; Z: 600Ω; Rpri.wind: 66Ω; Rsec.winding: 66Ω
SPQ：1
Datasheet : LM-NP-1001-B1L.pdf

Product:	Signal
Inductance:	2.8 H
Packaging:	Tube
Frequency Range:	200 Hz to 3.5 kHz
Application:	Line Matching
Height:	12.6 mm
Length:	17.7 mm
Series:	LM-NP 1000
Brand:	Bourns
Termination Style:	Through Hole
Maximum DC Resistance:	66 Ohms
Secondary Impedance:	600 Ohms
Secondary Resistance:	66 Ohms
Width:	17.7 mm
Primary Resistance:	66 Ohms
Operating Temperature Range:	- 10 C to + 60 C
Shielding:	Shielded
Primary Impedance:	600 Ohms
Manufacturer:	Bourns
Factory Pack Quantity:	28
RoHS:	Details
Product Category:	Audio & Signal Transformers
Type:	Pin Terminal Transformers

Datasheet： LM-NP-1001-B1L.pdf
