| LGU2W101MELA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

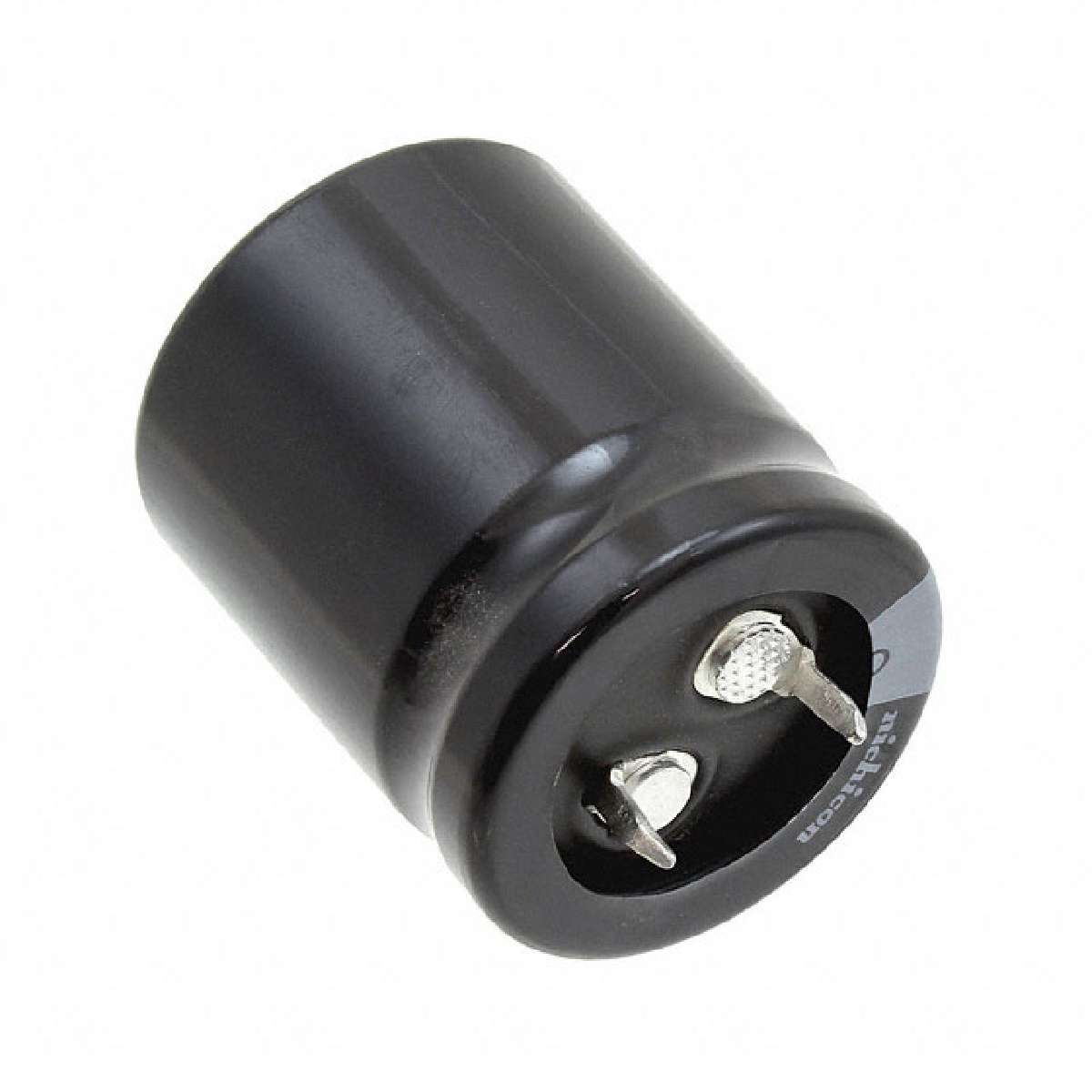

GU Series 100 uF 450 V 105°C Ø25 x 30 mm Snap-In Aluminum Electrolytic Cap
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 450V |
|---|---|
| Package / Case | Radial, Can - Snap-In |
| Capacitance | 100µF |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Ripple Current | 690mA @ 120Hz |
| Manufacturer | Nichicon |
| Series | LGU |
| Applications | General Purpose |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Packaging | Bulk |
| Tolerance | ±20% |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| ECCN | EAR99 |
| 数据手册： |
|---|
