| LDS-M512RI-RA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

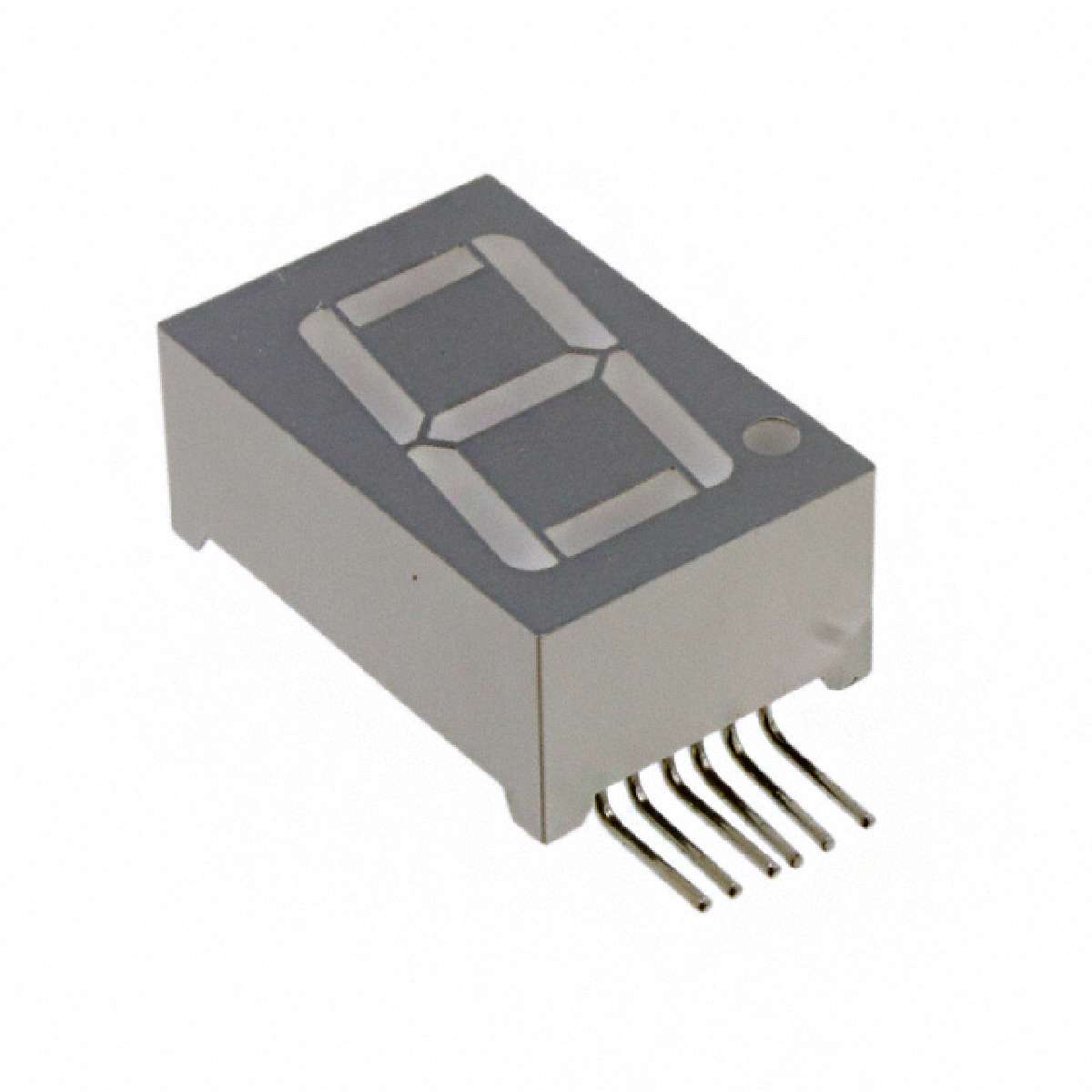

Green Single Digit 7 Segment 0.56 2.25 mcd Common Anode 2.2 V LED Display
|
||
| 标准包装：40 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Character Size: | 0.56 in |
|---|---|
| Packaging: | Tube |
| Manufacturer: | Lumex |
| Operating Temperature Range: | - 40 C to + 85 C |
| Factory Pack Quantity: | 39 |
| RoHS: | Details |
| Product Category: | LED Displays & Accessories |
| Illumination Color: | Green |
| Type: | Numeric Display |
| Wavelength: | 565 nm |
| Maximum Operating Temperature: | + 85 C |
| Display Type: | 7 Segment |
| If - Forward Current: | 25 mA |
| Luminous Intensity: | 2250 ucd |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Lumex |
| Power Consumption: | 105 mW |
| Number of Digits: | 1 |
| Configuration: | Common Anode |
| Mounting Style: | Through Hole |
| Vf - Forward Voltage: | 2.2 V |
| ECCN | EAR99 |
