| LDD-HTC514RI | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

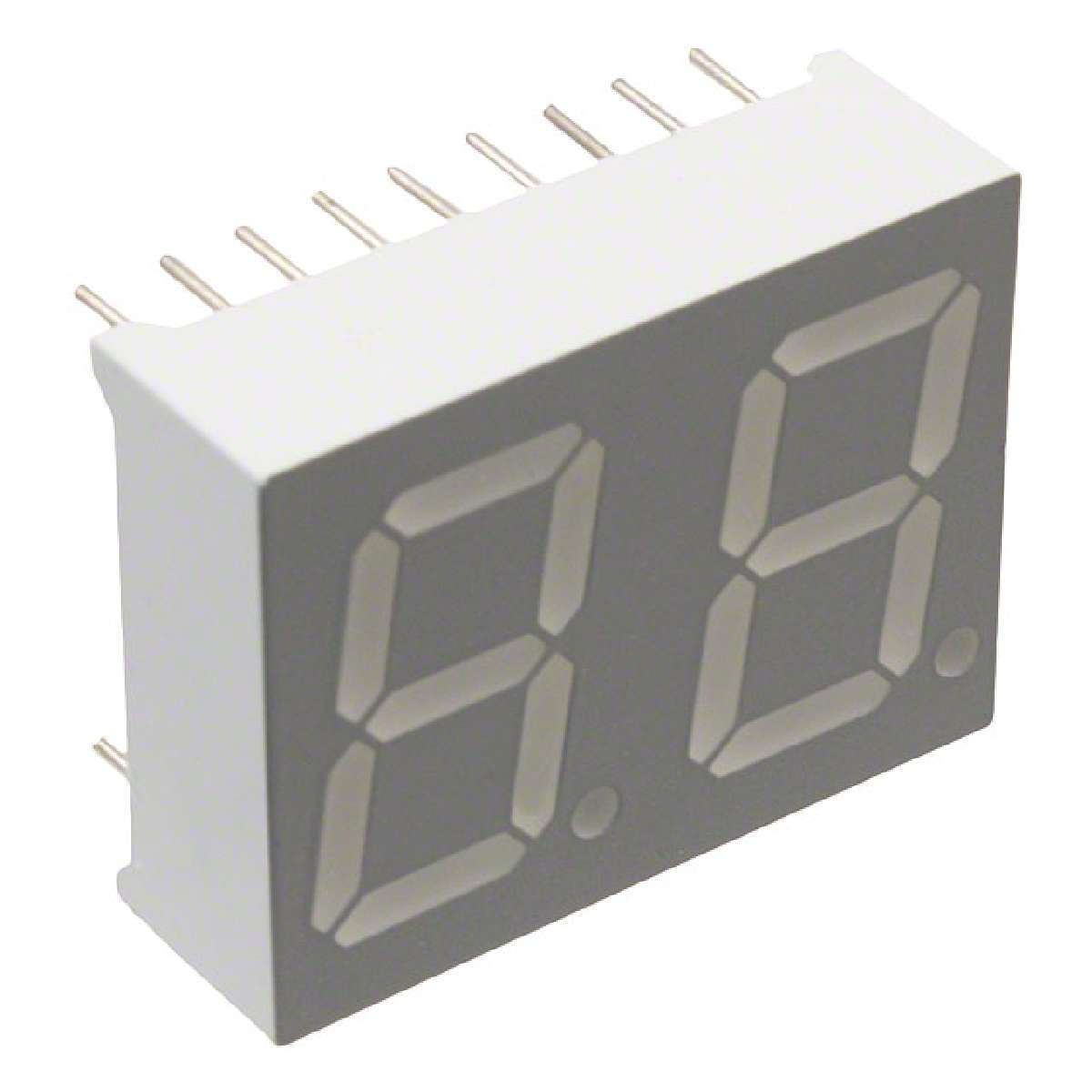

Dual Digit Seven Segment Red 0.56 Common Cathode Through Hole LED Display
|
||
| 标准包装：20 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Characters | 2 |
|---|---|
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Size / Dimension | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Manufacturer | Lumex Opto/Components Inc. |
| Voltage - Forward (Vf) (Typ) | 2V |
| Wavelength - Peak | 635nm |
| Common Pin | Common Cathode |
| Packaging | Tube |
| Power Dissipation (Max) | 105mW |
| Color | Red |
| Part Status | Active |
| Category | Optoelectronics |
| Display Type | 7-Segment |
| Current - Test | 10mA |
| Family | Display Modules - LED Character and Numeric |
| Millicandela Rating | 3.9mcd |
| ECCN | EAR99 |
