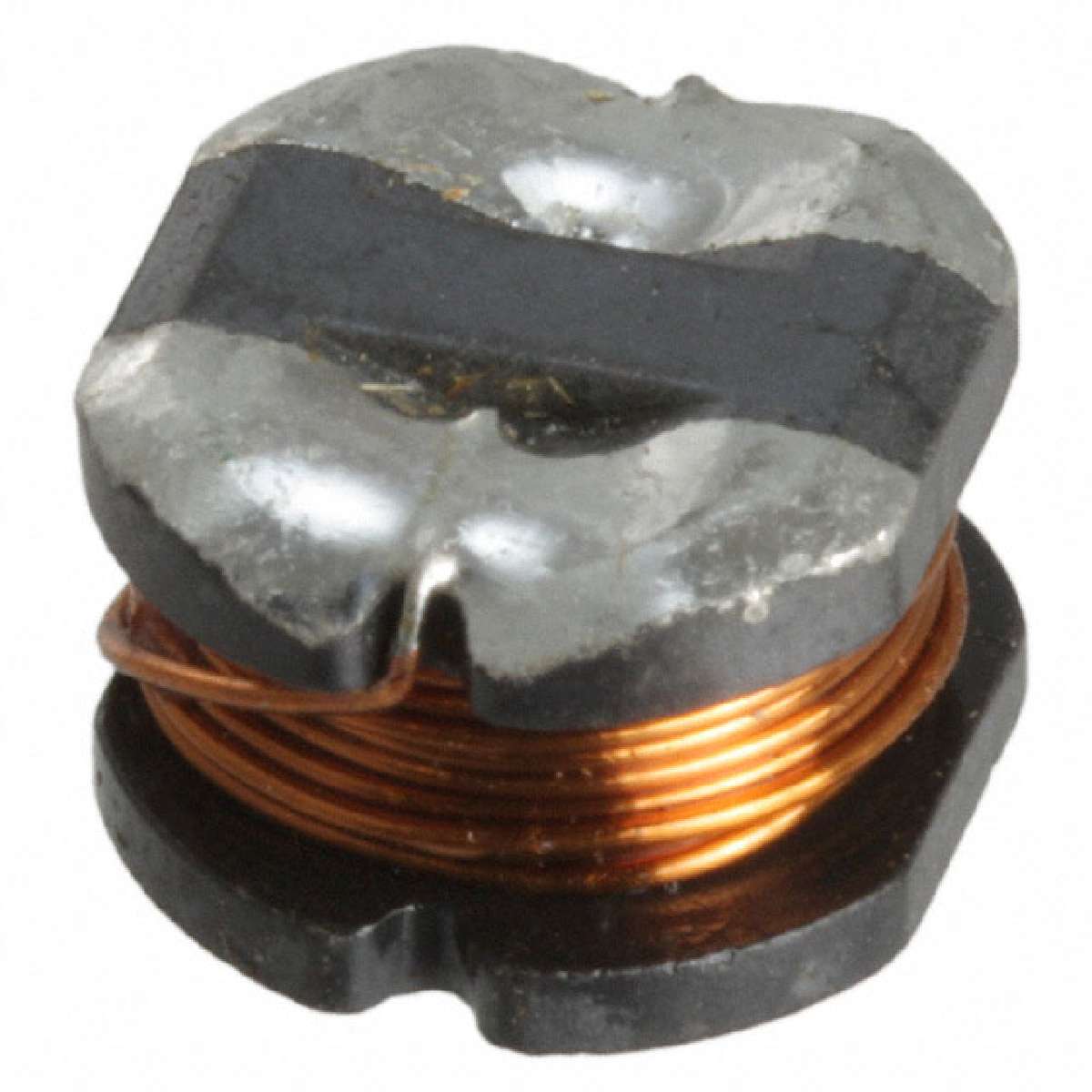

| LD2-101-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FIXED IND 100UH 1.53A 430 MOHM
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Nonstandard |
| Current - Saturation | 1.15A |
| Part Status | Active |
| Manufacturer | Eaton |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Unshielded |
| DC Resistance (DCR) | 430 mOhm Max |
| Current Rating | 1.53A |
| ECCN | ECL99 |
| Inductance | 100µH |
| Type | Wirewound |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Series | LD |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 100kHz |
