| LB16SKW01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

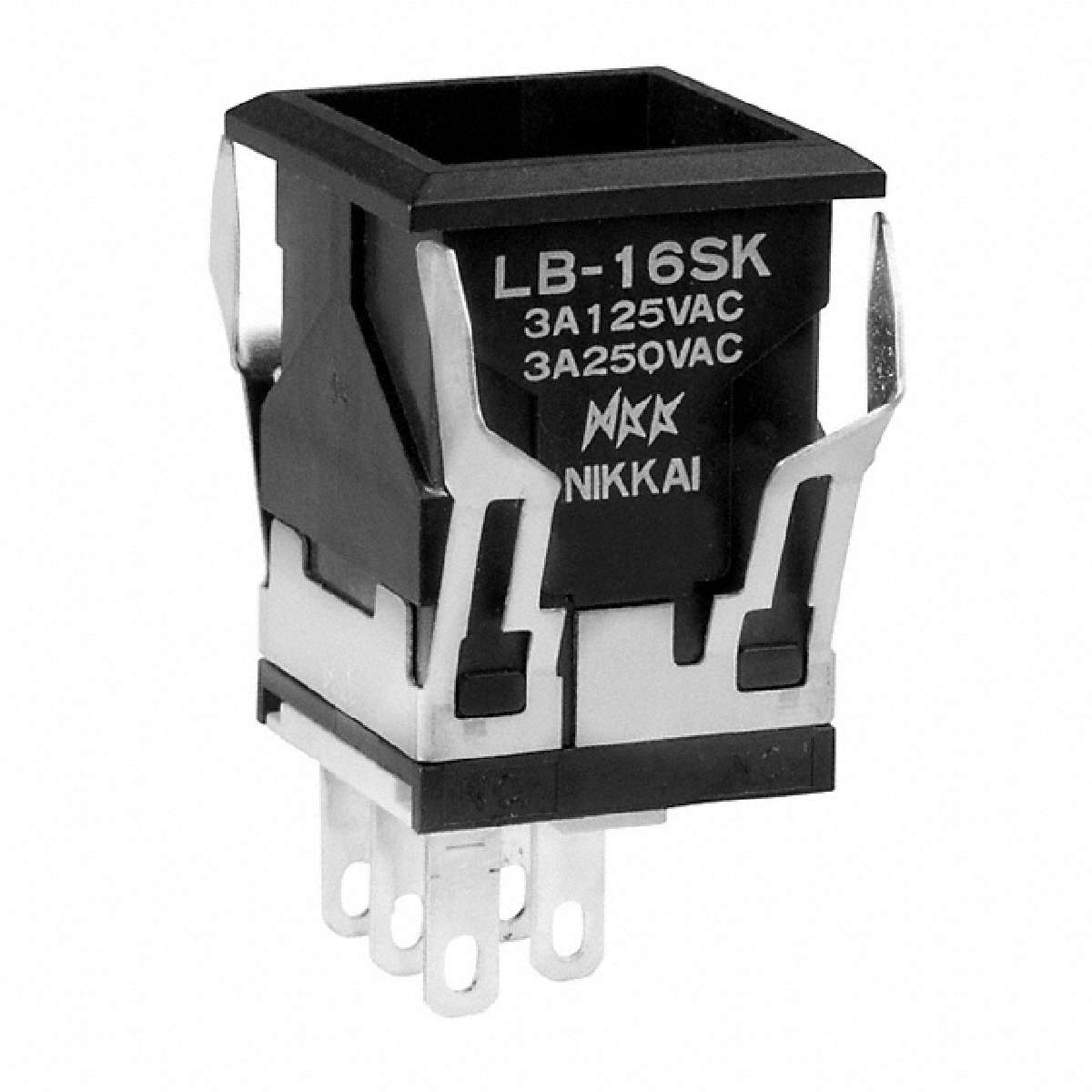

Switch: push-button; Pos: 2; SPDT; 3A/250VAC; 3A/30VDC; ON-ON; IP65
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Bulk |
|---|---|
| Terminal Seal: | Epoxy |
| Actuator: | Without Cap |
| Features: | Button/cap ordered separately |
| Series: | LB |
| Contact Form: | SPDT |
| Part # Aliases: | LB-16SKS1 |
| RoHS: | Details |
| Product Category: | Pushbutton Switches |
| Current Rating: | 3 A |
| Illumination Color: | None |
| Mounting Style: | Panel |
| Housing Material: | Polyamide, Glass Fiber Reinforced |
| Switch Function: | ON - ON |
| Manufacturer: | NKK Switches |
| Voltage Rating AC: | 250 V |
| Mounting Type: | Snap In |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Solder Lug |
| Flammability Rating: | UL 94 V-0 |
| Contact Plating: | Silver |
| Life: | 200000 Cycles |
| ECCN | EAR99 |
