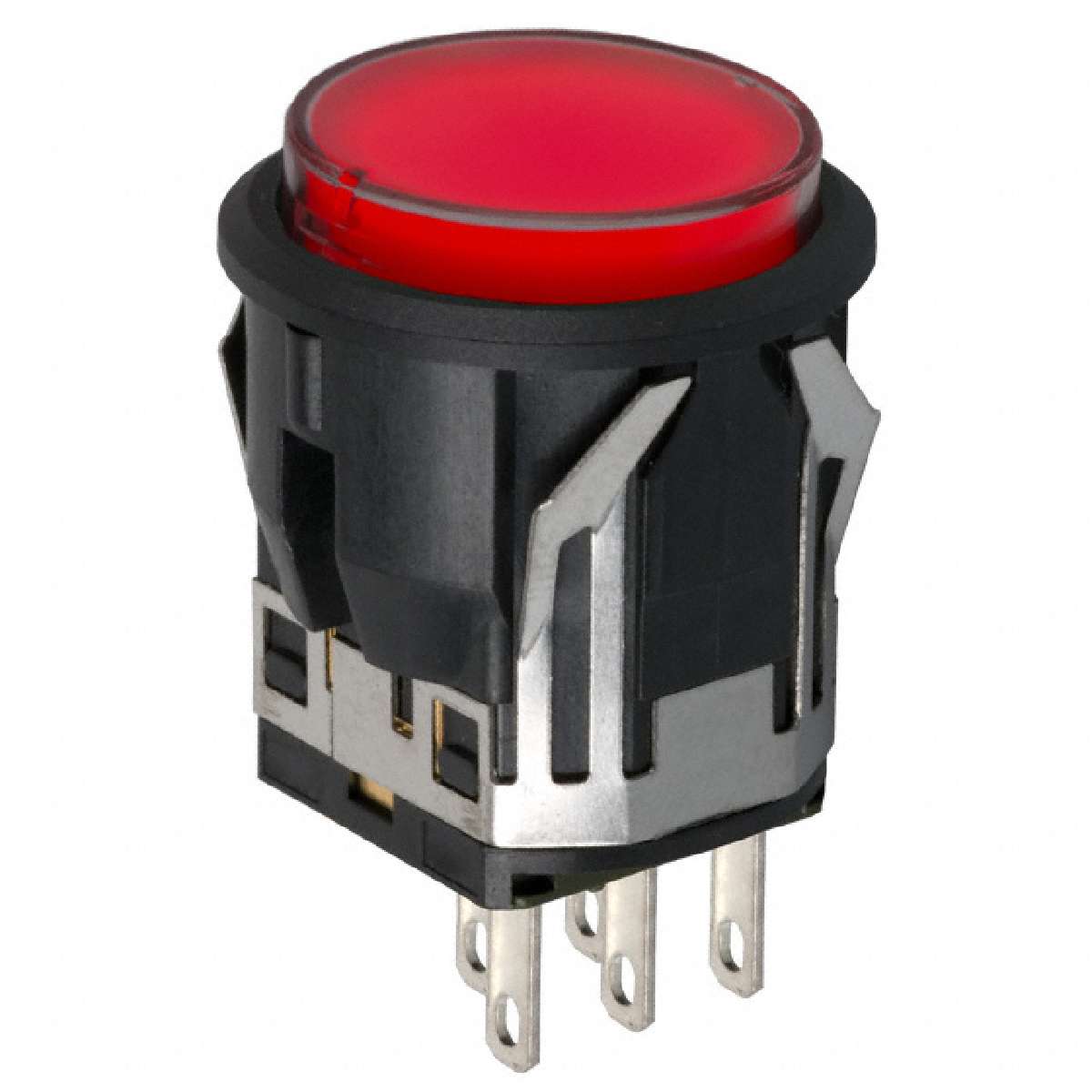

| LB15CKW01-5C-JC | ||
|---|---|---|
|
|
||
|
||
| Product description : SWITCH, PUSHBUTTON, ILLUMINATED, SPDT, 3 | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Bulk |
|---|---|
| Terminal Seal: | Epoxy |
| Actuator: | Round |
| Voltage Rating AC: | 250 V |
| Mounting Type: | Snap In |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| LED Size: | T-1 1/2 Bi-pin |
| Flammability Rating: | UL 94 V-0 |
| Contact Plating: | Gold |
| Illumination Color: | Red |
| Mounting Style: | Panel |
| Housing Material: | Polyamide, Glass Fiber Reinforced |
| Switch Function: | ON - (ON) |
| Manufacturer: | NKK Switches |
| Series: | LB |
| Contact Form: | SPDT |
| Brand: | NKK Switches |
| Termination Style: | Solder Lug |
| Product Category: | Illuminated Pushbutton Switches |
| Current Rating: | 3 A |
| Illumination: | LED |
| Life: | 1000000 Cycles |
| ECCN | EAR99 |
