| L6370Q | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
IC: driver; high-side; VFQFPN48; 2.5A; Channels: 1; 25kHz; 9.5÷35V
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Outputs | 1 |
|---|---|

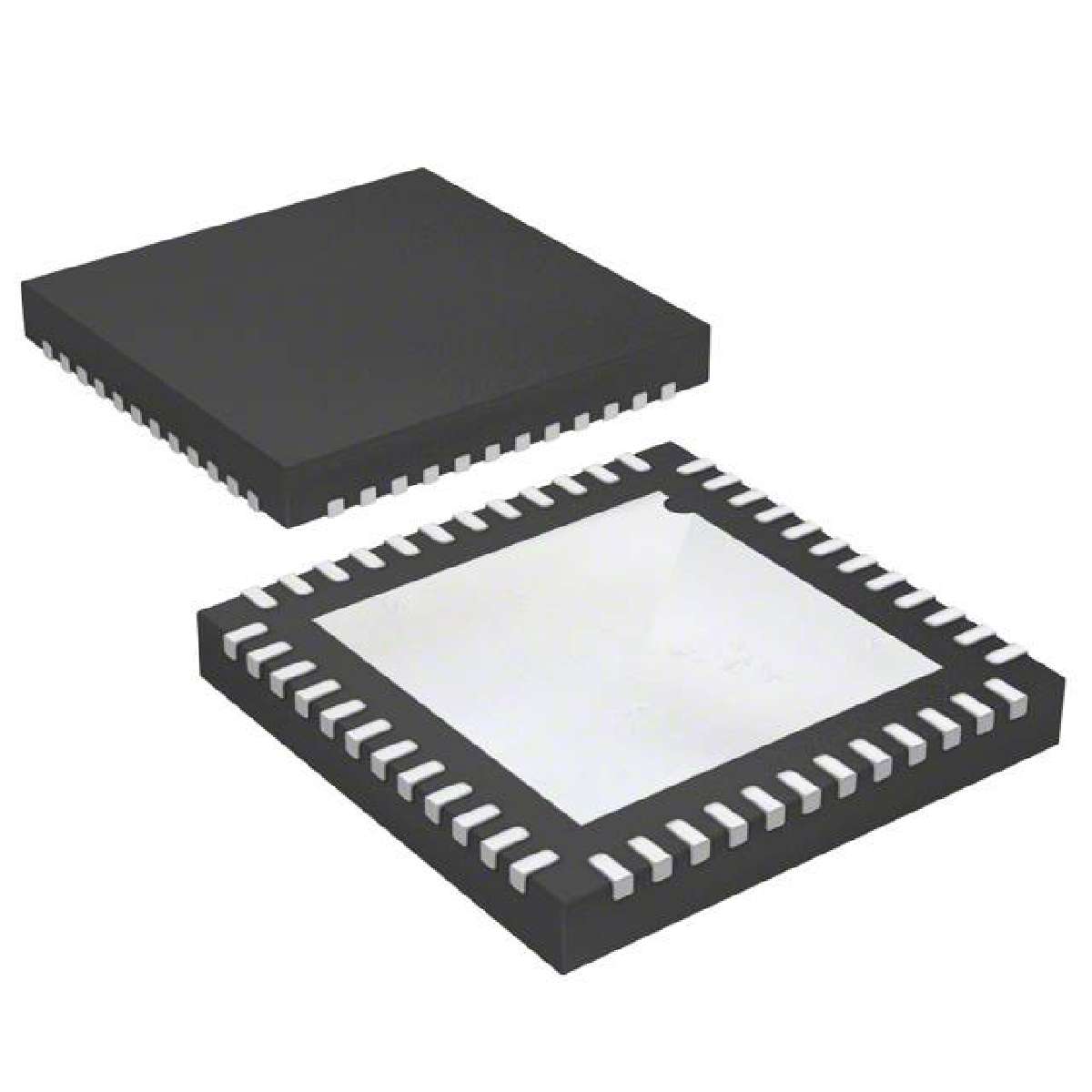

| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Switch Type | General Purpose |
| Features | Status Flag |
| Interface | On/Off |
| Manufacturer | STMicroelectronics |
| Output Type | N-Channel |
| Family | PMIC - Power Distribution Switches, Load Drivers |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Input Type | Differential |
| Output Configuration | High Side |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO |
| Part Status | Active |
| Category | Integrated Circuits (ICs) |
| Voltage - Load | 9.5 V ~ 35 V |
| Rds On (Typ) | 100 mOhm |
| Ratio - Input:Output | 1:1 |
| Packaging | Tray |
| ECCN | EAR99 |
