| KSS321GLFS | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

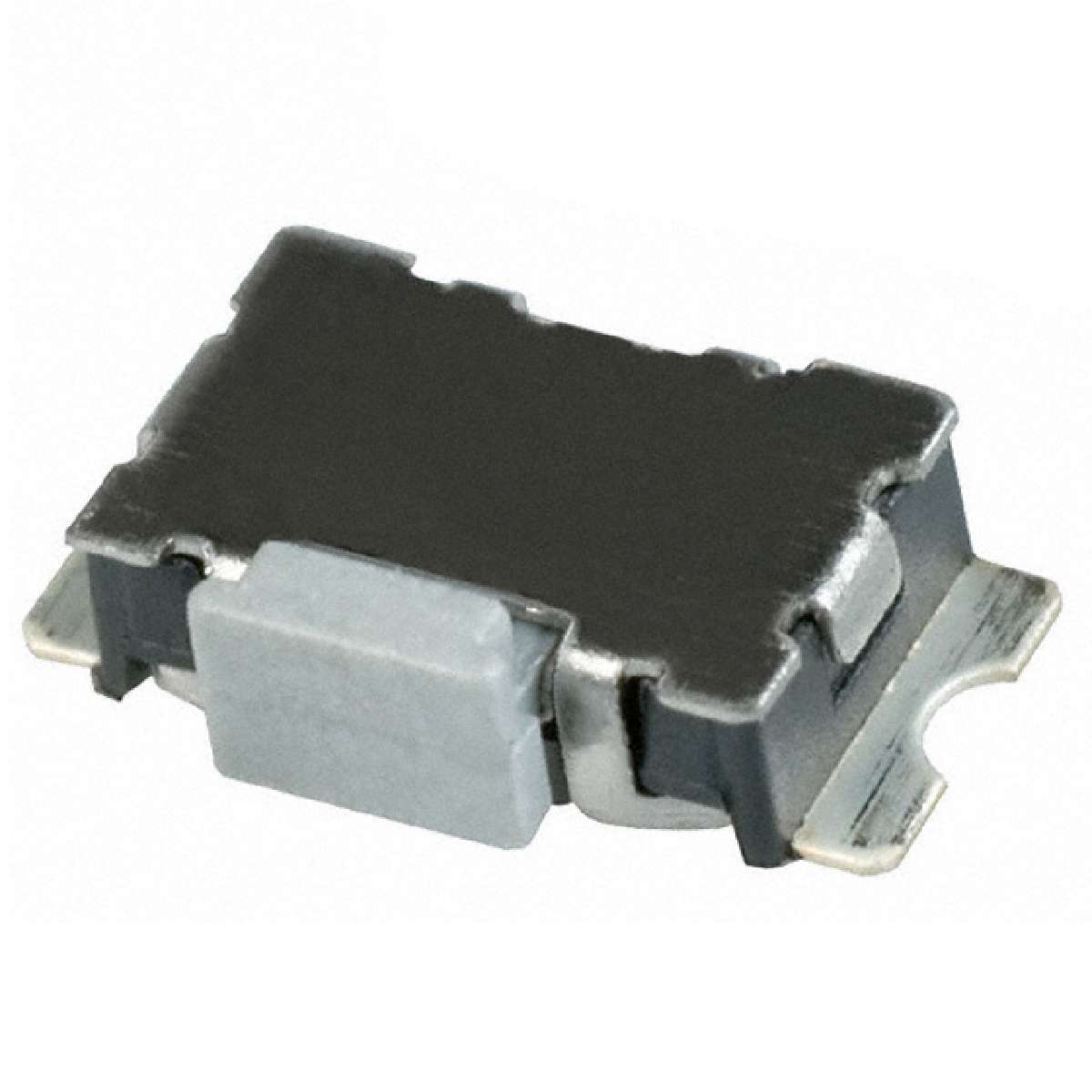

KSS Series Sub Mini Side Actuated SPST 2 N Surface Mount Tactile Switch
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Mounting Direction: | Right Angle |
|---|---|
| Power Rating: | 1 VA |
| Switch Function: | OFF - (ON) |
| Actuator: | Rectangular |
| Series: | KSS |
| Contact Form: | SPST |
| Part # Aliases: | Y39A32110FP |
| RoHS: | Details |
| Product Category: | Tactile Switches |
| Ground Terminal: | No |
| Mounting Style: | SMD/SMT |
| Width: | 4.4 mm |
| Operating Force: | 2 N |
| Length: | 7 mm |
| Manufacturer: | C&K Components |
| Voltage Rating DC: | 32 VDC |
| Factory Pack Quantity: | 3000 |
| Brand: | C&K Components |
| Termination Style: | Gull Wing Lead |
| Current Rating: | 50 mA |
| Height: | 1.7 mm |
| ECCN | EAR99 |
