| KSH44H11ITU | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
NPN 1.75 W 80 V 8 A Surface Mount Epitaxial Silicon Transistor - TO-252-3
|
||
| 标准包装：5040 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A |
|---|---|

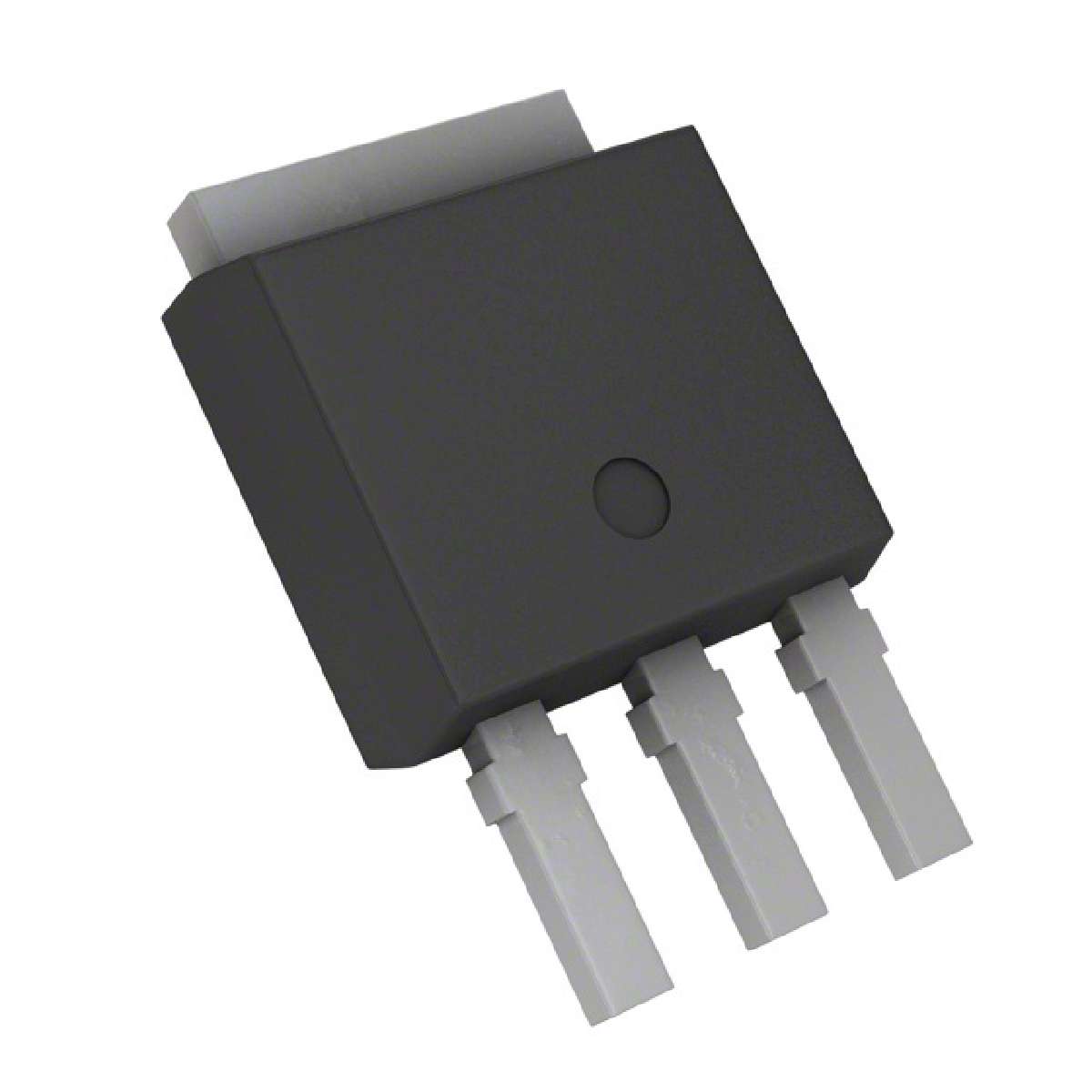

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 8A |
| Category | Discrete Semiconductor Products |
| Voltage - Collector Emitter Breakdown (Max) | 80V |
| Mounting Type | Through Hole |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 4A, 1V |
| ECCN | EAR99 |
| Frequency - Transition | 50MHz |
| Power - Max | 1.75W |
| Supplier Device Package | I-Pak |
| Part Status | Active |
| Manufacturer | Fairchild Semiconductor |
| Family | Transistors - Bipolar (BJT) - Single |
| Current - Collector Cutoff (Max) | 10µA |
| Packaging | Tube |
