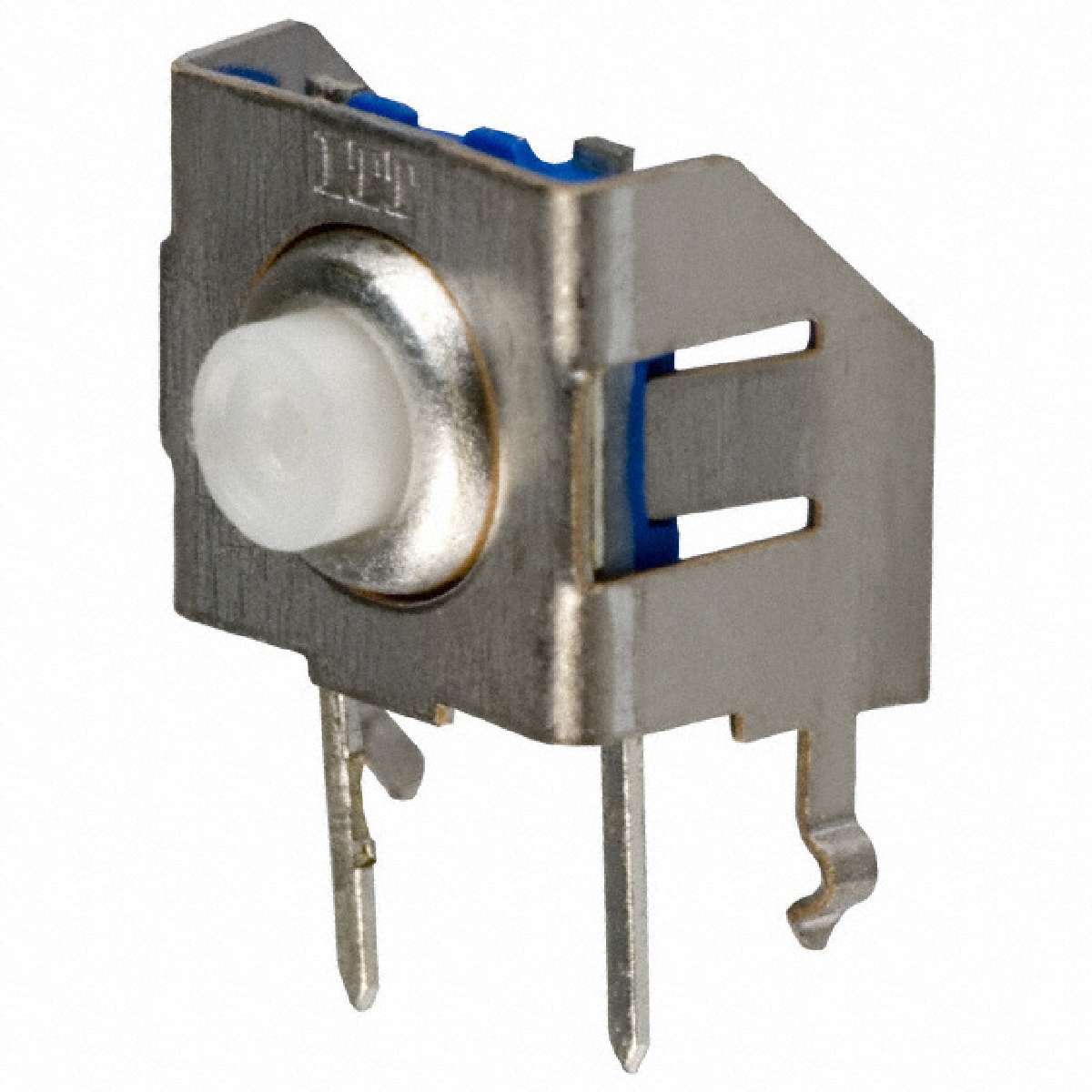

| KSA0V211LFT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
SWITCH TACTILE SPST-NO 0.05A 32V
|
||
| 标准包装：250 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPST-NO |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Ingress Protection | IP60 - Dust Tight |
| Part Status | Discontinued |
| Category | Switches |
| Series | KSA |
| Family | Tactile Switches |
| Mounting Type | Through Hole, Right Angle |
| Packaging | Bulk |
| Actuator Type | Standard |
| Actuator Orientation | Side Actuated |
| Actuator Height off PCB, from Pins | 5.80mm |
| Termination Style | PC Pin |
| Manufacturer | C&K Components |
| Illumination | Non-Illuminated |
| Operating Force | 130gf |
| Outline | 8.00mm x 8.00mm |
| Operating Temperature | -40°C ~ 90°C |
| ECCN | ECL99 |
