| KSA0M211LFT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

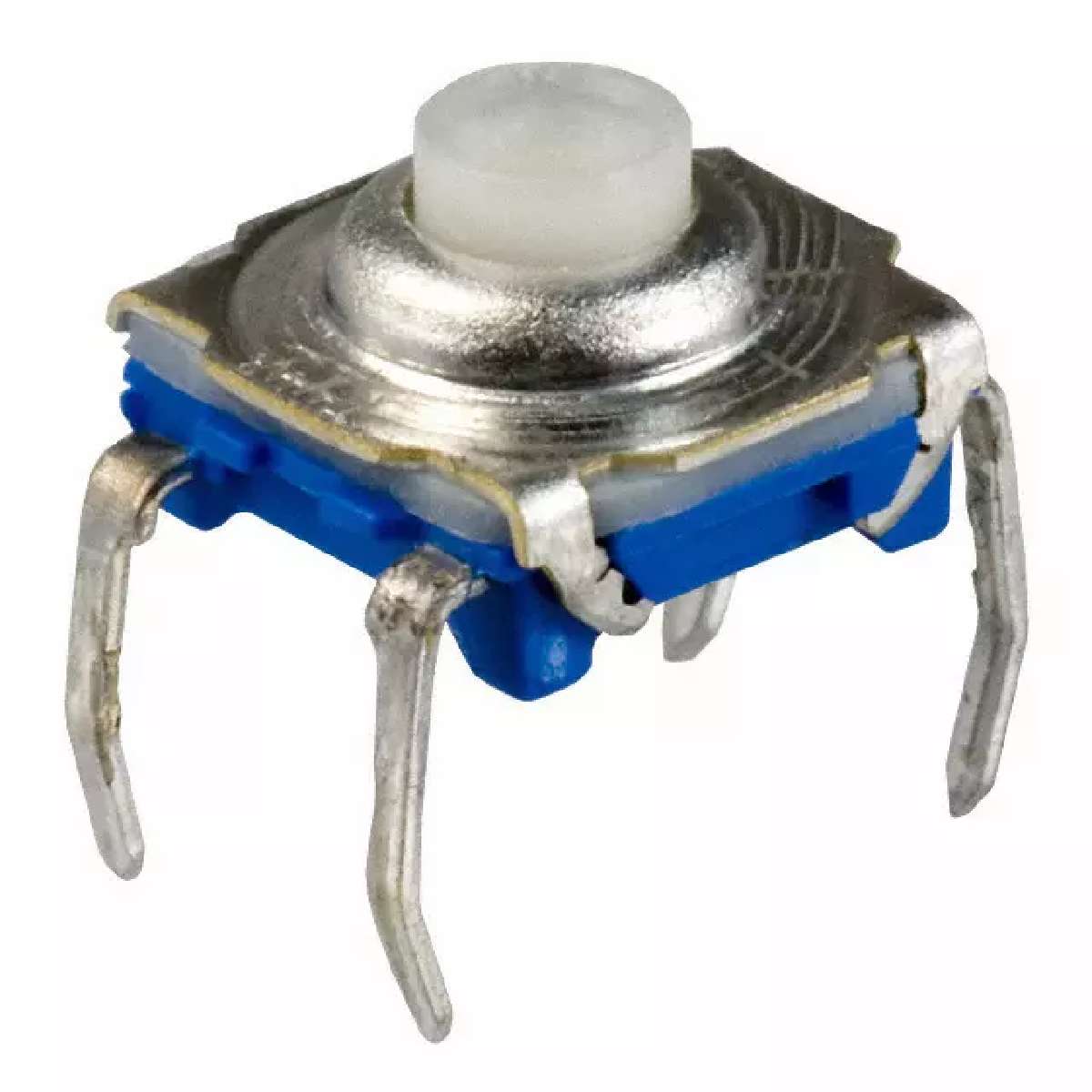

SWITCH TACTILE SPST-NO 0.05A 32V
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Ingress Protection | IP60 - Dust Tight |
|---|---|
| Operating Force | 130gf |
| Illumination | Non-Illuminated |
| Switch Travel | 0.50mm |
| Categories | Switches |
| Termination Style | PC Pin |
| Circuit | SPST-NO |
| Mounting Type | Through Hole |
| Series | KSA |
| Packaging | Bulk |
| Actuator Orientation | Top Actuated |
| Manufacturer | C&K |
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Operating Temperature | -40°C ~ 90°C |
| Actuator Height off PCB, Vertical | 4.70mm |
| Actuator Type | Standard |
| Outline | 7.40mm x 7.40mm |
| Mechanical Life | 100,000 Cycles |
| Switch Function | Off-Mom |
| Part Status | Active |
