| KP0115ACBKG03CJB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

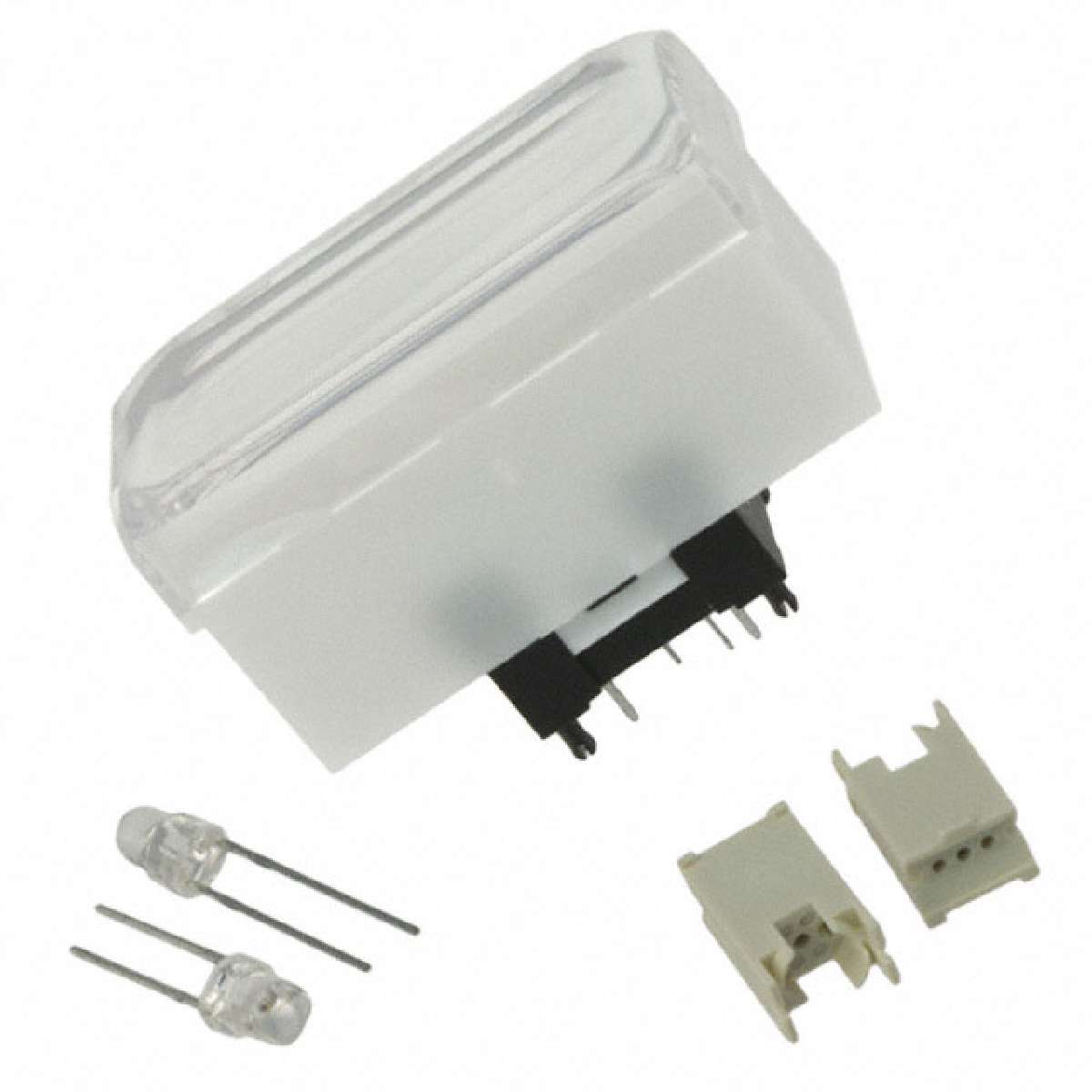

KP Series SPST Off-Momentary Mini Audio / Video Pushbutton Switch Through Hole
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Illumination Voltage (Nominal) | 2 VDC |
|---|---|
| Actuator Type | Rectangular, Button |
| Type | Standard, Illuminated |
| Voltage Rating - DC | 12V |
| Part Status | Active |
| Electrical Life | 5,000,000 Cycles |
| Manufacturer | NKK Switches |
| Series | KP |
| Family | Pushbutton Switches |
| Operating Temperature | -25°C ~ 50°C |
| Current Rating | 100mA (DC) |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Features | Tactile Feedback |
| Illumination Type, Color | LED, Red |
| Category | Switches |
| Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Mechanical Life | 1,000,000 Cycles |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| ECCN | EAR99 |
