| KB15CKW01-5C-CC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

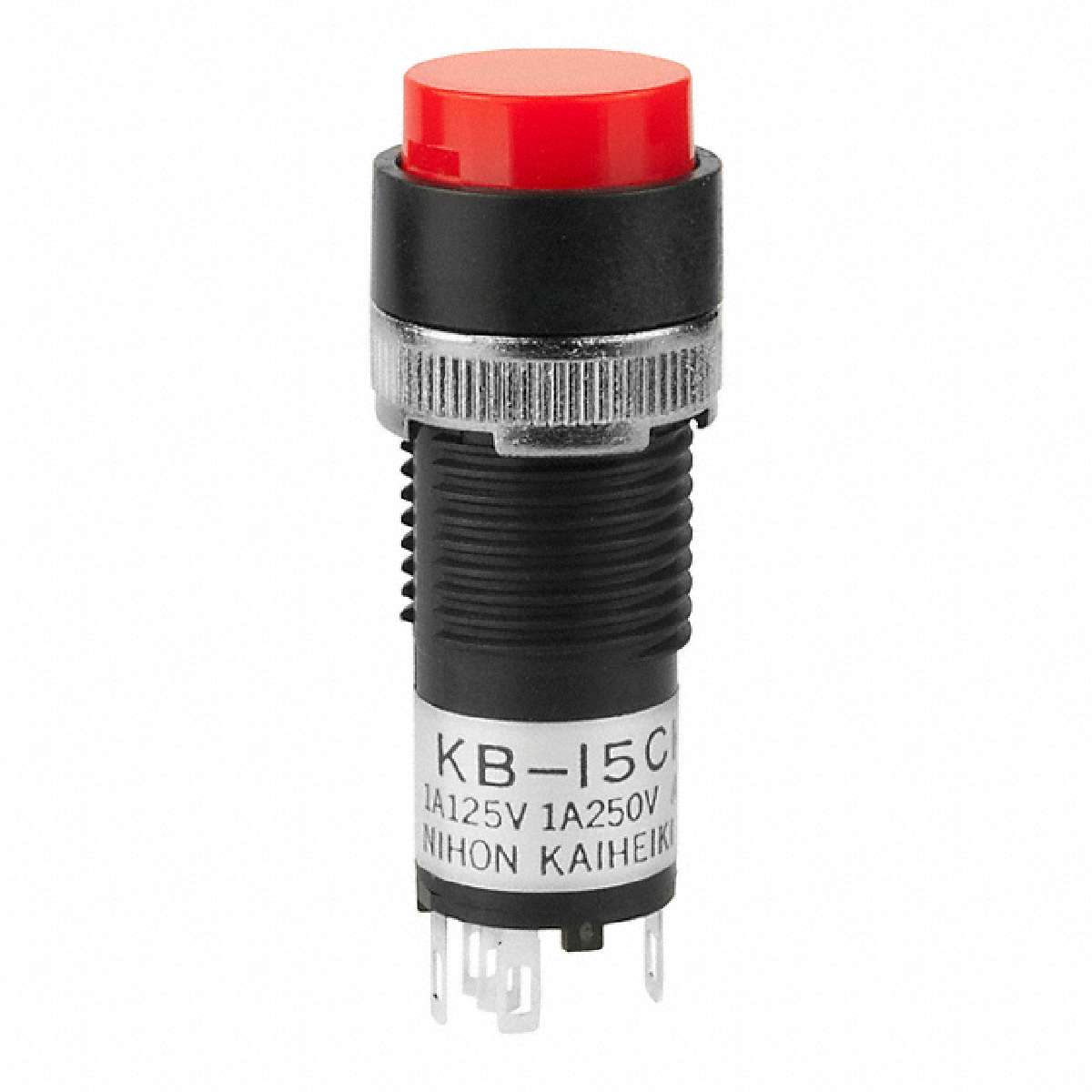

KB Series Mini SPDT On-Momentary Panel Mount Solder Lug Push Button Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Bulk |
|---|---|
| Terminal Seal: | Epoxy |
| Actuator: | Square |
| Voltage Rating AC: | 250 V |
| Contact Form: | SPDT |
| Brand: | NKK Switches |
| Termination Style: | Solder Lug |
| Product Category: | Illuminated Pushbutton Switches |
| Current Rating: | 1 A |
| Illumination: | LED |
| Life: | 50000 Cycles |
| ECCN | EAR99 |
| Housing Material: | Polyamide |
| Switch Function: | ON - (ON) |
| Manufacturer: | NKK Switches |
| Series: | KB |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| LED Size: | T-1 1/2 |
| Flammability Rating: | UL 94 V-0 |
| Contact Plating: | Silver |
| Illumination Color: | Red, Red |
| Mounting Style: | Panel |
