| KAS1104ET | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

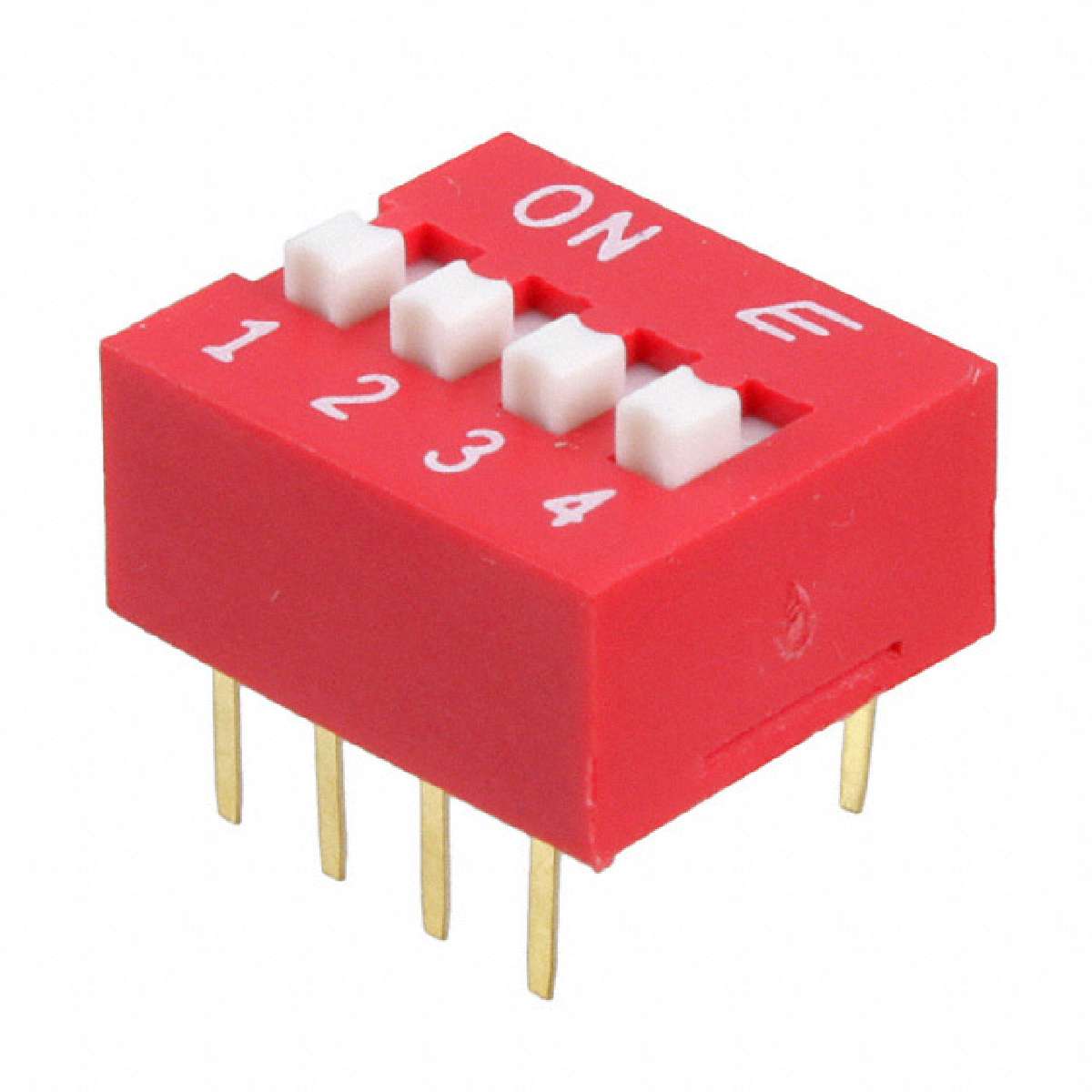

KAS Series SPST 4 Position Extended Actuator PC Slide DIP Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 2,000 Cycles |
| Washable | Yes |
| Packaging | Tube |
| Circuit | SPST |
| Features | Tape Seal |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 2,000 Cycles |
| Series | KAS |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| Contact Finish | Gold |
| Body Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Manufacturer | E-Switch |
| Mounting Type | Through Hole |
| Height Above Board | 0.275" (6.99mm) |
| Actuator Type | Slide (Standard) |
| Part Status | Active |
| Contact Material | Phosphor Bronze |
| Length | 0.454" (11.52mm) |
| Number of Positions | 4 |
| Family | DIP Switches |
| Current Rating | 25mA |
| ECCN | EAR99 |
