| KA278R12CTU | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

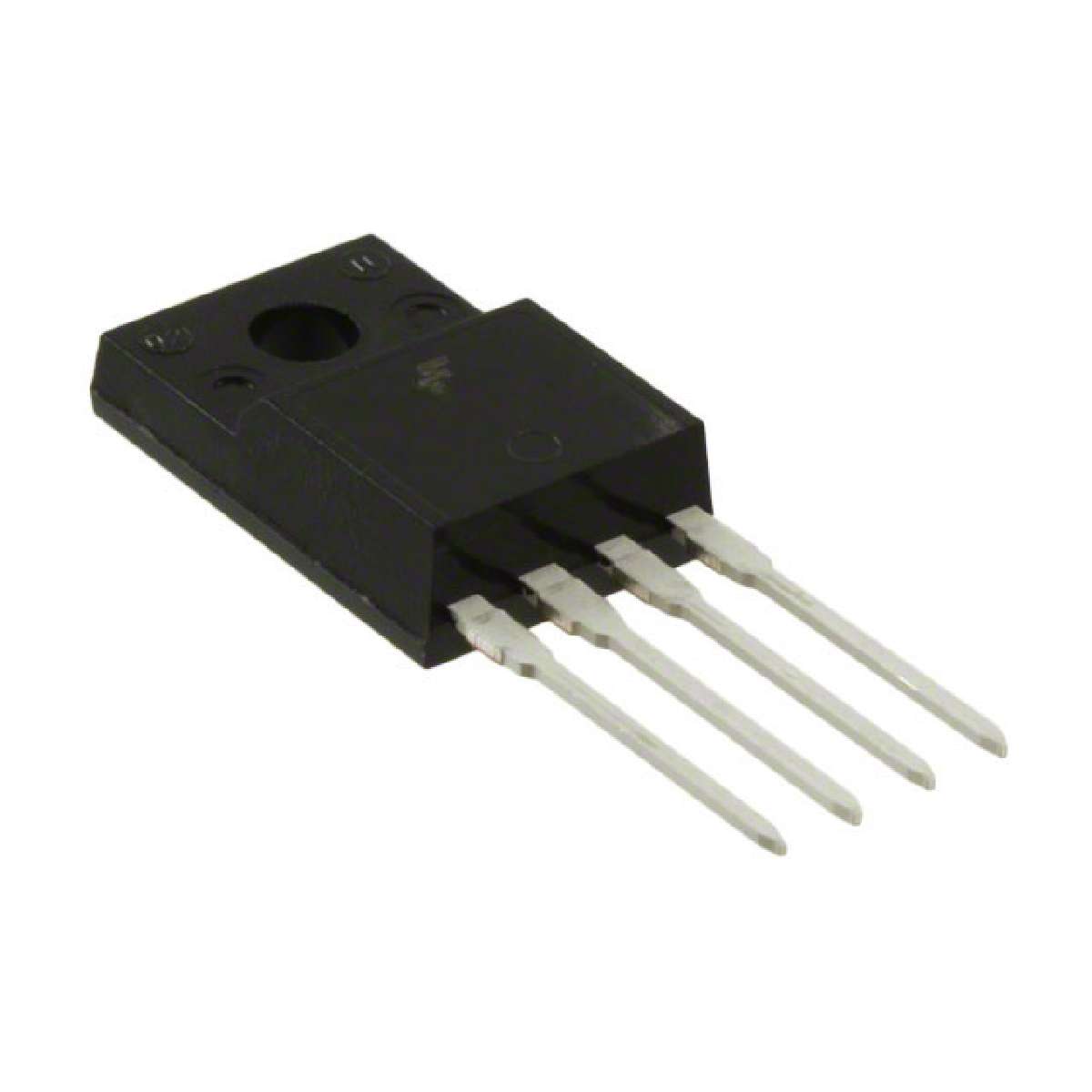

KA278RXXC-Series 13 - 29 Vin 2 A 12 Vo LDO Voltage Regulator - TO-220-4
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Output Voltage: | 12 V |
|---|---|
| Packaging: | Bulk |
| Pd - Power Dissipation: | 15 W |
| Height: | 9.2 mm |
| Mounting Style: | Through Hole |
| Output Current: | 2 A |
| Length: | 10 mm |
| Output Type: | Fixed |
| Number of Outputs: | 1 Output |
| Factory Pack Quantity: | 1000 |
| Part # Aliases: | KA278R12CTU_NL |
| Quiescent Current: | 10 mA |
| Dropout Voltage: | 500 mV |
| Input Voltage MIN: | + 13 V |
| ECCN | EAR99 |
| Width: | 4.5 mm |
| Minimum Operating Temperature: | - 20 C |
| Package / Case: | TO-220-4 |
| Unit Weight: | 0.099790 oz |
| Polarity: | Positive |
| Line Regulation: | 2.5 % |
| Manufacturer: | Fairchild Semiconductor |
| Load Regulation: | 0.1 % |
| Dropout Voltage - Max: | 500 mV at 2 A |
| Brand: | Fairchild Semiconductor |
| RoHS: | Details |
| Product Category: | LDO Voltage Regulators |
| Input Voltage MAX: | 29 V |
| Maximum Operating Temperature: | + 80 C |
