| JWL22RAA/UCV | ||
|---|---|---|
|
|
||
|
||

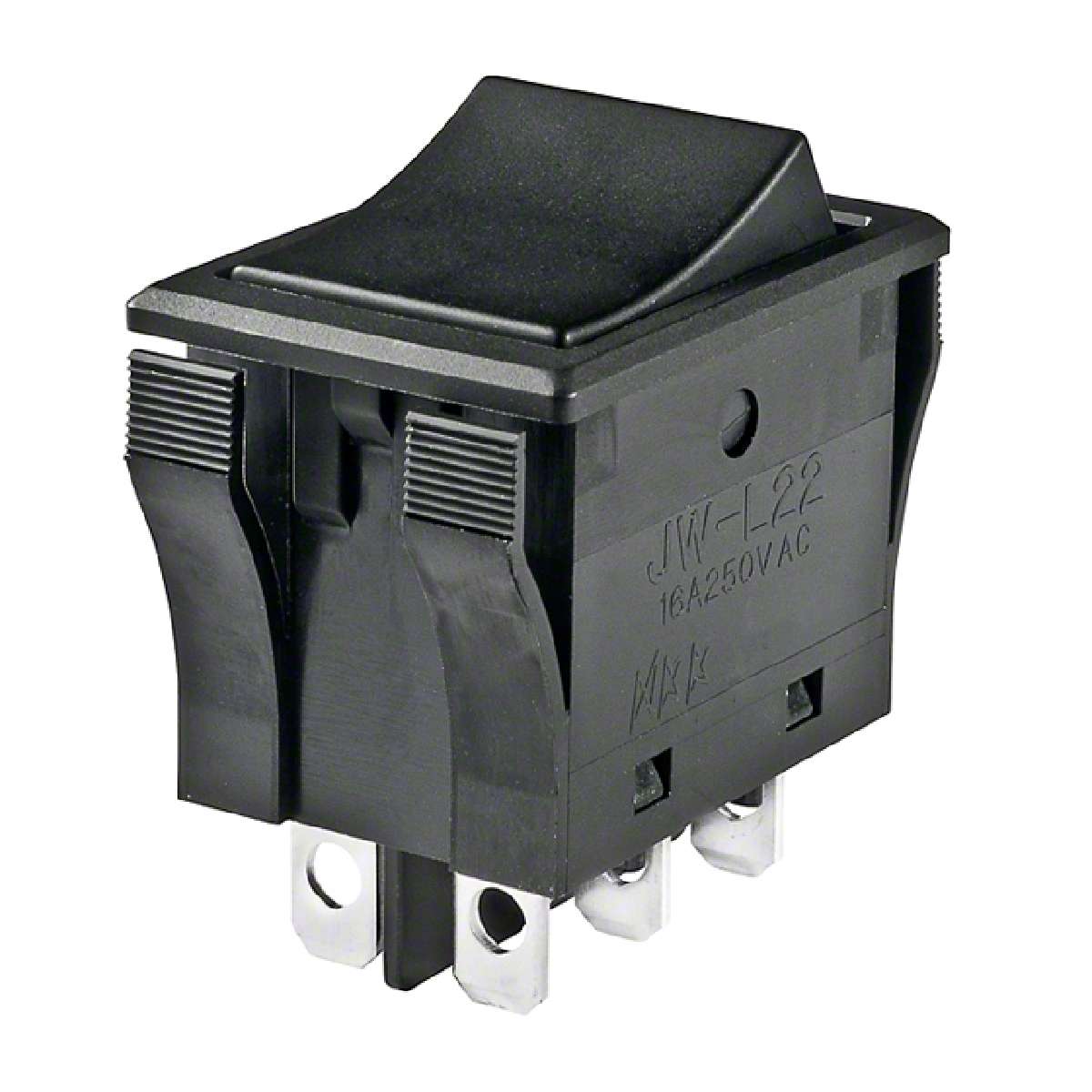

| Product description : SWITCH ROCKER DPDT 16A 125V | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Rating: | 16 A at 125 VAC, 250 VAC |
|---|---|
| Terminal Seal: | Epoxy |
| Actuator: | Rocker |
| Voltage Rating AC: | 250 V |
| Operating Temperature Range: | - 25 C to + 70 C |
| Contact Form: | DPDT |
| Brand: | NKK Switches |
| RoHS: | Details |
| Product Category: | Rocker Switches |
| Contact Plating: | Silver |
| ECCN | EAR99 |
| Housing Material: | Polyamide |
| Switch Function: | ON - ON |
| Manufacturer: | NKK Switches |
| Series: | JWL - Without Barrier |
| Voltage Rating DC: | 72 VDC |
| Factory Pack Quantity: | 1 |
| Part # Aliases: | JW-L22RKK-K1N |
| Termination Style: | Solder Lug |
| Current Rating: | 16 A |
| Mounting Style: | Panel |
