| JSM05000SAQN | ||
|---|---|---|
|
|
||
|
||

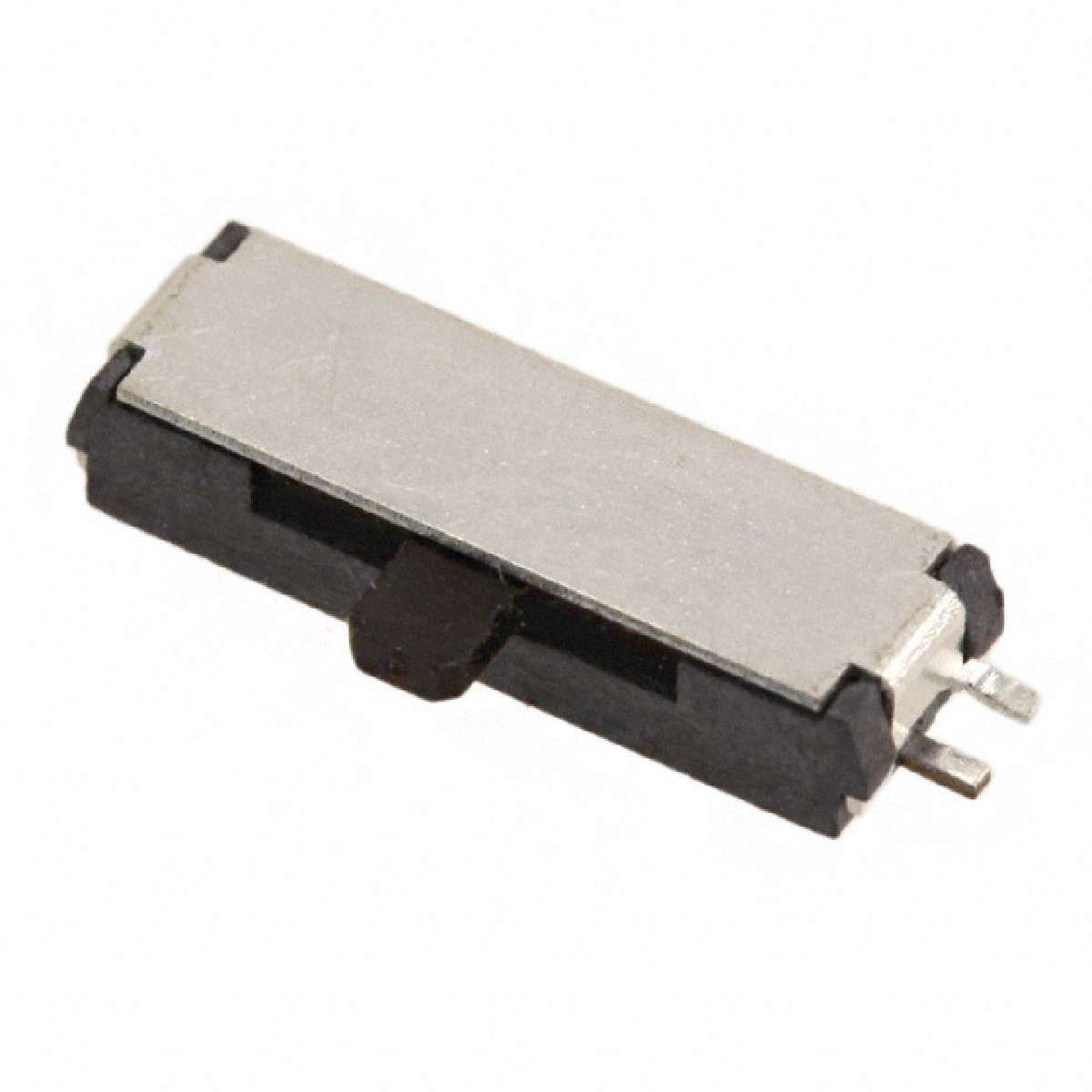

| Product description : JSM10 Series SP3T 4 V 300 mA Slide Switch | ||
| SPQ：2300 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Circuit | SP3T |
|---|---|
| Switch Function | Mom-On-Mom |
| Actuator Length | 1.50mm |
| Voltage Rating - DC | 4V |
| Electrical Life | 10,000 Cycles |
| Category | Switches |
| Switch Travel | 1.50mm |
| Family | Slide Switches |
| Operating Temperature | -30°C ~ 85°C |
| Packaging | Cut Tape (CT) |
| Current Rating | 300mA (DC) |
| Actuator Type | Standard |
| Contact Finish | Silver |
| Termination Style | Gull Wing |
| Part Status | Active |
| Manufacturer | C&K Components |
| Contact Material | Beryllium Copper |
| Series | JSM |
| Mounting Type | Surface Mount, Right Angle |
| Contact Timing | Not Specified |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| ECCN | EAR99 |
