| JS0208AP4-S | ||
|---|---|---|
|
|
||
|
||

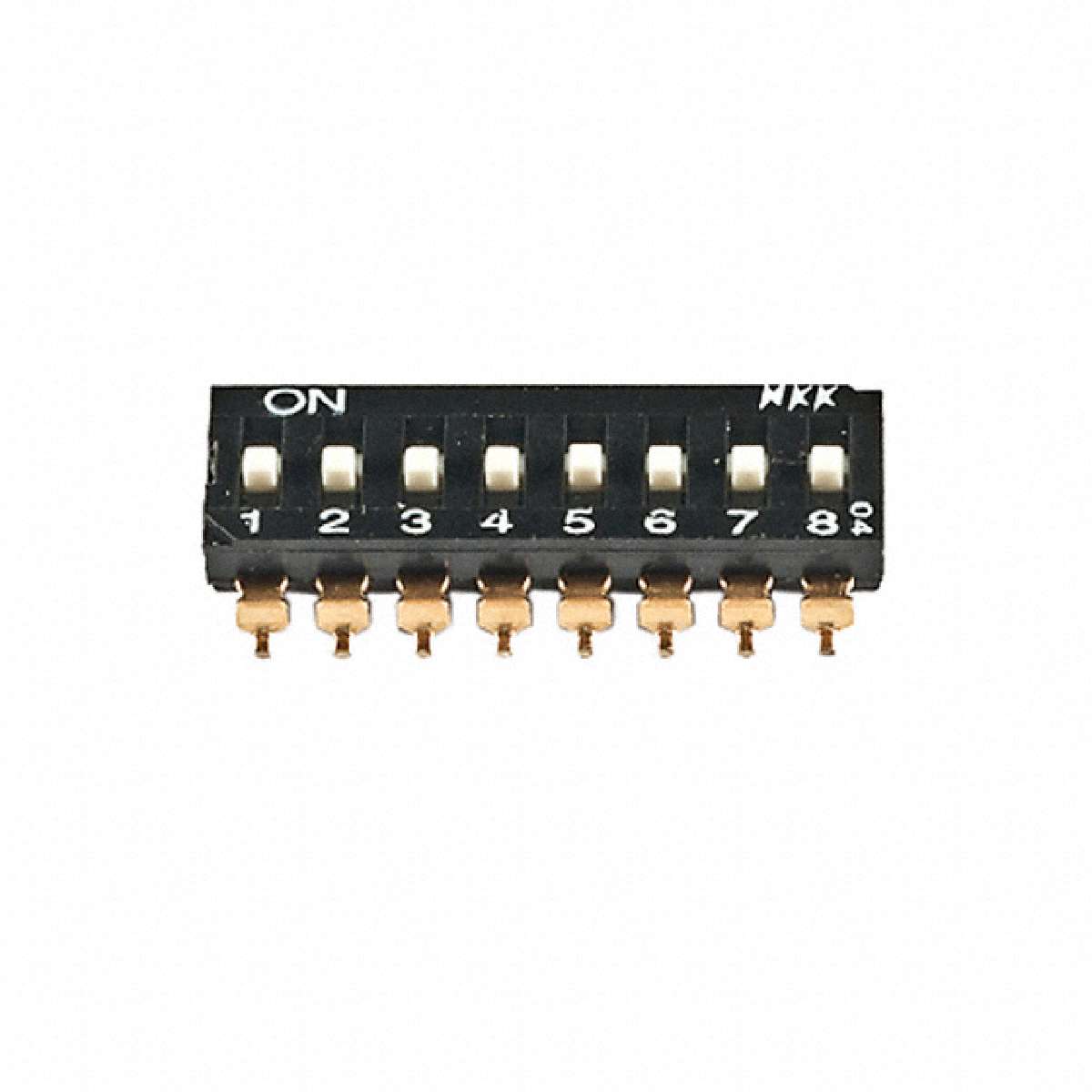

| Product description : JS02 Series SMT 8 Positions Slide Dip Switch | ||
| SPQ：24 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 24VDC |
|---|---|
| Termination Style | Gull Wing |
| Electrical Life | 2,000 Cycles |
| Washable | No |
| Packaging | Tube |
| Circuit | SPST |
| Part Status | Active |
| Contact Material | Beryllium Copper |
| Length | 0.837" (21.26mm) |
| Number of Positions | 8 |
| Family | DIP Switches |
| Current Rating | 25mA |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Body Material | Polyamide (PA), Nylon, Glass Filled |
| Manufacturer | NKK Switches |
| Mounting Type | Surface Mount |
| Height Above Board | 0.170" (4.33mm) |
| Actuator Type | Slide (Standard) |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 2,000 Cycles |
| Series | JS |
| Operating Temperature | -20°C ~ 70°C |
| Pitch | 0.100" (2.54mm), Full |
