| JF15SP1H | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

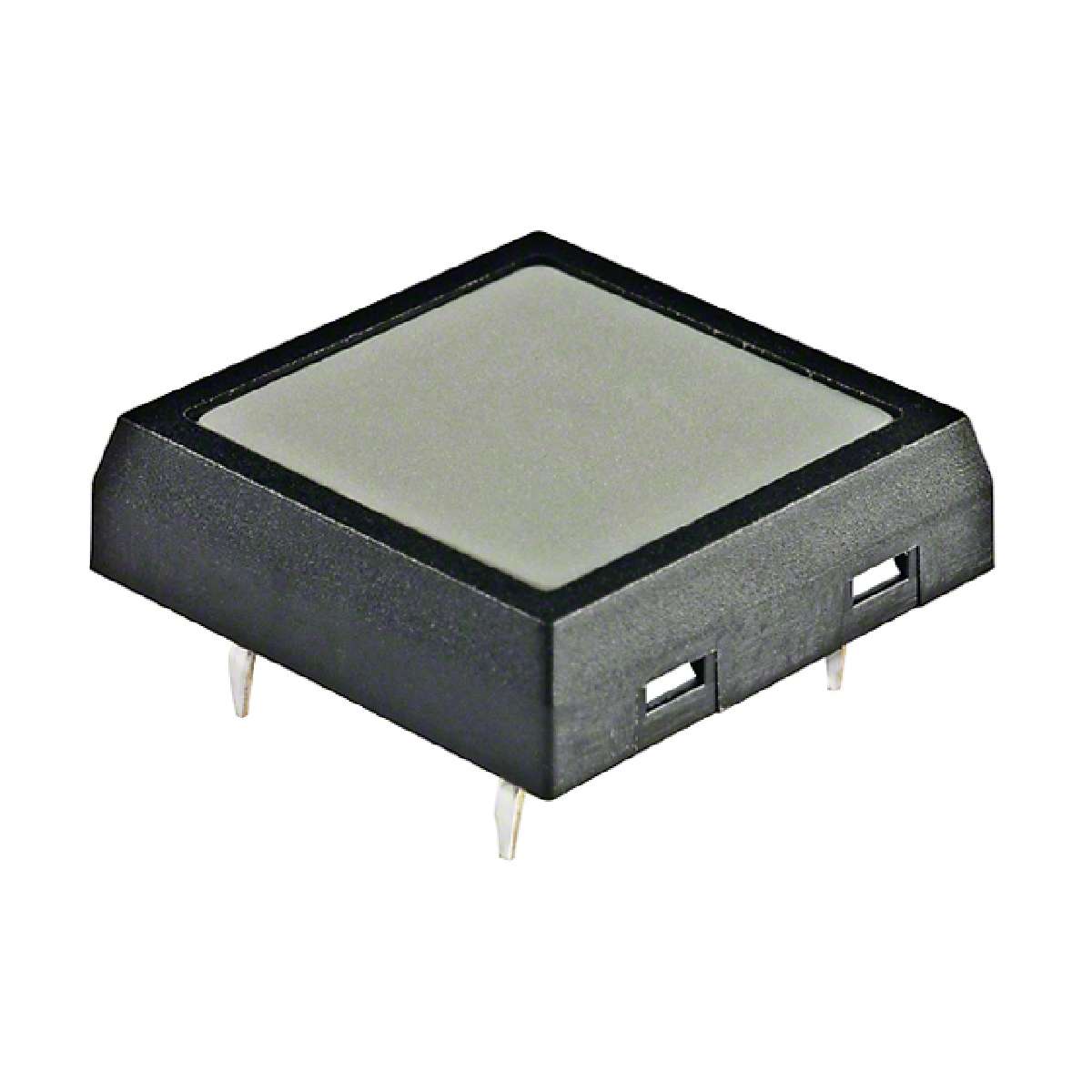

JF Series SPST PC Terminal Gray Actuator Ultra-Thin Tactile Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 17.7 mm |
|---|---|
| Operating Force: | 3 N |
| Operating Temperature Range: | - 25 C to + 85 C |
| Contact Plating: | Silver |
| Mounting Style: | Through Hole |
| Switch Function: | OFF - (ON) |
| Travel: | 0.4 mm |
| Series: | JF |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| RoHS: | Details |
| Product Category: | Tactile Switches |
| Ground Terminal: | No |
| Packaging: | Tray |
| Actuator: | Square |
| Contact Form: | SPST |
| Height: | 8.68 mm |
| Mounting Direction: | Straight |
| Length: | 17.7 mm |
| Manufacturer: | NKK Switches |
| Stem Height: | 3 mm |
| Voltage Rating DC: | 24 VDC |
| Part # Aliases: | JF-15SKSGNP2 |
| Termination Style: | Solder Pin |
| Current Rating: | 50 mA |
| ECCN | EAR99 |
