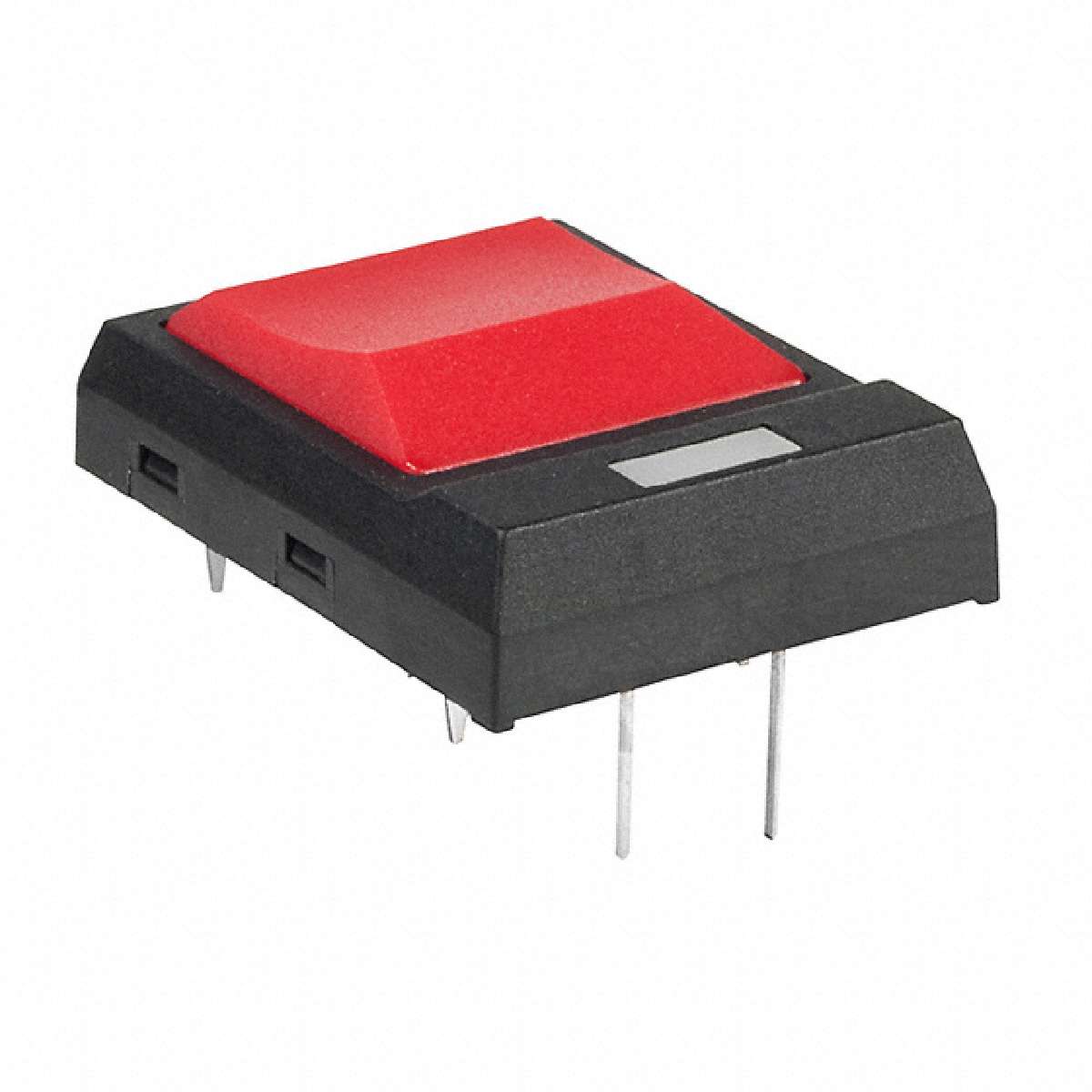

| JF15RP3CC | ||
|---|---|---|
|
|
||
|
||
| Product description : SPST-NO, 0.05A @ 24VDC , -25°C ~ 70°C , 22.80mm x 17.70mm Tactile Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Illumination Voltage (Nominal) | 1.7 VDC |
|---|---|
| Actuator Type | Square Button |
| Actuator Orientation | Top Actuated |
| Actuator Height off PCB, from Pins | 6.78mm |
| Features | Process Sealed |
| Illumination Type, Color | LED, Red |
| Category | Switches |
| Switch Travel | 0.80mm |
| Operating Force | 200gf |
| Family | Tactile Switches |
| Mounting Type | Through Hole |
| Packaging | Tray |
| ECCN | EAR99 |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Termination Style | PC Pin |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Illumination | Illuminated |
| Series | JF |
| Mechanical Life | 500,000 Cycles |
| Outline | 22.80mm x 17.70mm |
| Operating Temperature | -25°C ~ 70°C |
| Actuator Material | Polyamide (PA), Nylon |
