| JB15LPF-JB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

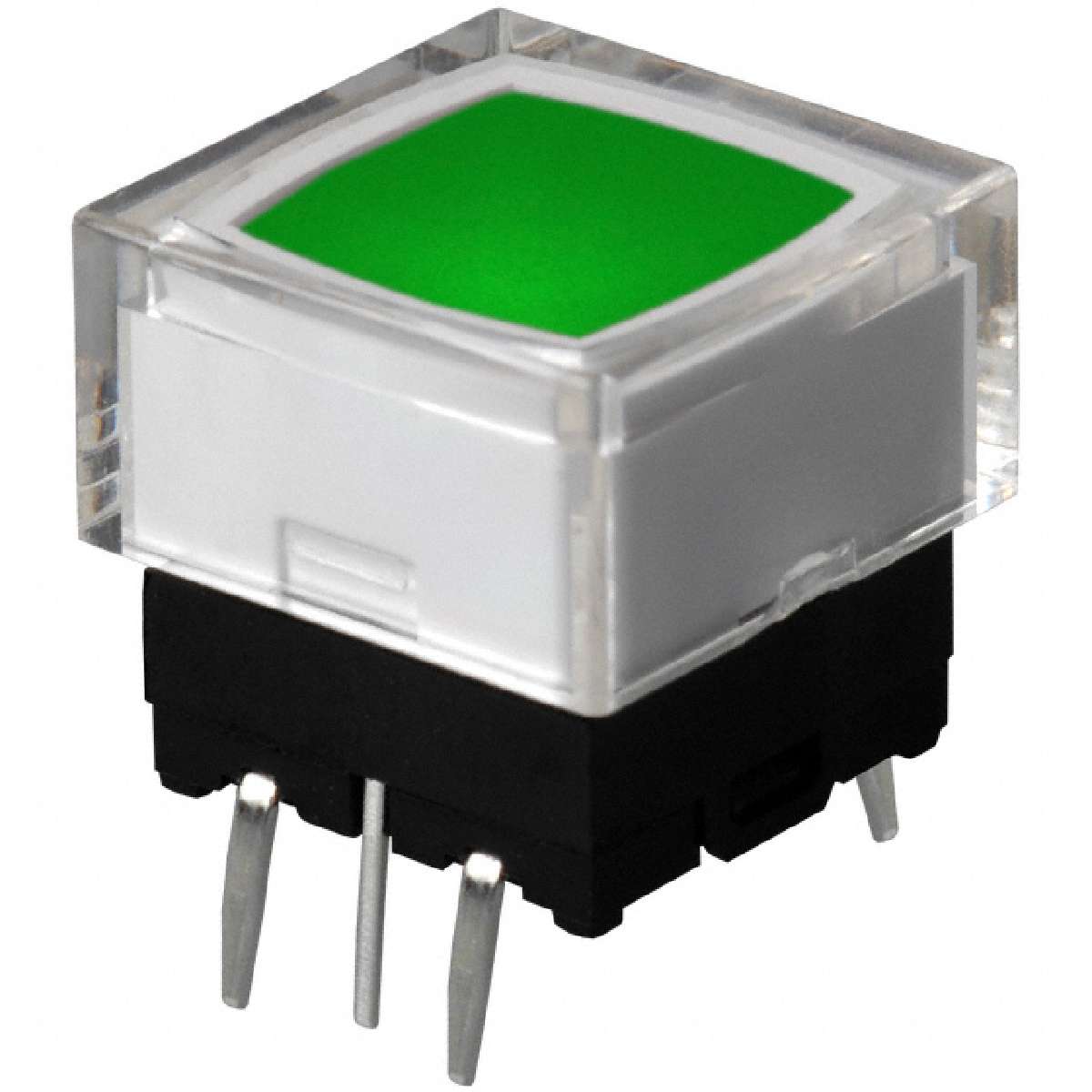

JB Series Sealed SPST 1.76 N Green LED Short Actuator Staight PC Tactile
|
||
| 标准包装：50 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 12 mm |
|---|---|
| Operating Force: | 1.8 N |
| Actuator: | Square |
| Series: | JB |
| Voltage Rating DC: | 24 VDC |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Product Category: | Illuminated Tactile Switches |
| Contact Plating: | Silver |
| Ground Terminal: | No |
| Mounting Style: | Through Hole |
| Packaging: | Tray |
| Length: | 12 mm |
| Manufacturer: | NKK Switches |
| Stem Height: | 3 mm |
| Contact Form: | SPST |
| Brand: | NKK Switches |
| Termination Style: | Solder Pin |
| Current Rating: | 50 mA |
| Illumination: | LED |
| Height: | 4.2 mm |
| ECCN | EAR99 |
