| JB15KP-2B | ||
|---|---|---|
|
|
||
|
||

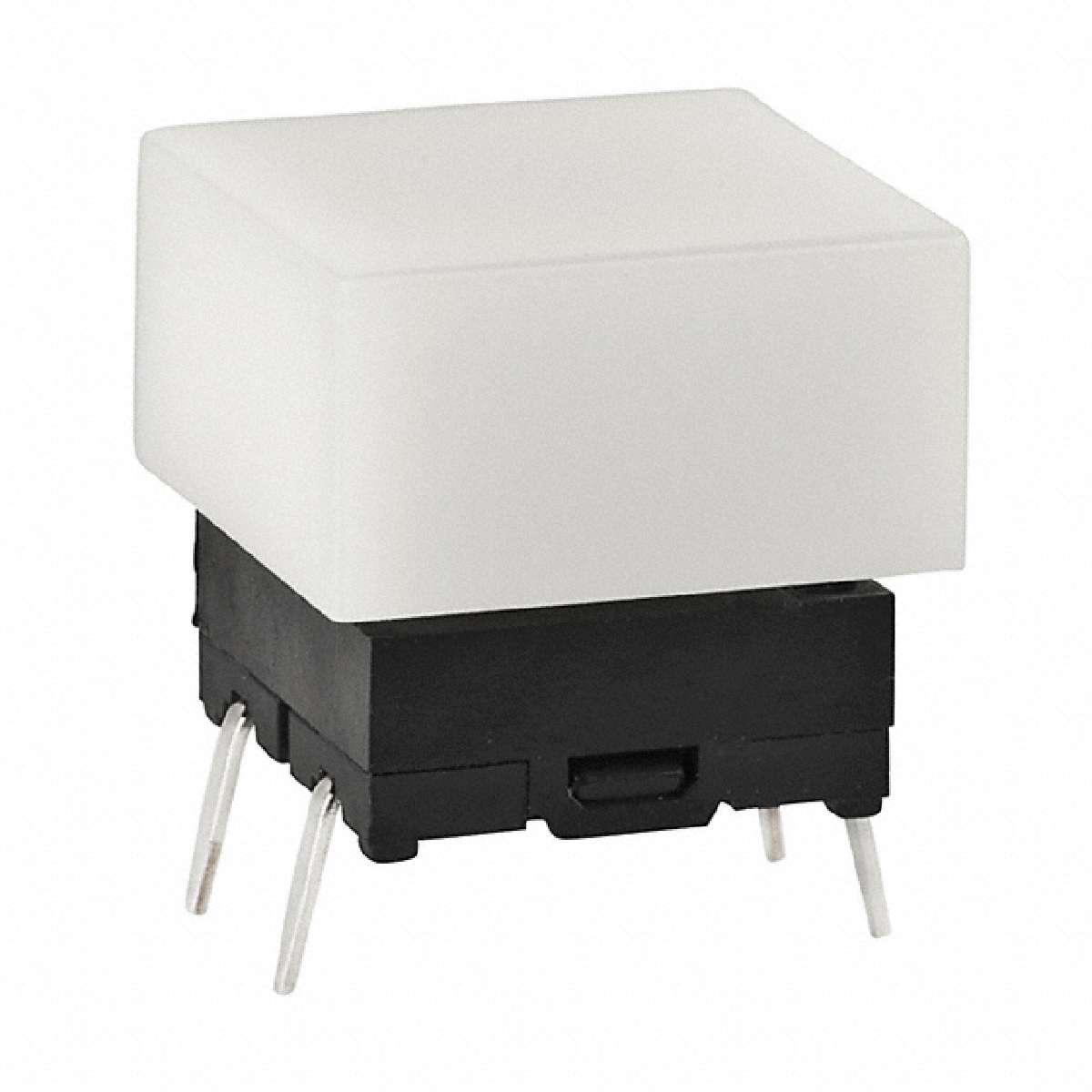

| Product description : JB Series Sealed SPST 1.76 N Short Actuator Snap On White Cap Staight PC Tactile | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Circuit | SPST-NO |
|---|---|
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Process Sealed |
| Manufacturer | NKK Switches |
| Illumination | Non-Illuminated |
| Series | JB |
| Mechanical Life | 5,000,000 Cycles |
| Outline | 10.00mm x 10.00mm |
| Operating Temperature | -25°C ~ 70°C |
| Actuator Material | Polyacetal |
| Actuator Type | Square Button |
| Actuator Orientation | Top Actuated |
| Actuator Height off PCB, from Pins | 11.20mm |
| Termination Style | PC Pin |
| Part Status | Active |
| Category | Switches |
| Switch Travel | 0.25mm |
| Operating Force | 176gf |
| Family | Tactile Switches |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| ECCN | EAR99 |
