| JB15HLPF | ||
|---|---|---|
|
|
||
|
||

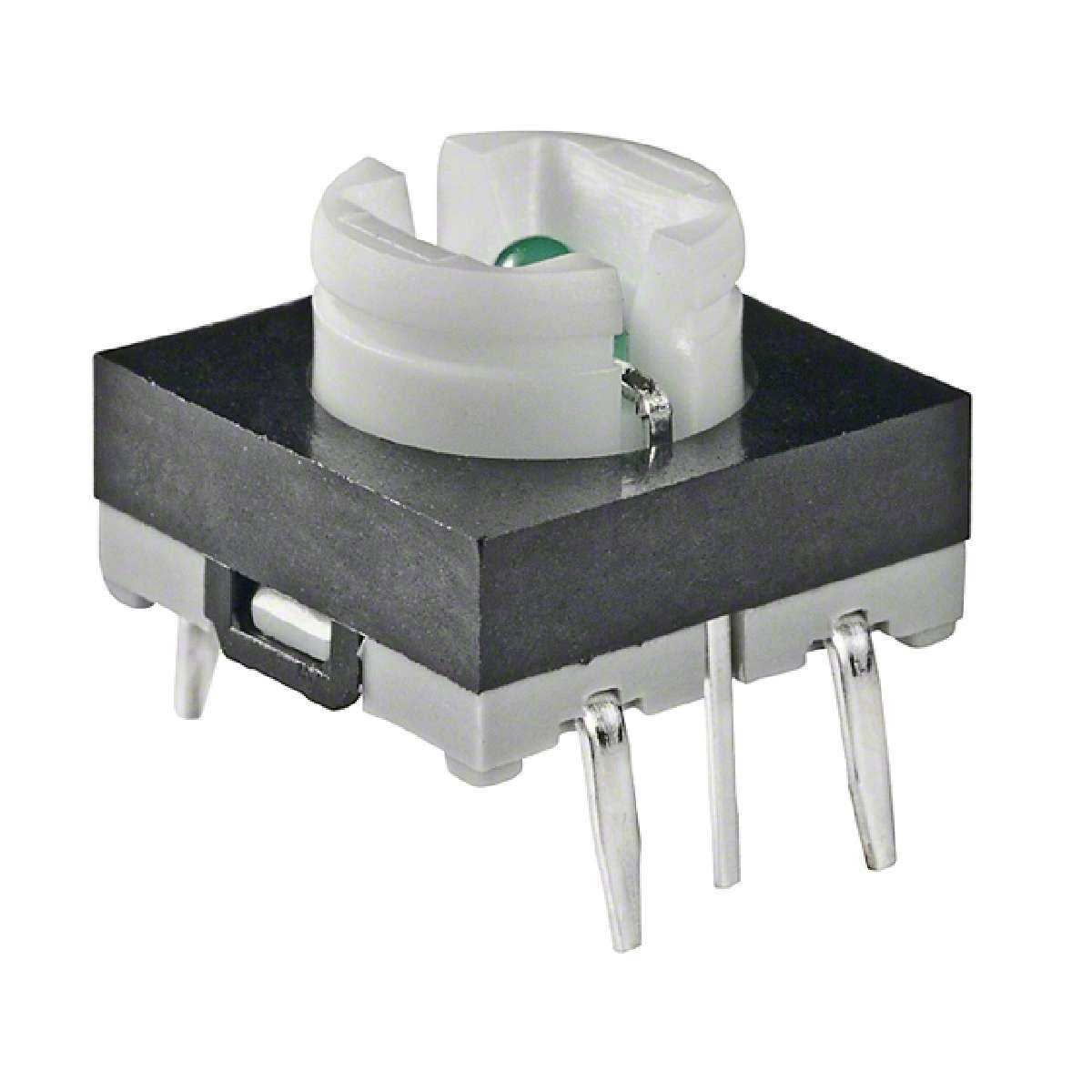

| Product description : JB Series Sealed SPST 2.65 N Green LED Short Actuator Staight PC Tactile | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width: | 10 mm |
|---|---|
| Operating Force: | 2.7 N |
| Operating Temperature Range: | - 25 C to + 70 C |
| Illumination: | LED |
| Height: | 4.2 mm |
| Mounting Direction: | Straight |
| Length: | 10 mm |
| Manufacturer: | NKK Switches |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| RoHS: | Details |
| Product Category: | Illuminated Tactile Switches |
| Ground Terminal: | No |
| Packaging: | Tray |
| Actuator: | Without Cap |
| Contact Form: | SPST |
| Contact Plating: | Silver |
| Mounting Style: | Through Hole |
| Switch Function: | OFF - (ON) |
| Travel: | 0.3 mm |
| Series: | JB |
| Voltage Rating DC: | 24 VDC |
| Part # Aliases: | JB-15HLMP2 |
| Termination Style: | Solder Pin |
| Current Rating: | 125 mA |
| ECCN | EAR99 |
