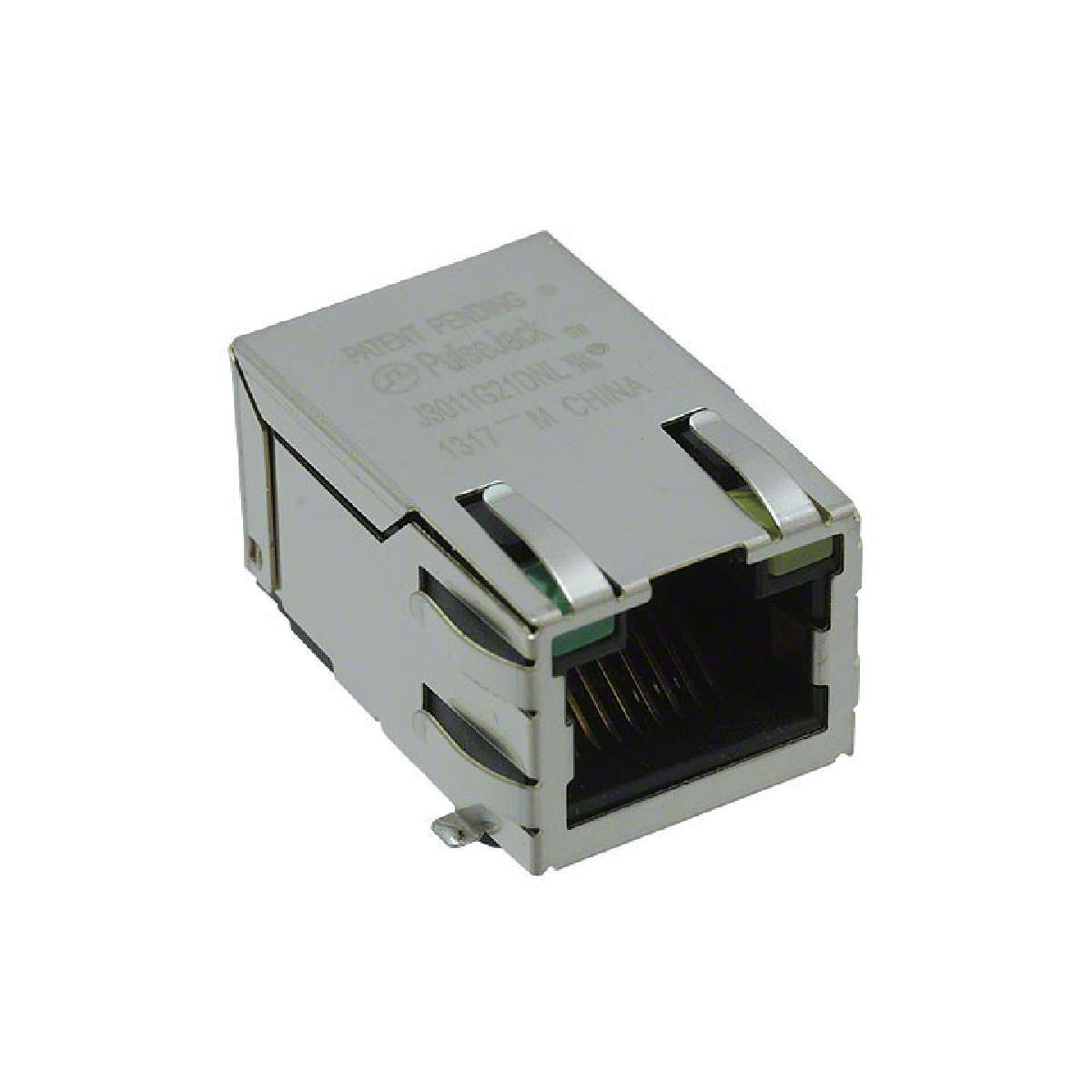

| J3011G21DNLT | ||
|---|---|---|
|
|
||
|
||
| Product description : CON-PB,CON-I/O RJ MAG L FEM,8,SMD90,AU.38,10 1.02MM,13.74MM | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Finish | Gold |
|---|---|
| Number of Cores per Jack | 4 |
| Housing Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Contact Finish Thickness | 30µin (0.76µm) |
| Height Above Board | 0.545" (13.84mm) |
| Number of Ports | 1 |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Contact Material | Phosphor Bronze |
| Family | Modular Connectors - Jacks With Magnetics |
| Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 |
| LED Color | Green - Yellow |
| Manufacturer | Pulse Electronics Corporation |
| Applications | 10/100 Base-TX, AutoMDIX |
| Shielding | Shielded |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Tab Direction | Up |
| Features | Board Guide |
| Category | Connectors, Interconnects |
| Series | PULSEJACK™ J3 |
| Shield Material | Brass |
| Connector Type | RJ45 |
| ECCN | ECL99 |
