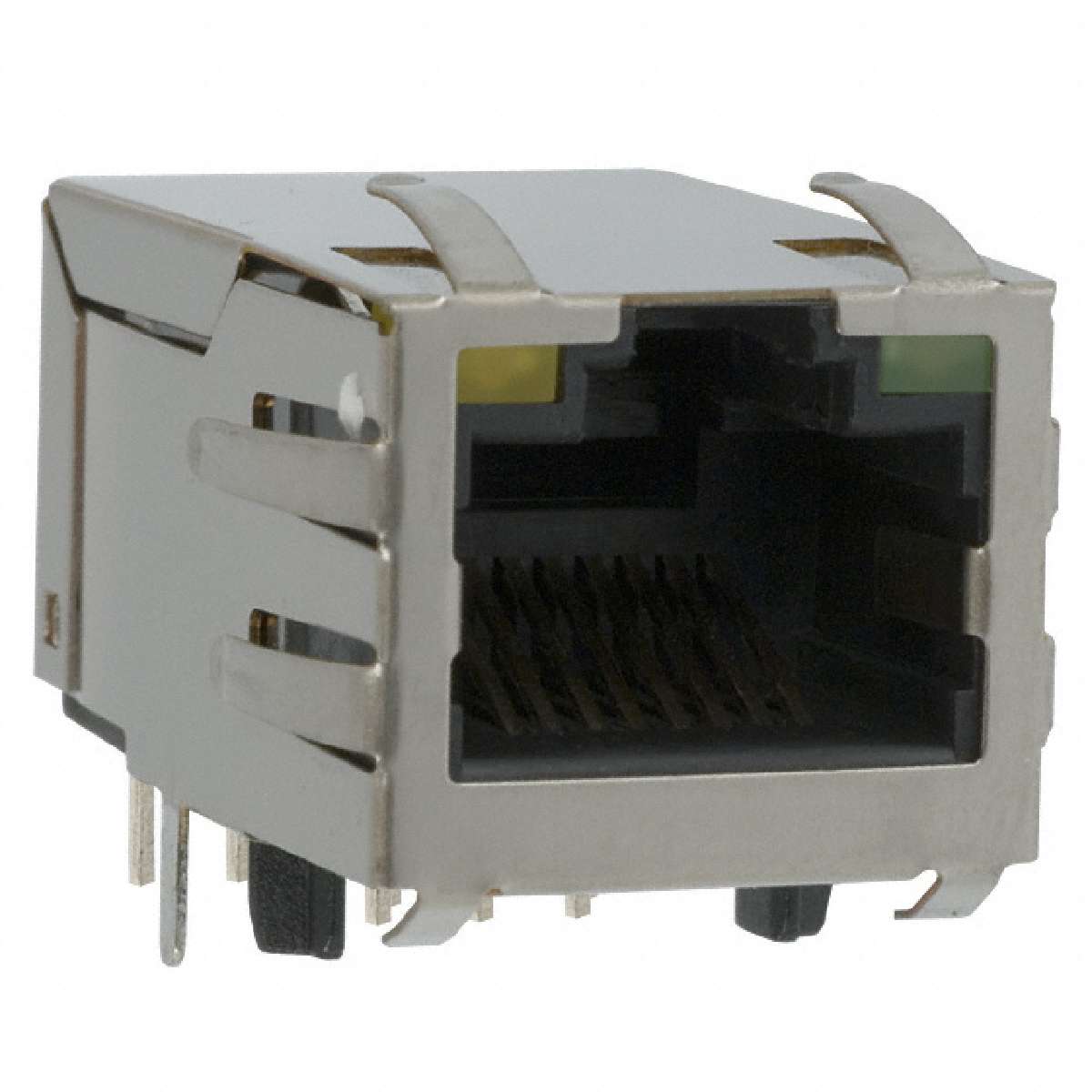

| J1026F21CNL | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
CONN MAGJACK 1PORT 100 BASE-TX
|
||
| 标准包装：25 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Finish | Gold |
|---|---|
| Number of Cores per Jack | 5 |
| Housing Material | Thermoplastic |
| Mounting Type | Through Hole |
| Contact Finish Thickness | 15µin (0.38µm) |
| Height Above Board | 0.550" (13.97mm) |
| Number of Ports | 1 |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Contact Material | Phosphor Bronze |
| Family | Modular Connectors - Jacks With Magnetics |
| Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 |
| LED Color | Yellow - Green |
| Manufacturer | Pulse Electronics Corporation |
| Applications | 10/100 Base-TX |
| Shielding | Shielded, EMI Finger |
| Packaging | Bulk |
| Termination | Solder |
| Tab Direction | Up |
| Features | Board Guide |
| Category | Connectors, Interconnects |
| Series | PULSEJACK™ J1 |
| Shield Material | Brass |
| Connector Type | RJ45 |
