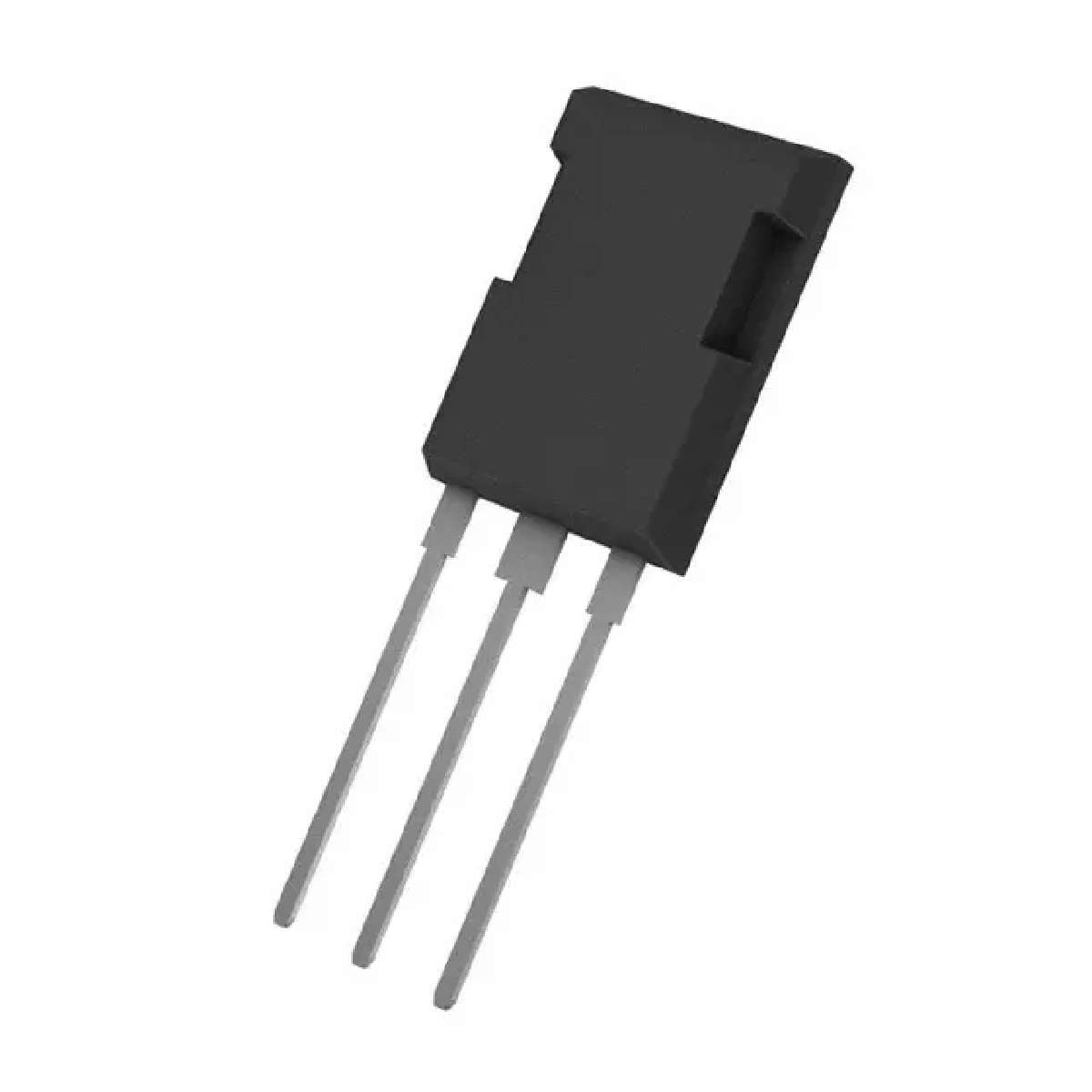

| IXYX140N90C3 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
IXYX140N90C3 900 Vce 140 A 40 ns t(on) GenX3 High-Speed IGBT - PLUS-247
|
||
| 标准包装：30 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Current - Collector Pulsed (Icm) | 840A |
|---|---|
| Power - Max | 1630W |
| Supplier Device Package | PLUS247™-3 |
| Current - Collector (Ic) (Max) | 310A |
| Category | Discrete Semiconductor Products |
| Gate Charge | 330nC |
| Series | GenX3™, XPT™ |
| Mounting Type | Through Hole |
| Switching Energy | 4.3mJ (on), 4mJ (off) |
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Test Condition | 450V, 100A, 1 Ohm, 15V |
| Td (on/off) @ 25°C | 40ns/145ns |
| Part Status | Active |
| Manufacturer | IXYS |
| Voltage - Collector Emitter Breakdown (Max) | 900V |
| Family | Transistors - IGBTs - Single |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 140A |
| Input Type | Standard |
| ECCN | EAR99 |
