| IXYH40N90C3D1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

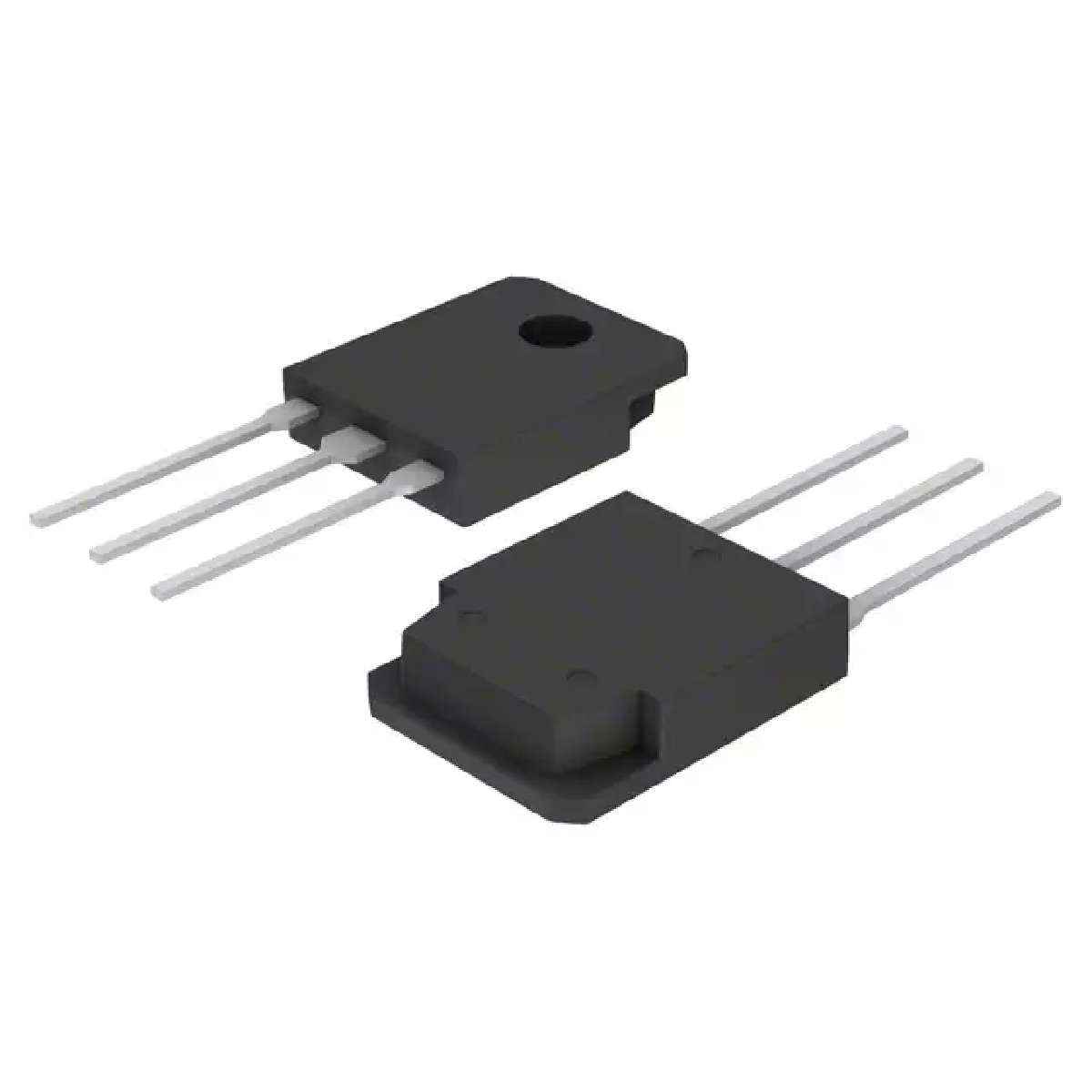

IXYH40N90C3D1 900 Vce 40 A 27 ns t(on) GenX3 High-Speed IGBT - TO-247-3
|
||
| 标准包装：30 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Collector-Emitter Saturation Voltage: | 2.2 V |
|---|---|
| Packaging: | Tube |
| Minimum Operating Temperature: | - 55 C |
| Pd - Power Dissipation: | 500 W |
| Gate-Emitter Leakage Current: | 100 nA |
| Height: | 21.46 mm |
| Mounting Style: | Through Hole |
| Continuous Collector Current Ic Max: | 180 A |
| Continuous Collector Current: | 90 A |
| Series: | IXYH40N90 |
| Brand: | IXYS |
| Collector- Emitter Voltage VCEO Max: | 900 V |
| Maximum Operating Temperature: | + 150 C |
| Width: | 5.3 mm |
| Continuous Collector Current at 25 C: | 90 A |
| Operating Temperature Range: | - 55 C to + 150 C |
| Tradename: | XPT, GenX3 |
| Package / Case: | TO-247AD-3 |
| Configuration: | Single |
| Unit Weight: | 0.158733 oz |
| Length: | 16.26 mm |
| Manufacturer: | IXYS |
| Factory Pack Quantity: | 30 |
| Product Category: | IGBT Transistors |
| Maximum Gate Emitter Voltage: | +/- 20 V |
| ECCN | EAR99 |
