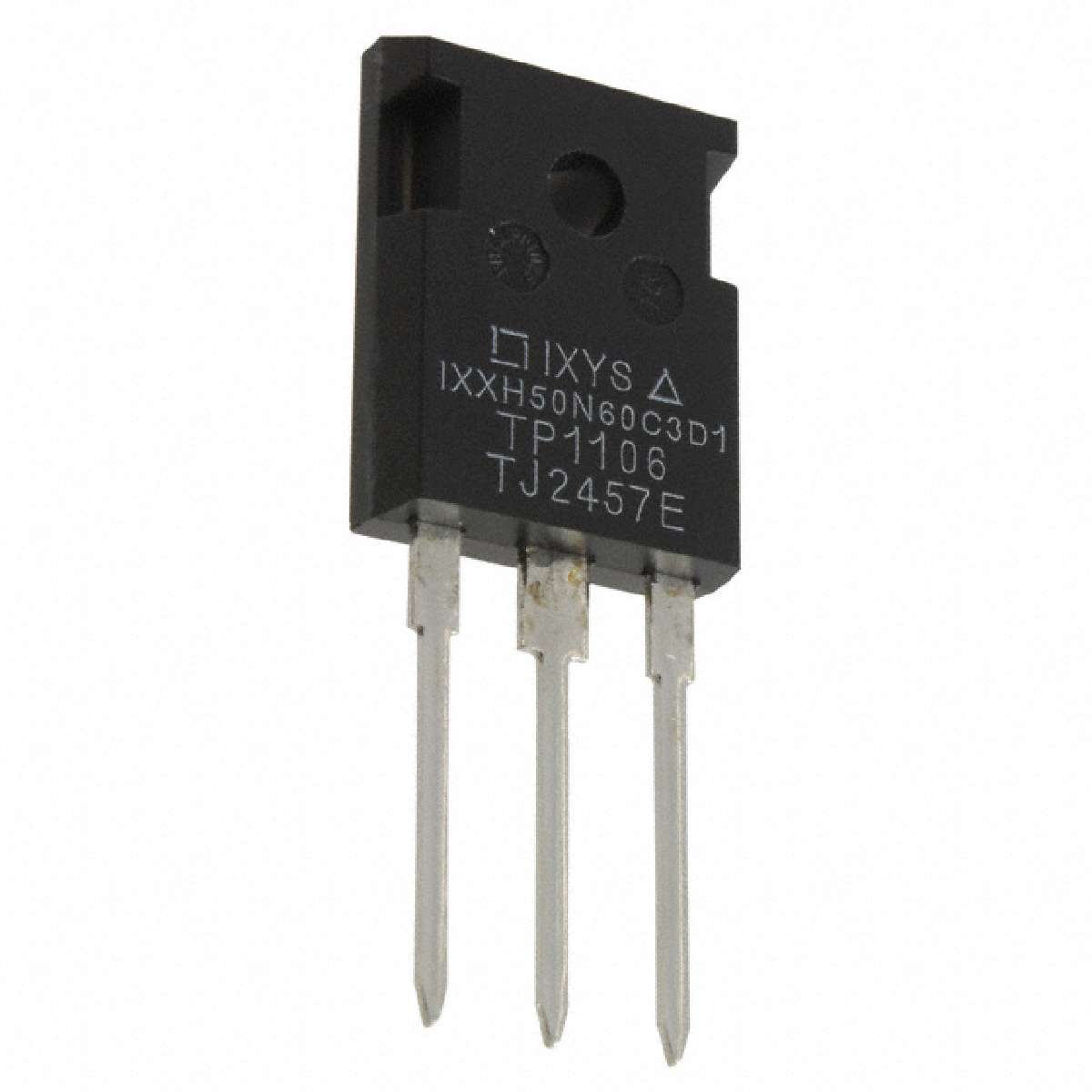

| IXXH50N60C3D1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Transistor: IGBT; GenX3™; 600V; 50A; 600W; TO247-3
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Current - Collector Pulsed (Icm) | 200A |
|---|---|
| Power - Max | 600W |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 24ns/62ns |
| Part Status | Active |
| Manufacturer | IXYS |
| Gate Charge | 64nC |
| Series | GenX3™, XPT™ |
| Mounting Type | Through Hole |
| Switching Energy | 720µJ (on), 330µJ (off) |
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Test Condition | 360V, 36A, 5 Ohm, 15V |
| Supplier Device Package | TO-247 (IXXH) |
| Current - Collector (Ic) (Max) | 100A |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 25ns |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Family | Transistors - IGBTs - Single |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 36A |
| Input Type | Standard |
| ECCN | EAR99 |
