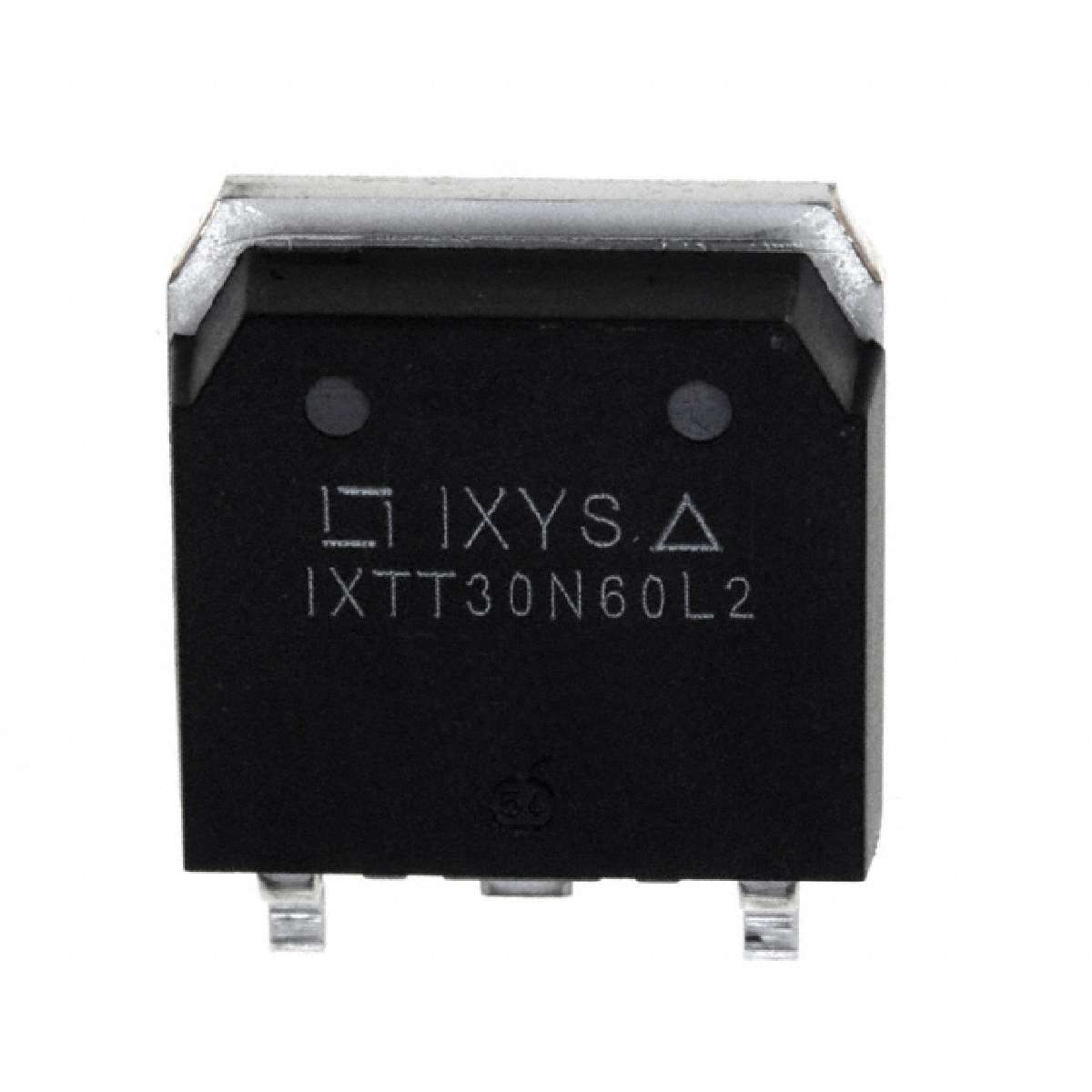

| IXTT30N60L2 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
N-Channel 600 V 30 A 240 mΩ Surface Mount Linear L2 Power Mosfet - TO-268
|
||
| 标准包装：30 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Linear L2 Power MOSFET |
|---|---|
| Rds On - Drain-Source Resistance: | 240 mOhms |
| Minimum Operating Temperature: | - 55 C |
| Technology: | Si |
| Vgs th - Gate-Source Threshold Voltage: | 4.5 V |
| Mounting Style: | SMD/SMT |
| Fall Time: | 43 ns |
| Forward Transconductance - Min: | 10 S, 18 S |
| Series: | IXTT30N60 |
| Factory Pack Quantity: | 30 |
| Brand: | IXYS |
| RoHS: | Details |
| Id - Continuous Drain Current: | 30 A |
| Rise Time: | 65 ns |
| Transistor Type: | 1 N-Channel |
| ECCN | EAR99 |
| Packaging: | Tube |
| Qg - Gate Charge: | 335 nC |
| Pd - Power Dissipation: | 540 W |
| Package / Case: | TO-268-2 |
| Unit Weight: | 0.229281 oz |
| Number of Channels: | 1 Channel |
| Typical Turn-On Delay Time: | 43 ns |
| Manufacturer: | IXYS |
| Transistor Polarity: | N-Channel |
| Channel Mode: | Enhancement |
| Typical Turn-Off Delay Time: | 123 ns |
| Product Category: | MOSFET |
| Vds - Drain-Source Breakdown Voltage: | 600 V |
| Type: | Linear L2 Power MOSFET with extended FBSOA |
| Maximum Operating Temperature: | + 150 C |
