| IXTT11P50 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

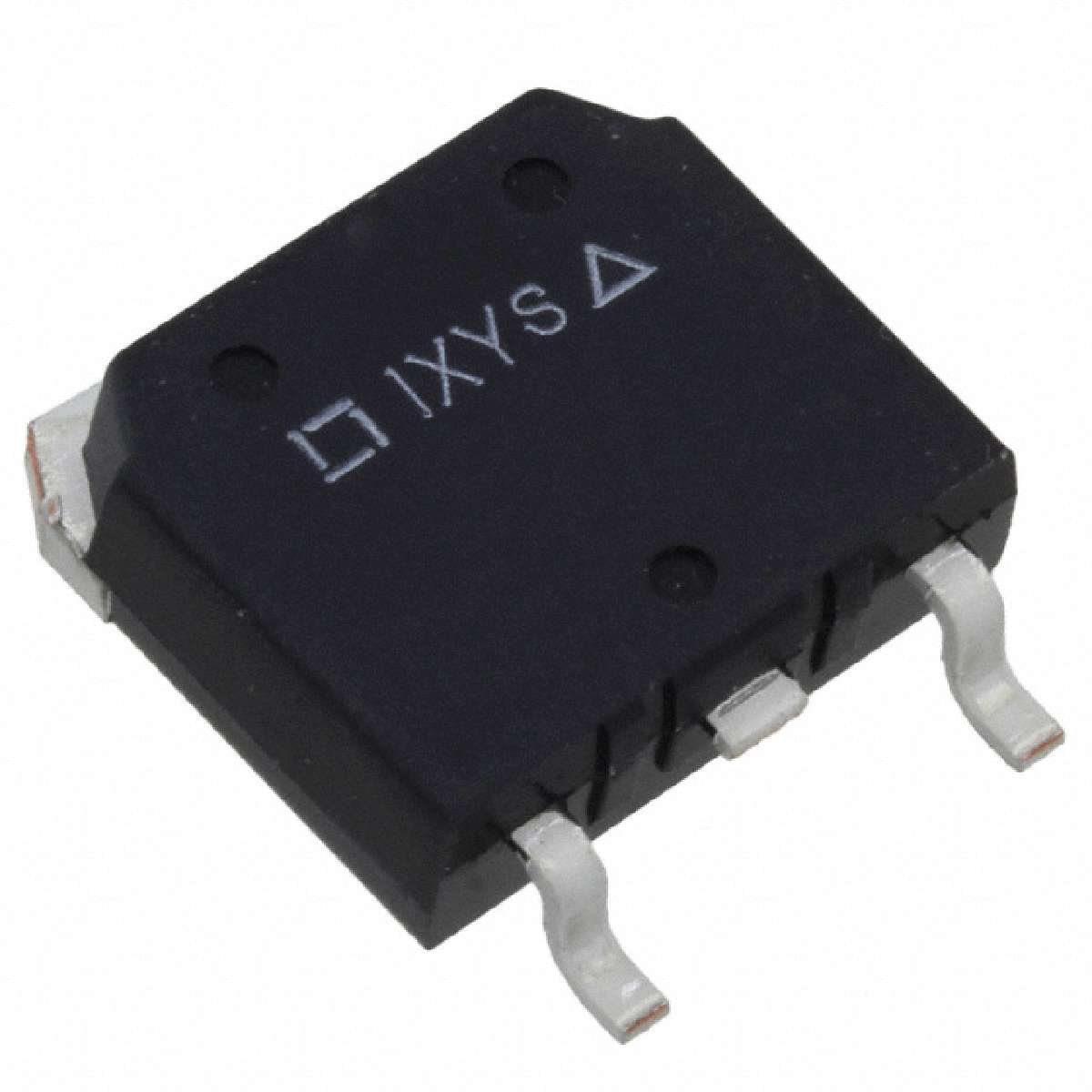

Transistor: P-MOSFET; unipolar; -500V; -11A; 300W; TO268; 500ns
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Standard |
|---|---|
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Part Status | Active |
| Manufacturer | IXYS |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 4700pF @ 25V |
| ECCN | EAR99 |
| Rds On (Max) @ Id, Vgs | 750 mOhm @ 5.5A, 10V |
| Power - Max | 300W |
| Supplier Device Package | TO-268 |
| Gate Charge (Qg) @ Vgs | 130nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET P-Channel, Metal Oxide |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Tube |
