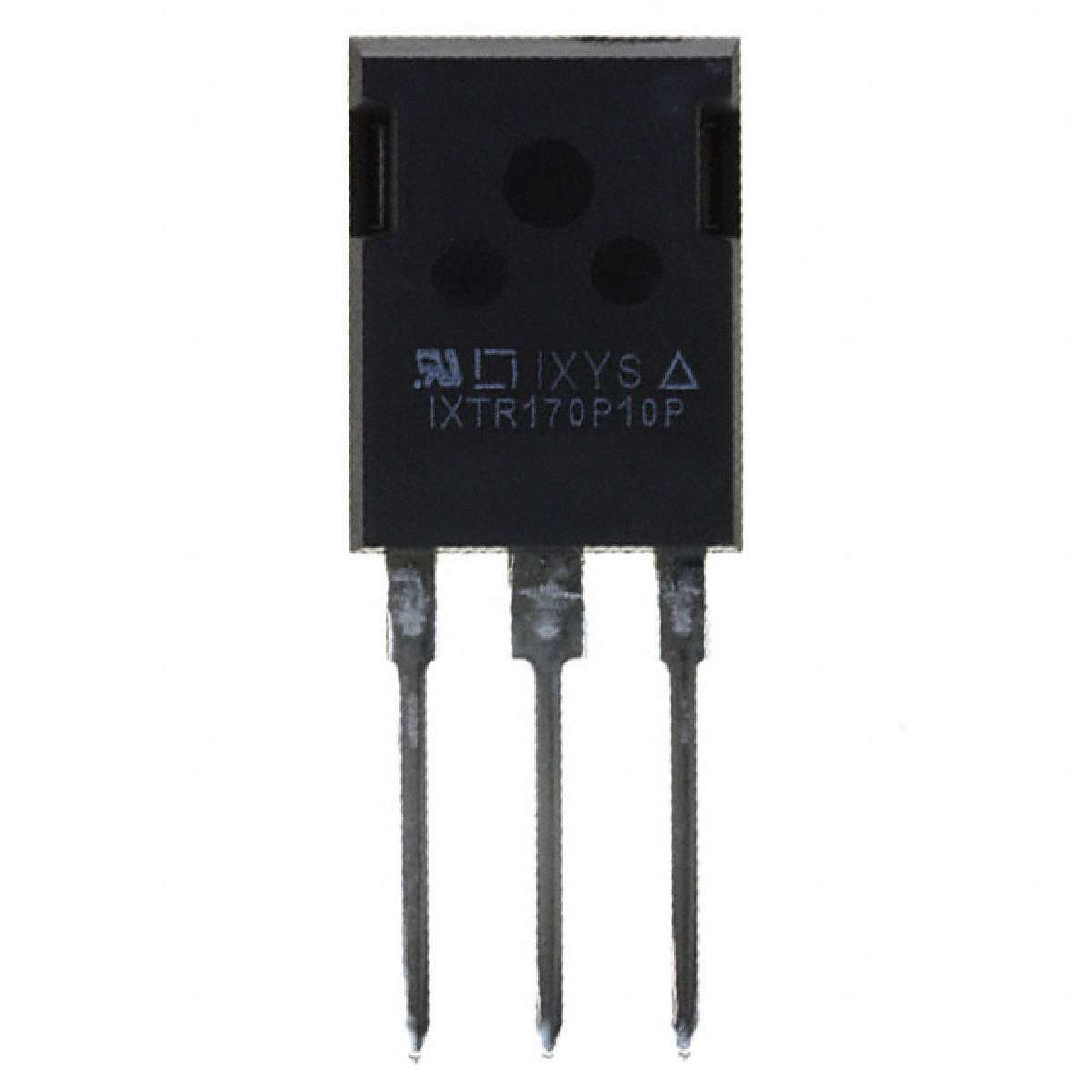

| IXTR170P10P | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
P-Channel 100 V 108 A 13 mΩ Through Hole PolarP Power Mosfet - ISOPLUS247
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 5.21 mm |
|---|---|
| Rds On - Drain-Source Resistance: | 13 mOhms |
| Minimum Operating Temperature: | - 55 C |
| Technology: | Si |
| Package / Case: | TO-247-3 |
| Height: | 21.34 mm |
| Unit Weight: | 0.186952 oz |
| Fall Time: | 45 ns |
| Length: | 16.13 mm |
| Manufacturer: | IXYS |
| Transistor Polarity: | P-Channel |
| Channel Mode: | Enhancement |
| Typical Turn-Off Delay Time: | 82 ns |
| Product Category: | MOSFET |
| Vds - Drain-Source Breakdown Voltage: | - 100 V |
| Type: | PolarP Power MOSFET |
| ECCN | EAR99 |
| Packaging: | Tube |
| Qg - Gate Charge: | 240 nC |
| Pd - Power Dissipation: | 312 W |
| Tradename: | PolarP |
| Vgs th - Gate-Source Threshold Voltage: | - 4 V |
| Vgs - Gate-Source Voltage: | 20 V |
| Mounting Style: | Through Hole |
| Typical Turn-On Delay Time: | 32 ns |
| Forward Transconductance - Min: | 35 S |
| Series: | IXTR170P10 |
| Factory Pack Quantity: | 30 |
| Brand: | IXYS |
| RoHS: | Details |
| Id - Continuous Drain Current: | - 108 A |
| Rise Time: | 75 ns |
| Maximum Operating Temperature: | + 150 C |
