| IXEL40N400 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

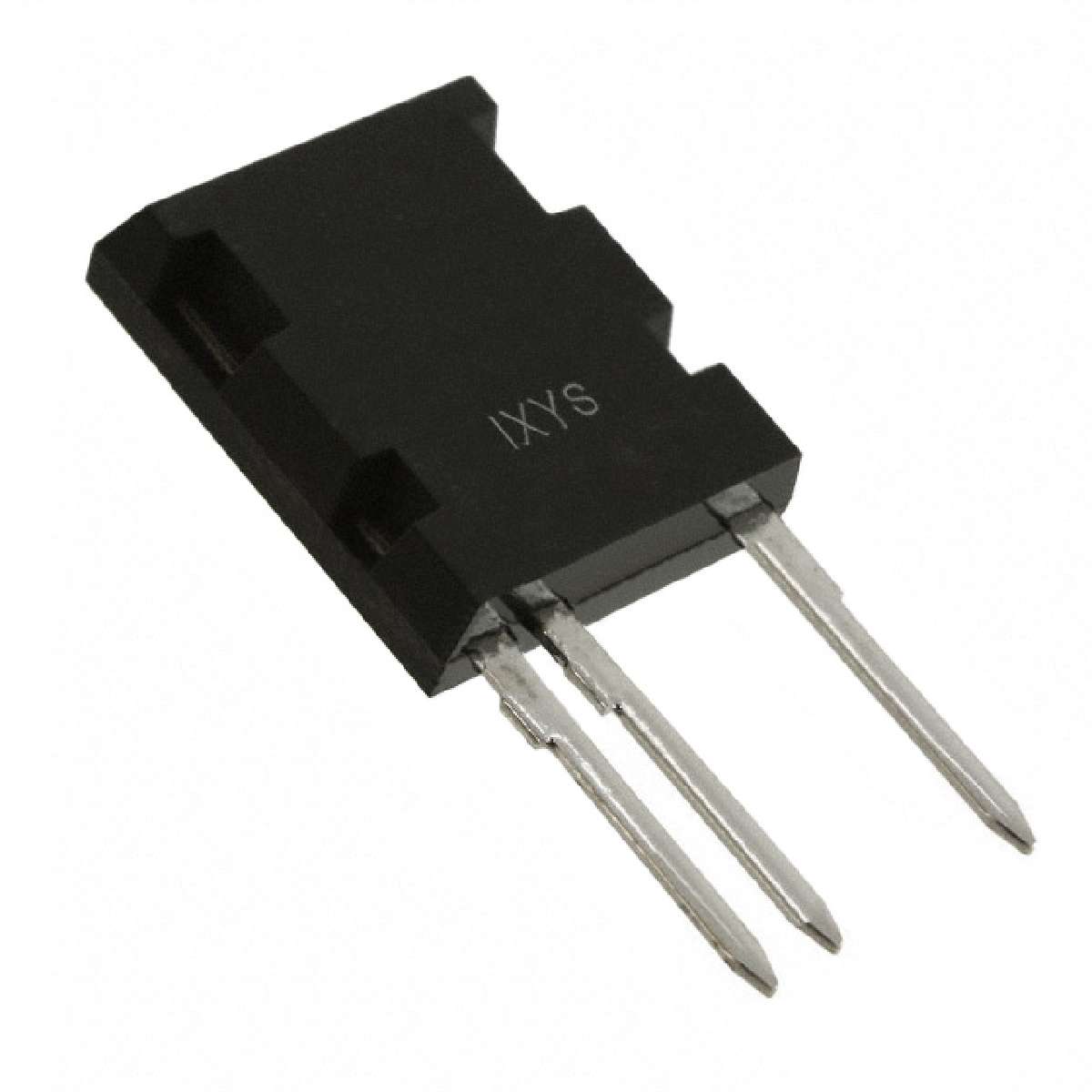

IXEL Series 4000 Vce 40 A 160 ns t(on) High Voltage IGBT - ISOPLUS i5-Pak
|
||
| 标准包装：25 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Current - Collector Pulsed (Icm) | 400A |
|---|---|
| Power - Max | 380W |
| Supplier Device Package | ISOPLUSi5-Pak™ |
| Current - Collector (Ic) (Max) | 90A |
| Category | Discrete Semiconductor Products |
| Gate Charge | 275nC |
| Family | Transistors - IGBTs - Single |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 40A |
| Input Type | Standard |
| ECCN | EAR99 |
| Package / Case | ISOPLUSi5-Pak™ |
| Test Condition | 2800V, 40A, 33 Ohm, 15V |
| Td (on/off) @ 25°C | 160ns/630ns |
| Part Status | Active |
| Manufacturer | IXYS |
| Voltage - Collector Emitter Breakdown (Max) | 4000V |
| Mounting Type | Through Hole |
| Switching Energy | 55mJ (on), 165mJ (off) |
| Packaging | Tube |
