| IXBOD1-15R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

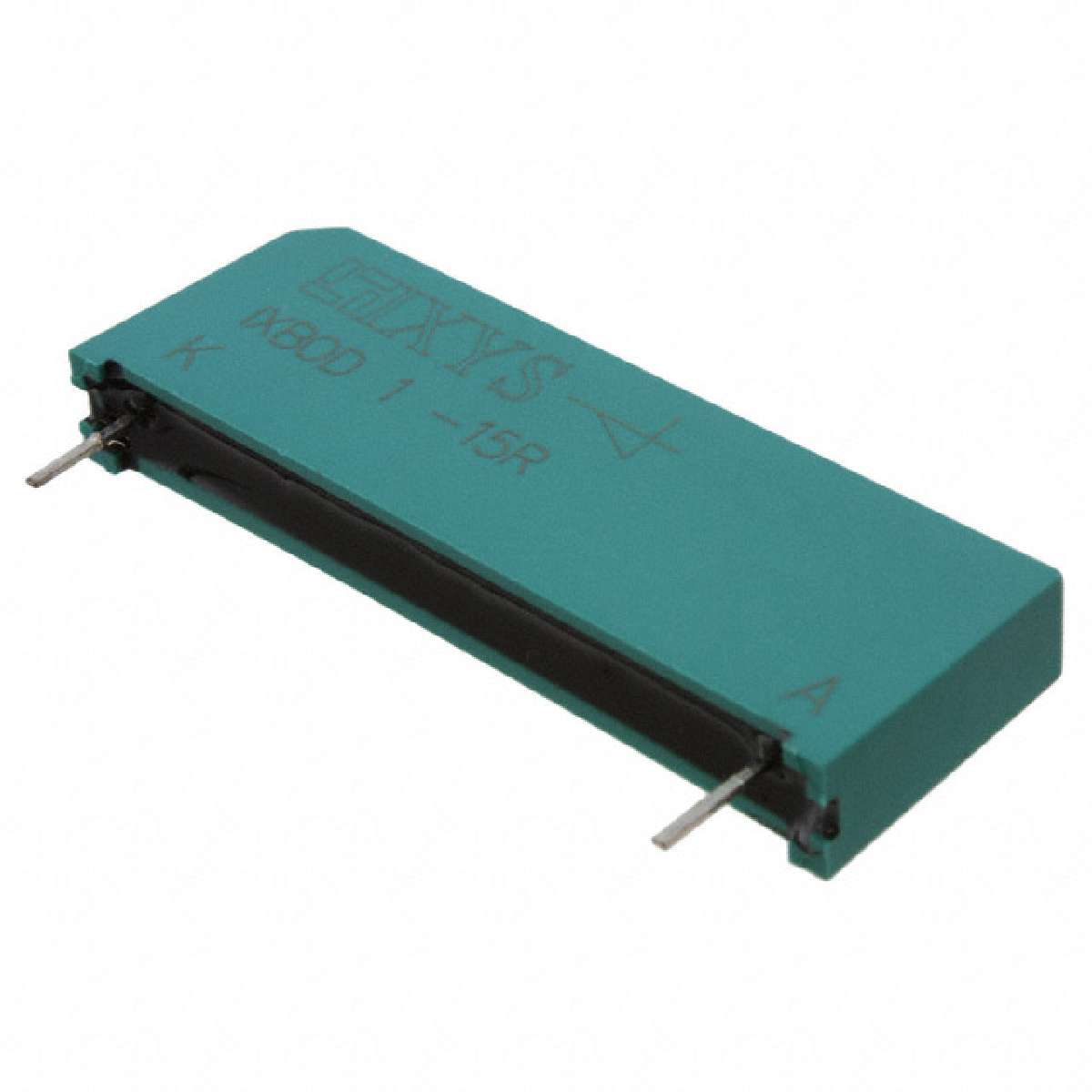

IXBOD1-15R Series 1500 V 1 A Through Hole SIDAC - BOD-2
|
||
| 标准包装：20 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Holding Current Ih Max: | 30 mA |
|---|---|
| Breakover Voltage VBO: | 1.5 kV |
| Breakover Current IBO Max: | 15 mA |
| Minimum Operating Temperature: | - 40 C |
| Non Repetitive On-State Current: | 200 A |
| Brand: | IXYS |
| RoHS: | Details |
| Product Category: | Sidacs |
| Mounting Style: | Through Hole |
| ECCN | EAR99 |
| Packaging: | Bulk |
| Manufacturer: | IXYS |
| Series: | IXBOD1-15 |
| Factory Pack Quantity: | 20 |
| On-State Voltage: | 3.4 V |
| Off-State Leakage Current @ VDRM IDRM: | 100 uA |
| Package / Case: | BOD-2 |
| Current Rating: | 1.25 A |
| Maximum Operating Temperature: | + 125 C |
