| IP82C54Z | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

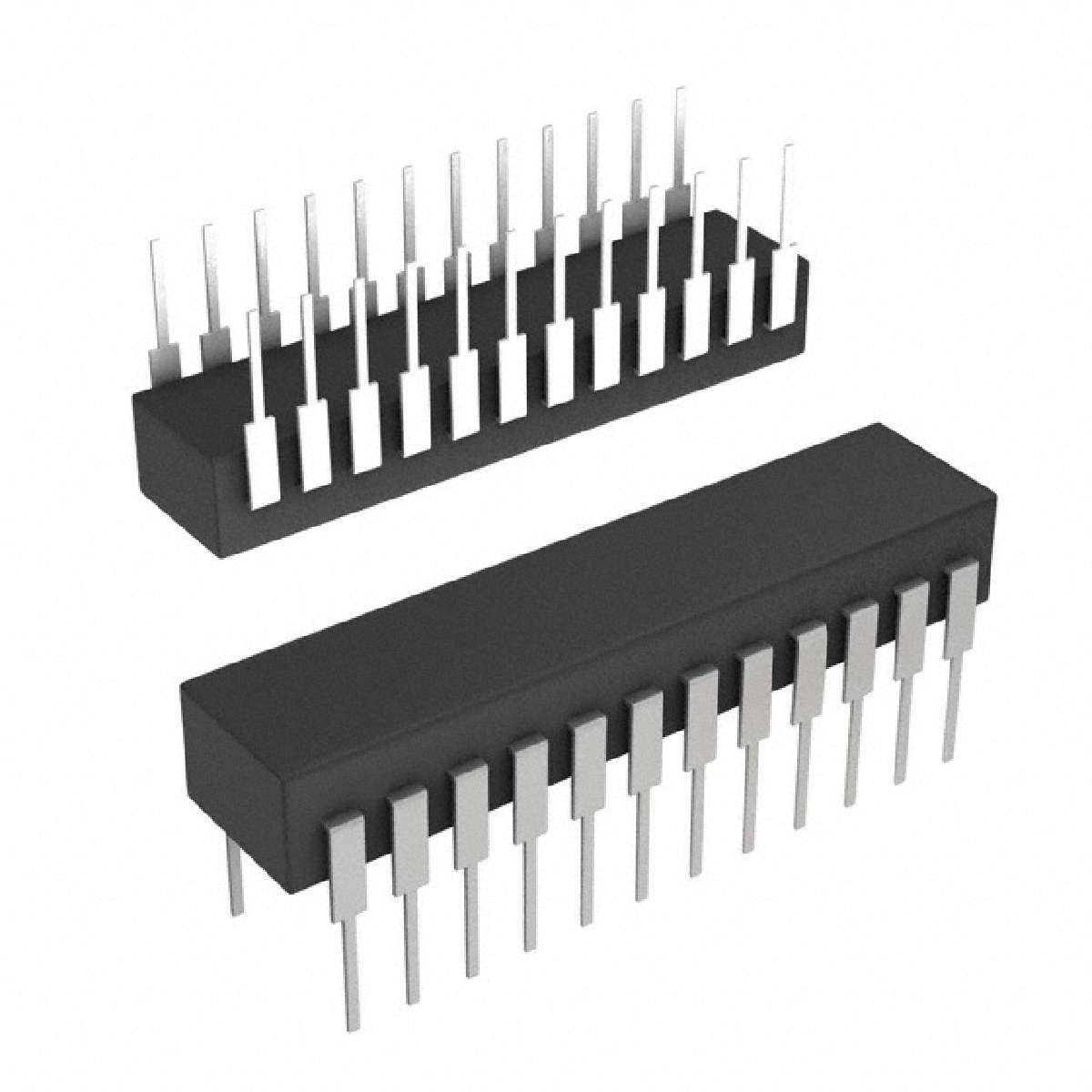

82C54 Series 5.5 V 10 mA 8 MHz CMOS Programmable Interval Timer - PDIP-24
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 14.73 mm (Max) |
|---|---|
| Length: | 32.7 mm (Max) |
| Manufacturer: | Intersil |
| Series: | 82C54 |
| Factory Pack Quantity: | 15 |
| Supply Voltage - Min: | 4.5 V |
| Package / Case: | PDIP-24 |
| Low Level Output Current: | - 2.5 mA |
| High Level Output Current: | 2.5 mA |
| Unit Weight: | 0.131925 oz |
| Mounting Style: | Through Hole |
| ECCN | EAR99 |
| Packaging: | Tube |
| Number of Internal Timers: | 1 Timer |
| Propagation Delay - Max: | 150 ns |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Intersil |
| RoHS: | Details |
| Product Category: | Timers & Support Products |
| Height: | 4.95 mm (Max) |
| Supply Voltage - Max: | 5.5 V |
| Type: | Programmable |
| Maximum Operating Temperature: | + 85 C |
| 数据手册： |
|---|
