| IHLP1212AEERR56M11 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

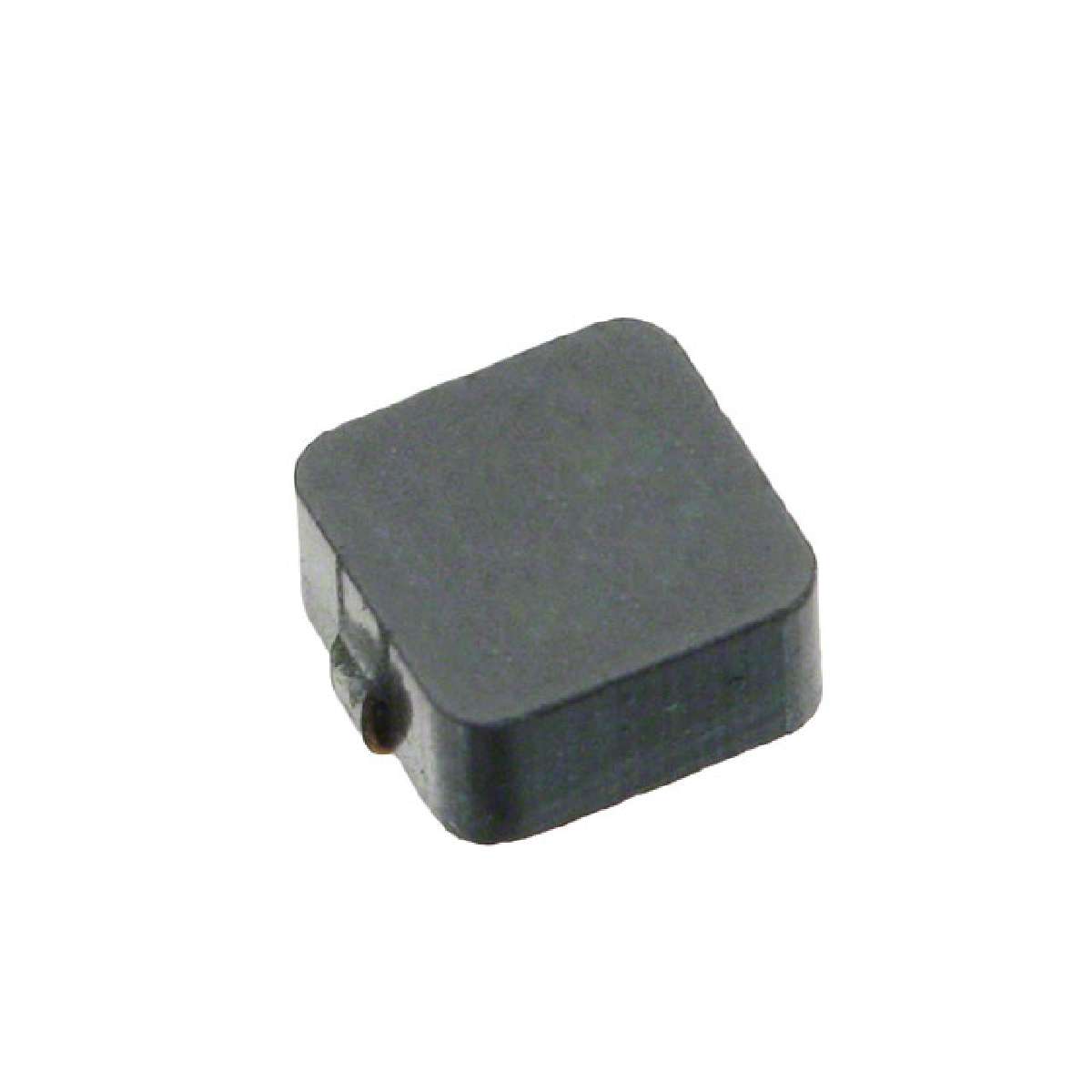

IHLP Series 1212 0.56 uH 20% 6 A Shielded Low Profile High Current SMT Inductor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Power Inductors |
|---|---|
| Width: | 3 mm |
| Test Frequency: | 100 kHz |
| Self Resonant Frequency: | 1 MHz |
| Series: | IHLP-1212AE-11 |
| Factory Pack Quantity: | 3000 |
| Maximum DC Current: | 5.5 A |
| Termination Style: | SMD/SMT |
| Product Category: | Fixed Inductors |
| Maximum DC Resistance: | 20.4 mOhms |
| Height: | 1.2 mm |
| Mounting Style: | Solder Pad |
| Inductance: | 560 nH |
| Packaging: | Reel |
| Length: | 3.6 mm |
| Manufacturer: | Vishay |
| Operating Temperature Range: | - 55 C to + 125 C |
| Brand: | Vishay / Dale |
| RoHS: | Details |
| Package / Case: | 1212 (3630 metric) |
| Shielding: | Shielded |
| Tolerance: | 20 % |
| Type: | Low Profile High Current IHLP Inductors |
| ECCN | EAR99 |
