| HSDL-4400#011 | ||
|---|---|---|
|
|
||
|
||

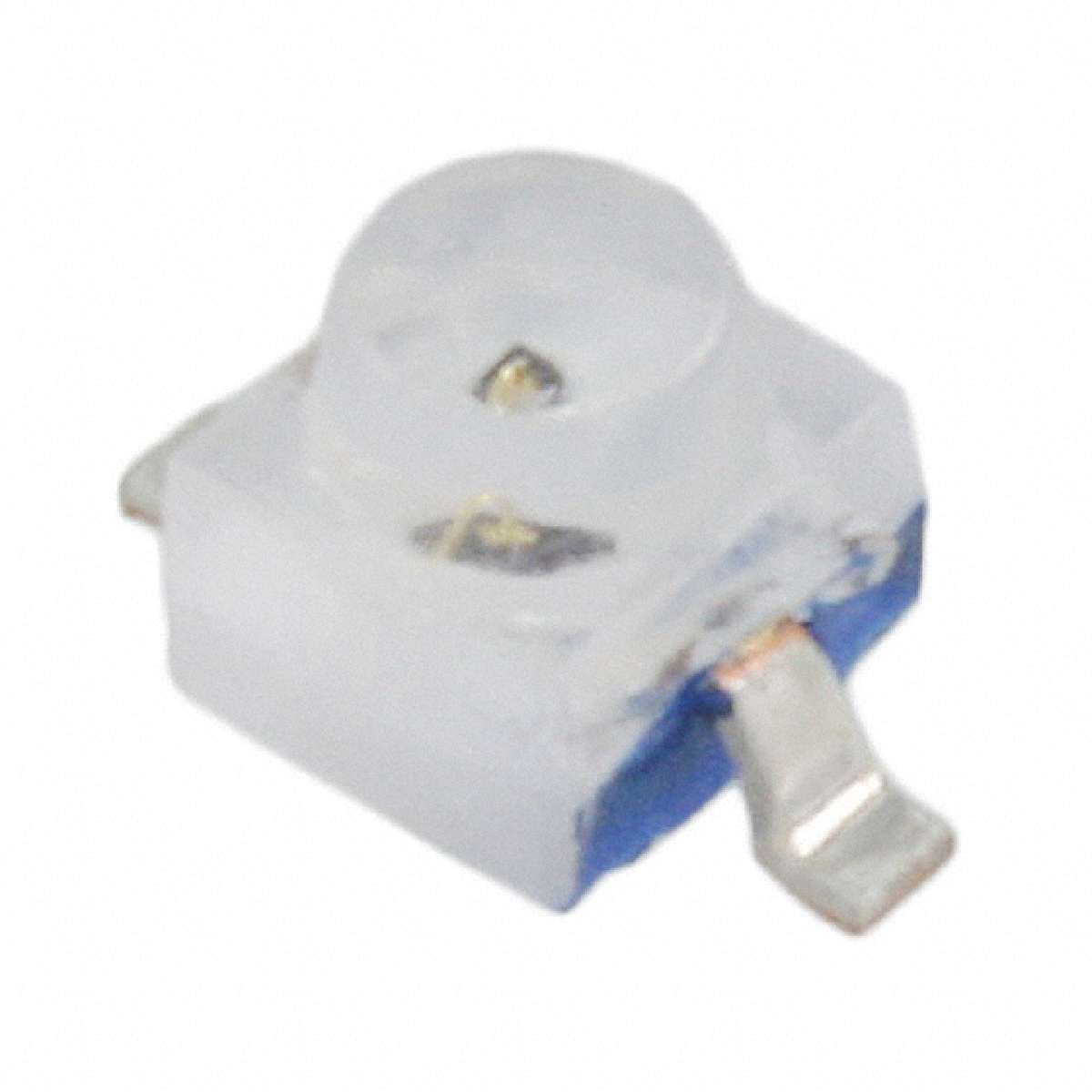

| Product description : HSDL-4400 Series 110° Non-Diffused 100 mA Subminiature Flat IR Emitter SMT | ||
| SPQ：1500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width: | 2.16 mm |
|---|---|
| Packaging: | Reel |
| Length: | 2.34 mm |
| Manufacturer: | Lite-On |
| Factory Pack Quantity: | 1500 |
| RoHS: | Details |
| Product Category: | Infrared Emitters |
| Illumination Color: | Infrared |
| Lens Dimensions: | 1.65 mm x 1.65 mm x 0.82 mm |
| Mounting Style: | SMD/SMT |
| Radiant Intensity: | 15 mW/sr |
| ECCN | EAR99 |
| Viewing Angle: | 110 deg |
| Power Rating: | 100 mW |
| If - Forward Current: | 50 mA |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Lite-On |
| Package / Case: | Subminiature SMT |
| Height: | 2.41 mm |
| Lens Shape: | Round |
| Type: | IrLED |
| Vf - Forward Voltage: | 2.15 V |
| Maximum Operating Temperature: | + 85 C |
