| HP0315AFKP4-S | ||
|---|---|---|
|
|
||
|
||

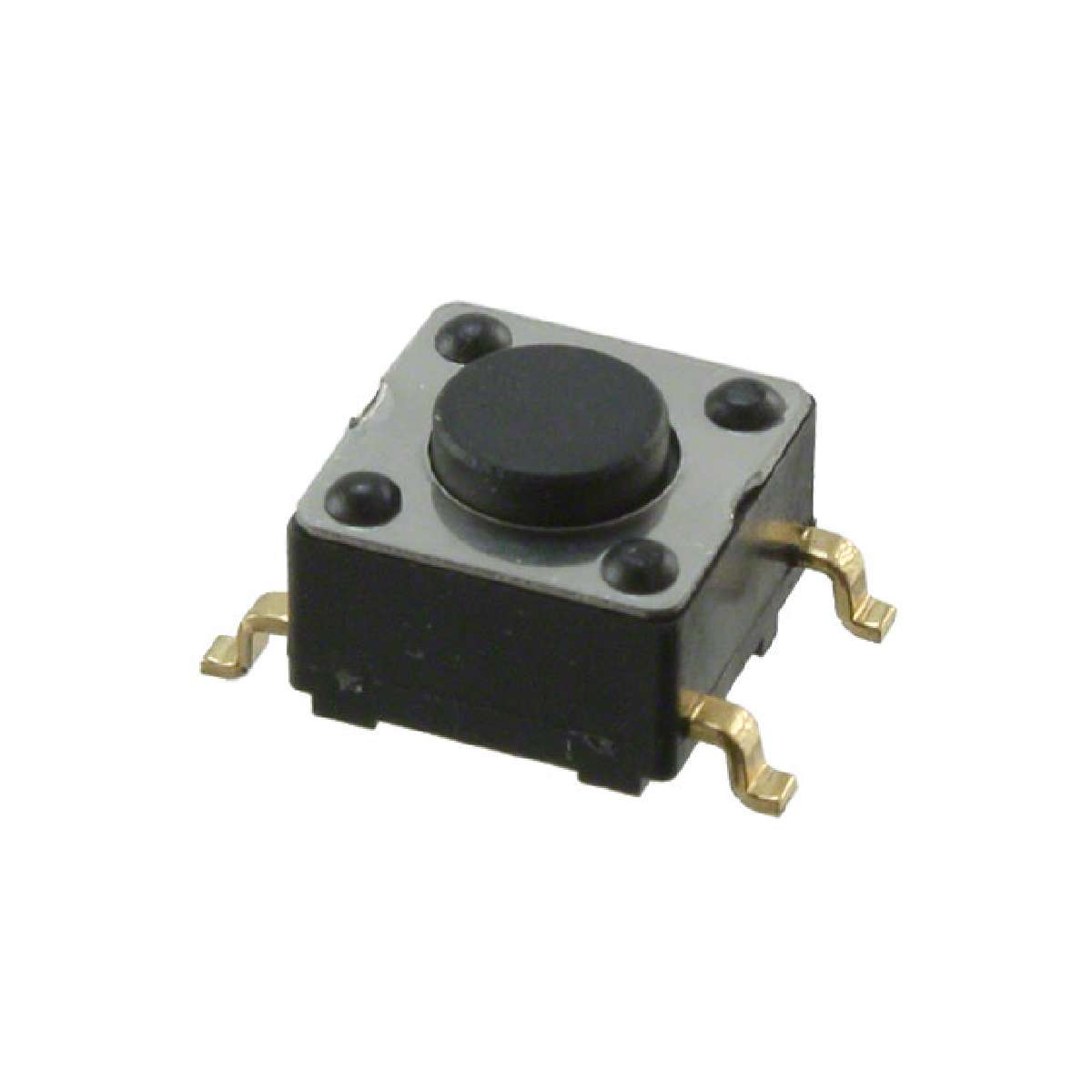

| Product description : Microswitch TACT; SPST; Pos: 2; 0.01A/28VDC; 6.2x6.2x4.4mm; 4.4mm | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width: | 6.2 mm |
|---|---|
| Operating Force: | 1.6 N |
| Actuator: | Round |
| Contact Form: | SPST |
| Height: | 4.3 mm |
| Color: | Black |
| Switch Function: | OFF - (ON) |
| Manufacturer: | NKK Switches |
| Stem Height: | 0.8 mm |
| Voltage Rating DC: | 28 VDC |
| Part # Aliases: | HP03-15AFKP4-ST |
| Termination Style: | Gull Wing Lead |
| Ground Terminal: | No |
| Packaging: | Tube |
| Power Rating: | 3 VA |
| Operating Temperature Range: | - 20 C to + 70 C |
| Contact Plating: | Gold |
| Mounting Style: | SMD/SMT |
| Mounting Direction: | Straight |
| Length: | 6.2 mm |
| Series: | HP |
| Factory Pack Quantity: | 100 |
| Brand: | NKK Switches |
| RoHS: | Details |
| Product Category: | Tactile Switches |
| ECCN | EAR99 |
