HP0315AFKP2-R specifications -Ameya360 electronic components purchase network


HP0315AFKP2-R

ACTIVE EAR99

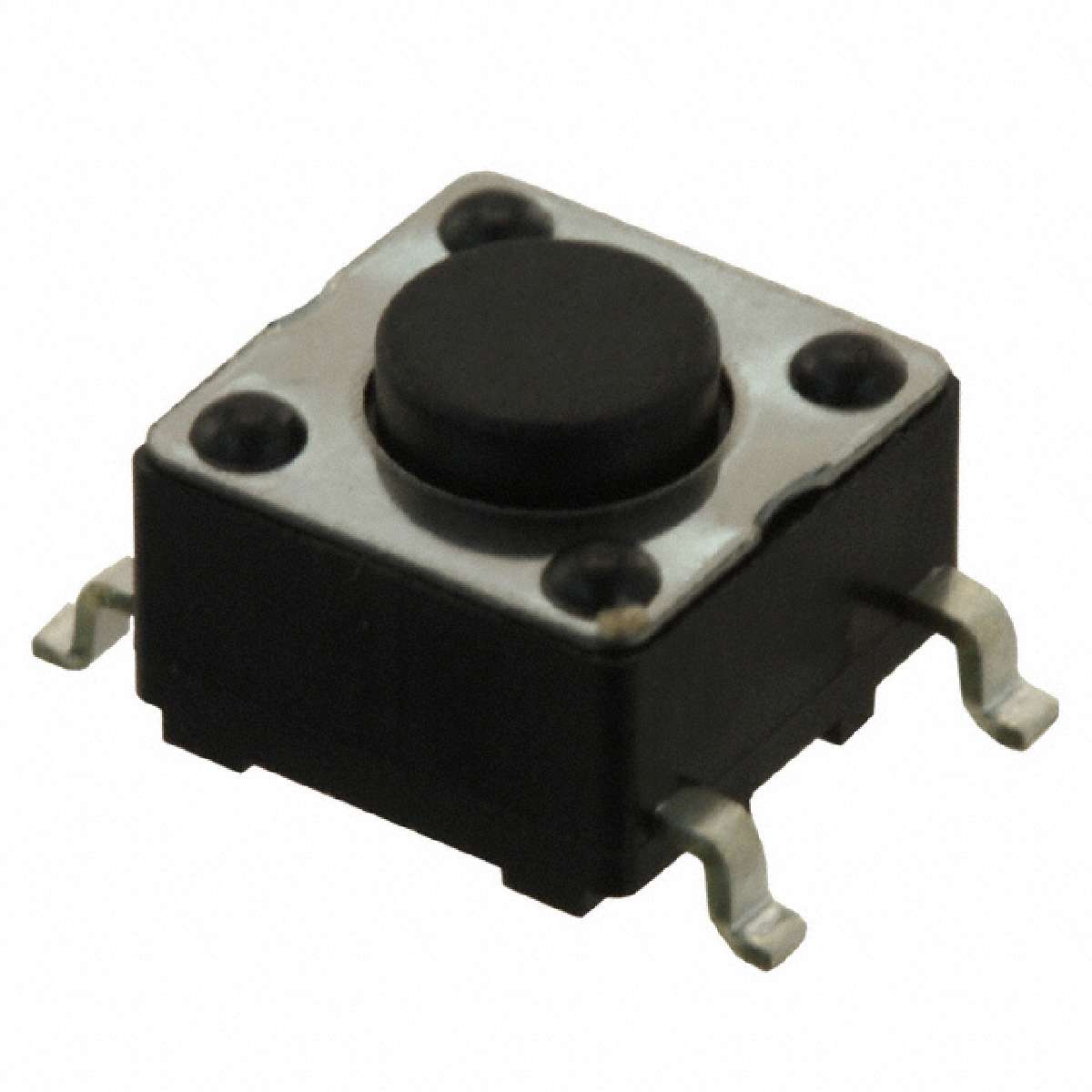

Product description : HP03 Series SPST-NO 160 gram Force Standard Surface Mount Tactile Switch
SPQ：1
Datasheet : HP0315AFKP2-R.pdf

Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	3VA @ 28VDC
Termination Style	Gull Wing
Part Status	Active
Category	Switches
Switch Travel	0.20mm
Operating Force	160gf
Family	Tactile Switches
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
ECCN	EAR99
Actuator Type	Standard
Actuator Orientation	Top Actuated
Actuator Height off PCB, from Pins	4.40mm
Features	Sealed - Flux Protection
Manufacturer	NKK Switches
Illumination	Non-Illuminated
Series	HP03
Mechanical Life	500,000 Cycles
Outline	6.20mm x 6.20mm
Operating Temperature	-20°C ~ 70°C
Actuator Material	Polyamide (PA), Nylon, Glass Filled

Datasheet： HP0315AFKP2-R.pdf
