HIP4086APZ

ACTIVE EAR99

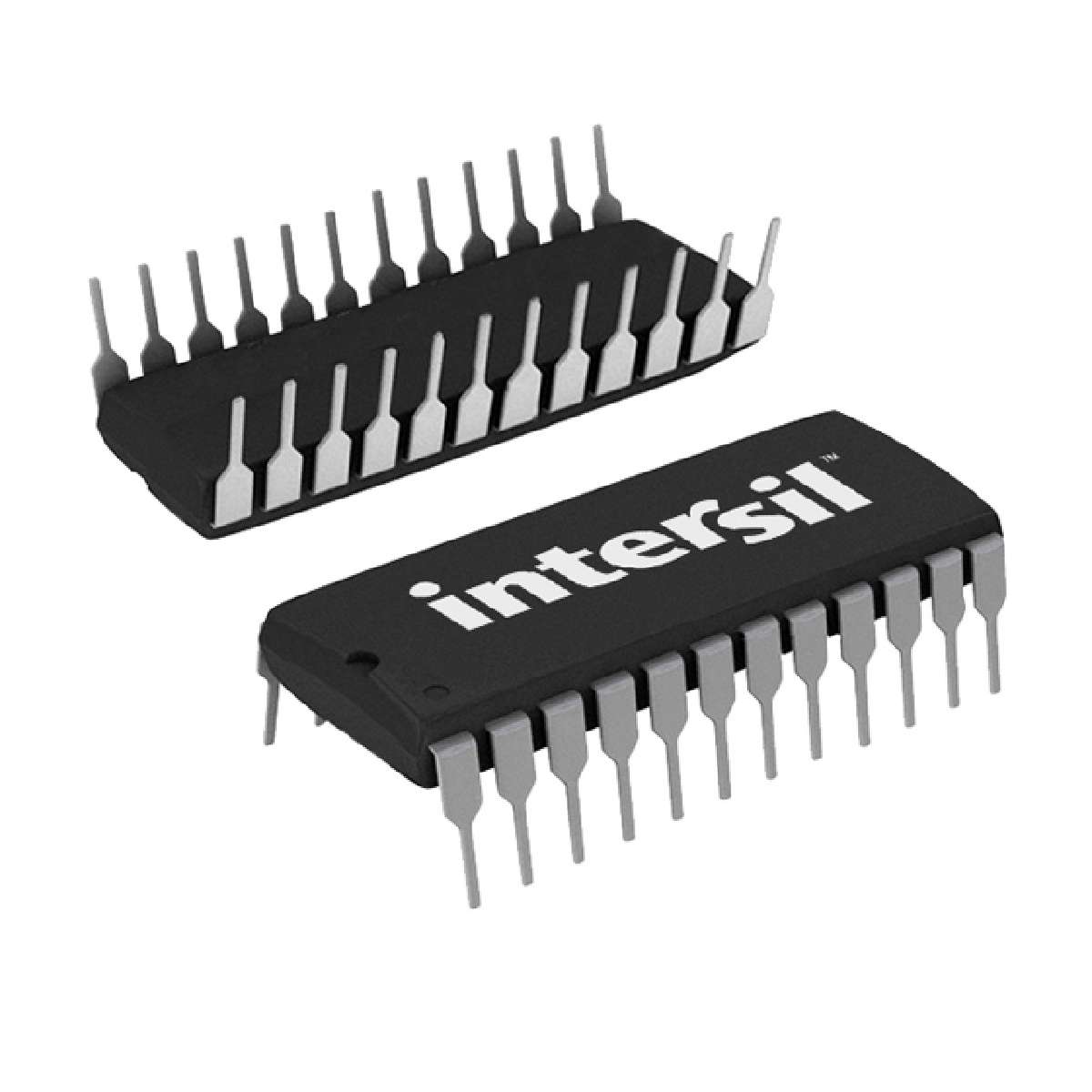

Product description : HIP4086 Series 16 V 1.5 A Hex Output Three Phase Mosfet Driver - PDIP-24
SPQ：1
Datasheet : HIP4086APZ.pdf

Output Current:	500 mA
Product:	MOSFET Gate Drivers
Packaging:	Tube
Manufacturer:	Intersil
Series:	HIP4086
Factory Pack Quantity:	15
Supply Voltage - Min:	7 V
Package / Case:	PDIP-24
Operating Supply Current:	3.6 mA
Supply Voltage - Max:	15 V
Unit Weight:	0.131925 oz
Mounting Style:	Through Hole
ECCN	EAR99
Fall Time:	10 ns
Width:	7.11 mm (Max)
Length:	32.51 mm (Max)
Operating Supply Voltage:	7 V to 15 V
Minimum Operating Temperature:	- 40 C
Brand:	Intersil
RoHS:	Details
Product Category:	Gate Drivers
Height:	4.95 mm (Max)
Rise Time:	20 ns
Type:	3 Phase Gate Driver
Maximum Operating Temperature:	+ 125 C

Datasheet： HIP4086APZ.pdf
