| HDSP-F111 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

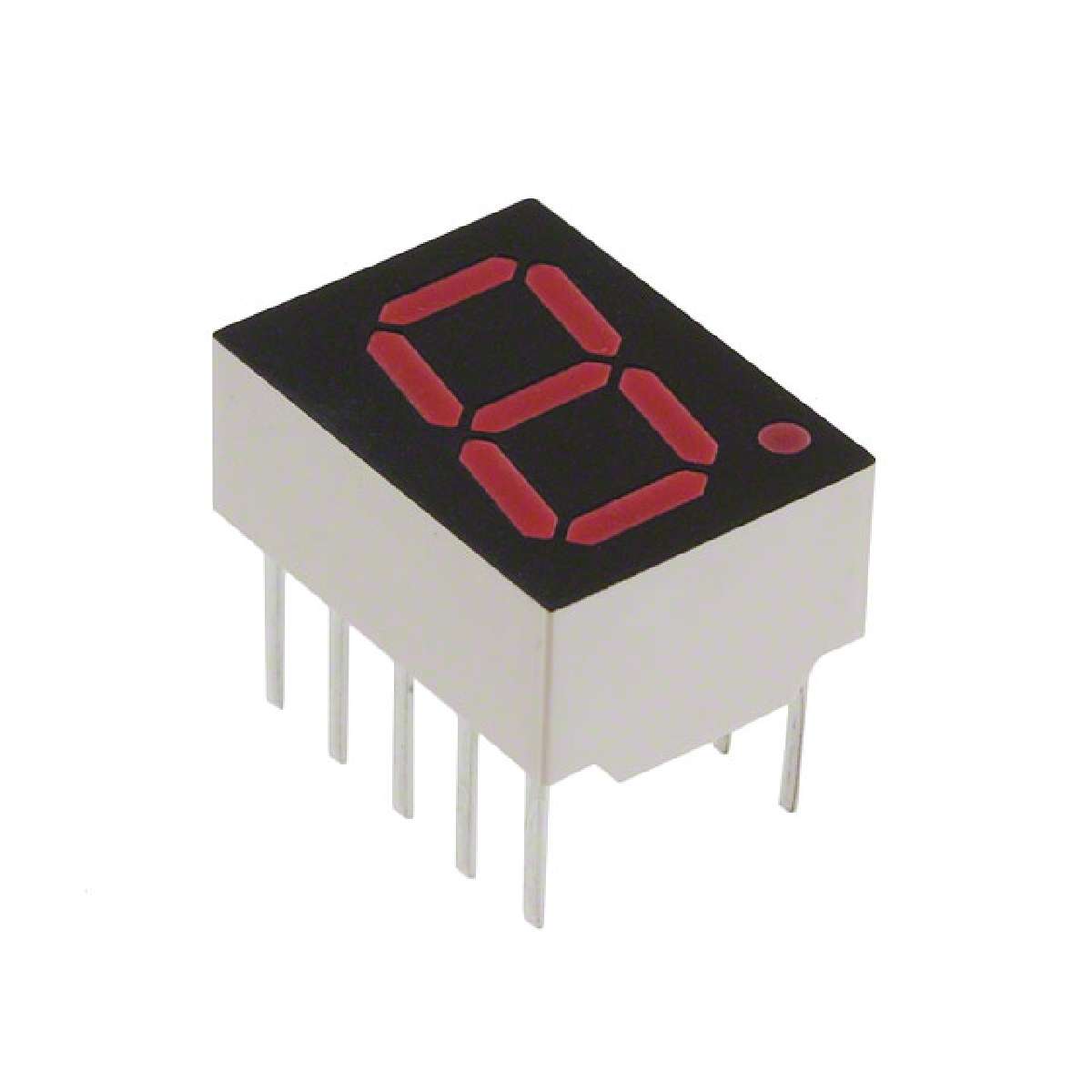

DISPLAY 7SEGMENT ALGAAS CA
|
||
| 标准包装：200 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Display Type: | 7 Segment |
|---|---|
| Viewing Area - W x H: | 5.59 mm x 10.16 mm |
| If - Forward Current: | 20 mA |
| Luminous Intensity: | 3900 ucd |
| Minimum Operating Temperature: | - 20 C |
| Brand: | Broadcom / Avago |
| Power Consumption: | 37 mW |
| Number of Digits: | 1 |
| Configuration: | Common Anode |
| Wavelength: | 637 nm |
| Maximum Operating Temperature: | + 100 C |
| Character Size: | 5.59 mm x 10.16 mm |
| Packaging: | Tube |
| Manufacturer: | Broadcom Limited |
| Operating Temperature Range: | - 20 C to + 100 C |
| Factory Pack Quantity: | 200 |
| RoHS: | Details |
| Product Category: | LED Displays & Accessories |
| Illumination Color: | Red |
| Mounting Style: | Through Hole |
| Vf - Forward Voltage: | 1.8 V |
