HCPL0500R2

ACTIVE EAR99

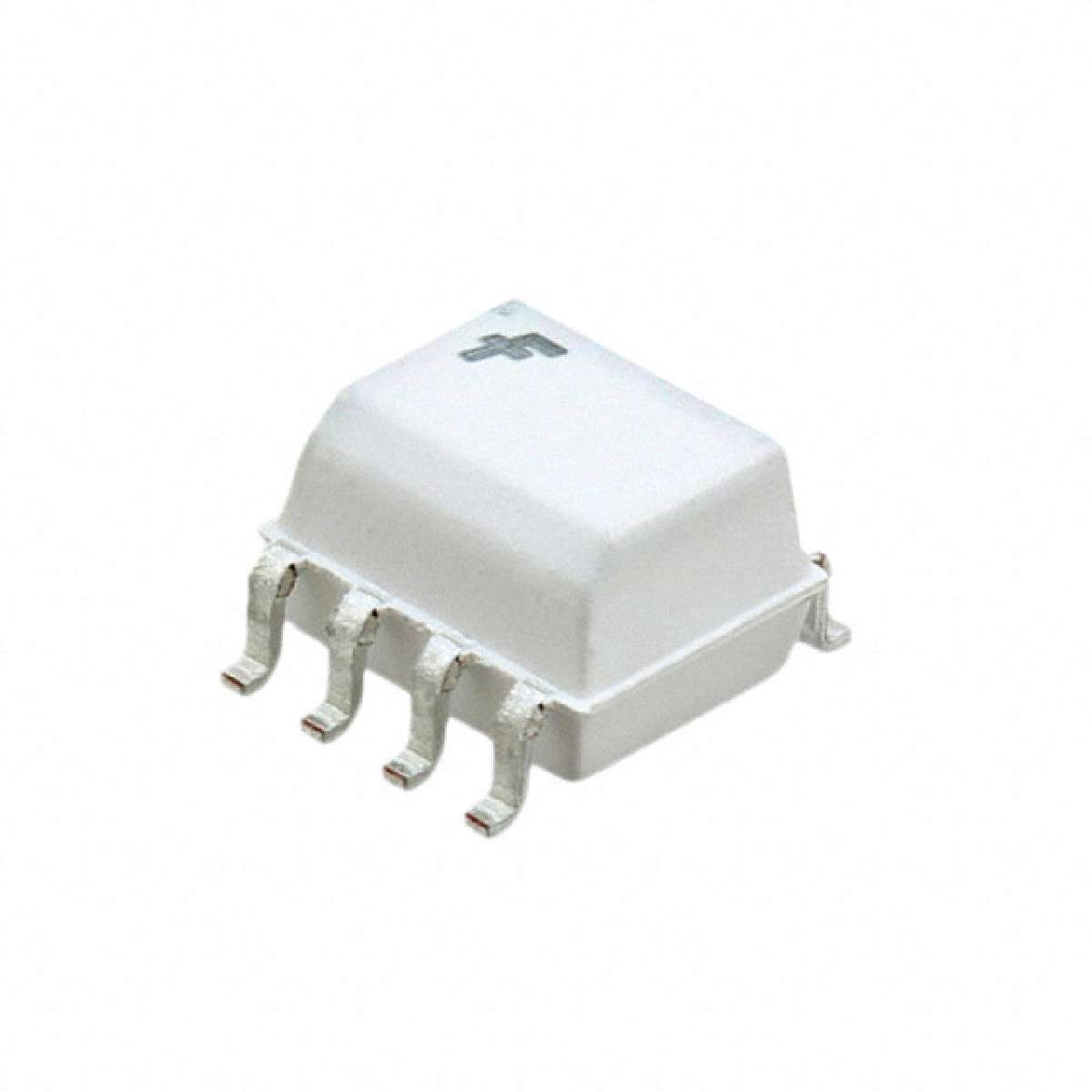

Product description : Fairchild HCPL0500R2 直流输入, 光电晶体管输出双光耦合器表面安装安装 MDIP 8针
SPQ：1
Datasheet : HCPL0500R2.pdf

Minimum Operating Temperature:	- 40 C
Packaging:	Reel
Pd - Power Dissipation:	100 mW
Package / Case:	SOIC-8 Narrow
Unit Weight:	0.008889 oz
Maximum Collector Current:	8 mA
Fall Time:	1.5 us
Length:	5.13 mm
Manufacturer:	Fairchild Semiconductor
Data Rate:	1 Mbps
Factory Pack Quantity:	2500
RoHS:	Details
Rise Time:	1.5 us
ECCN	EAR99
Isolation Voltage:	2500 Vrms
Width:	4.16 mm
Current Transfer Ratio:	2.7 %
Height:	3.43 mm
Vf - Forward Voltage:	1.45 V
Number of Channels:	1 Channel
Output Current:	8 mA
If - Forward Current:	16 mA
Output Type:	Phototransistor
Vr - Reverse Voltage:	5 V
Brand:	Fairchild Semiconductor
Product Category:	High Speed Optocouplers
Maximum Operating Temperature:	+ 85 C

Datasheet： HCPL0500R2.pdf
