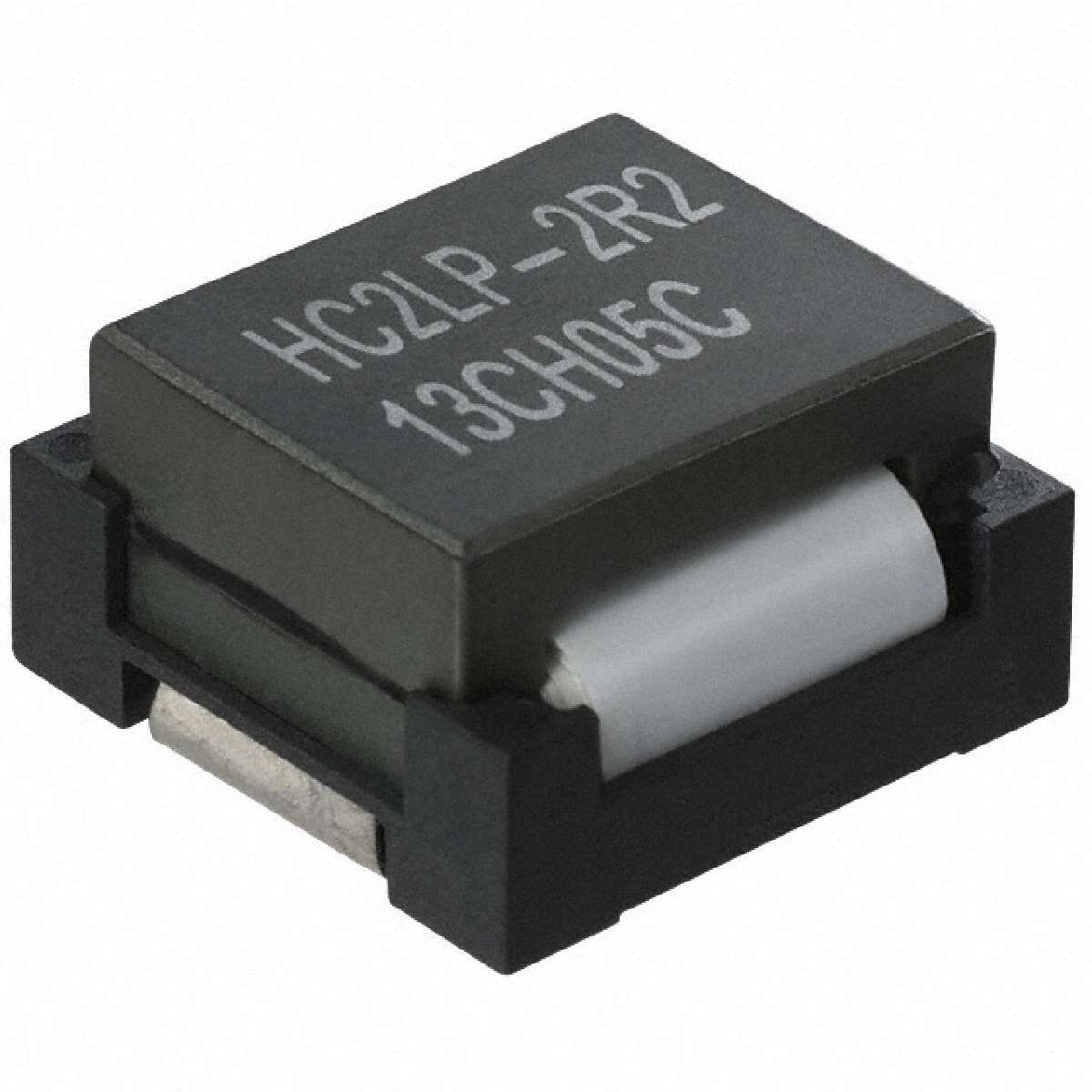

| HC2LP-2R2-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
HC2LP Series 2.2 uH ±20% Tolerance 24.3 A Unshielded High Current Power Inductor
|
||
| 标准包装：130 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| Tolerance | ±20% |
| Current - Saturation | 31.9A |
| Part Status | Active |
| Manufacturer | Eaton |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.3 mOhm Max |
| Current Rating | 24.3A |
| ECCN | EAR99 |
| Inductance | 2.2µH |
| Type | Wirewound |
| Size / Dimension | 0.755" L x 0.755" W (19.20mm x 19.20mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.440" (11.18mm) |
| Series | HC2LP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tape & Reel (TR) |
| Frequency - Test | 300kHz |
