| HB16CKW01-5F-FB | ||
|---|---|---|
|
|
||
|
||

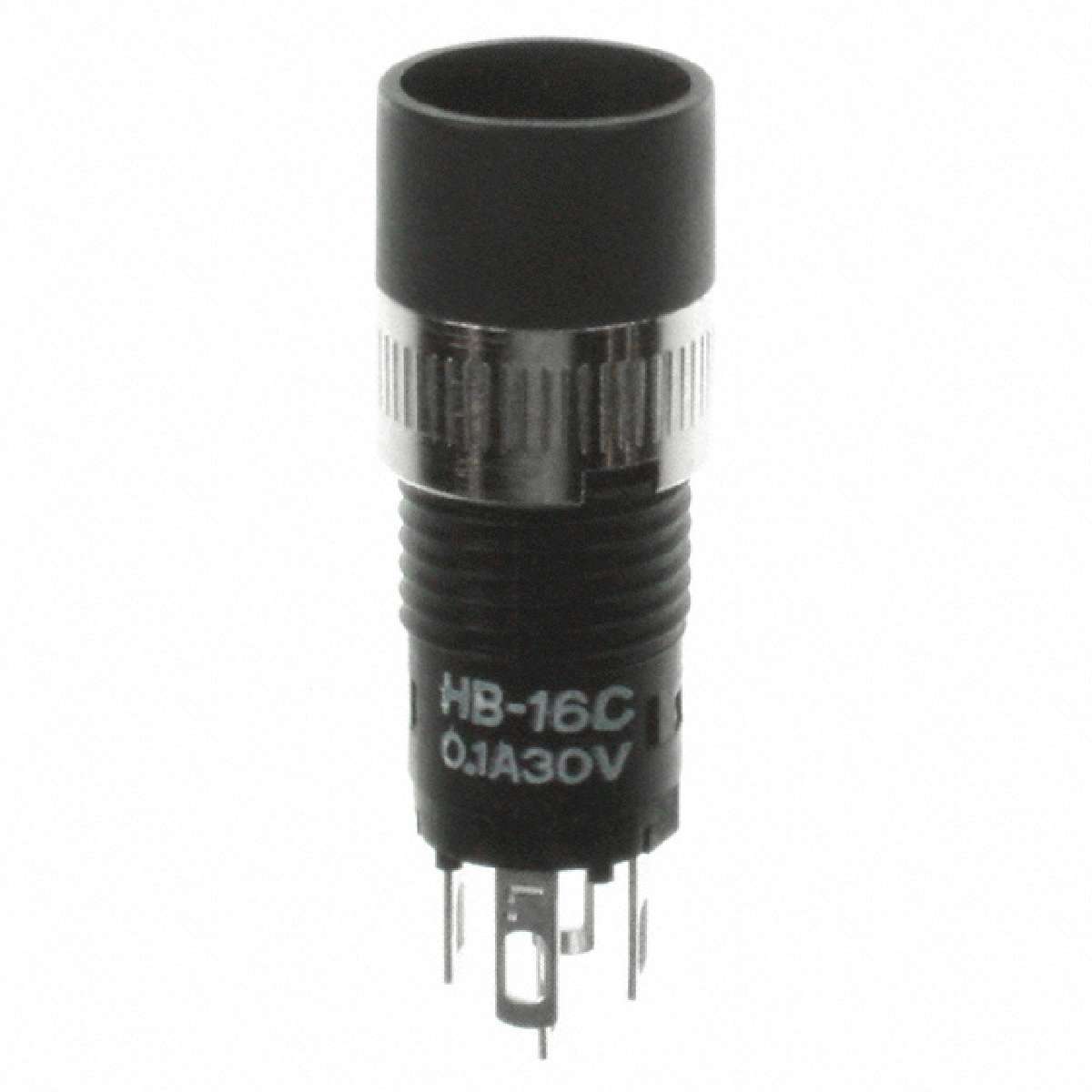

| Product description : HB Series SPDT On-On Round Green LED Clear/White Cap Sub Mini Pushbutton Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Illumination Voltage (Nominal) | 2.1 VDC |
|---|---|
| Actuator Type | Round, Button |
| Type | Standard, Illuminated |
| Termination Style | Solder Lug |
| Part Status | Active |
| Electrical Life | 50,000 Cycles |
| Manufacturer | NKK Switches |
| Series | HB |
| Family | Pushbutton Switches |
| Mounting Type | Panel Mount, Front |
| Packaging | Tray |
| ECCN | EAR99 |
| Circuit | SPDT |
| Switch Function | On-On |
| Voltage Rating - AC | 30V |
| Voltage Rating - DC | 30V |
| Illumination Type, Color | LED, Green |
| Category | Switches |
| Color - Actuator/Cap | Green |
| Mechanical Life | 100,000 Cycles |
| Panel Cutout Dimensions | Circular - 8.00mm Dia |
| Operating Temperature | -25°C ~ 50°C |
| Current Rating | 100mA (DC) |
