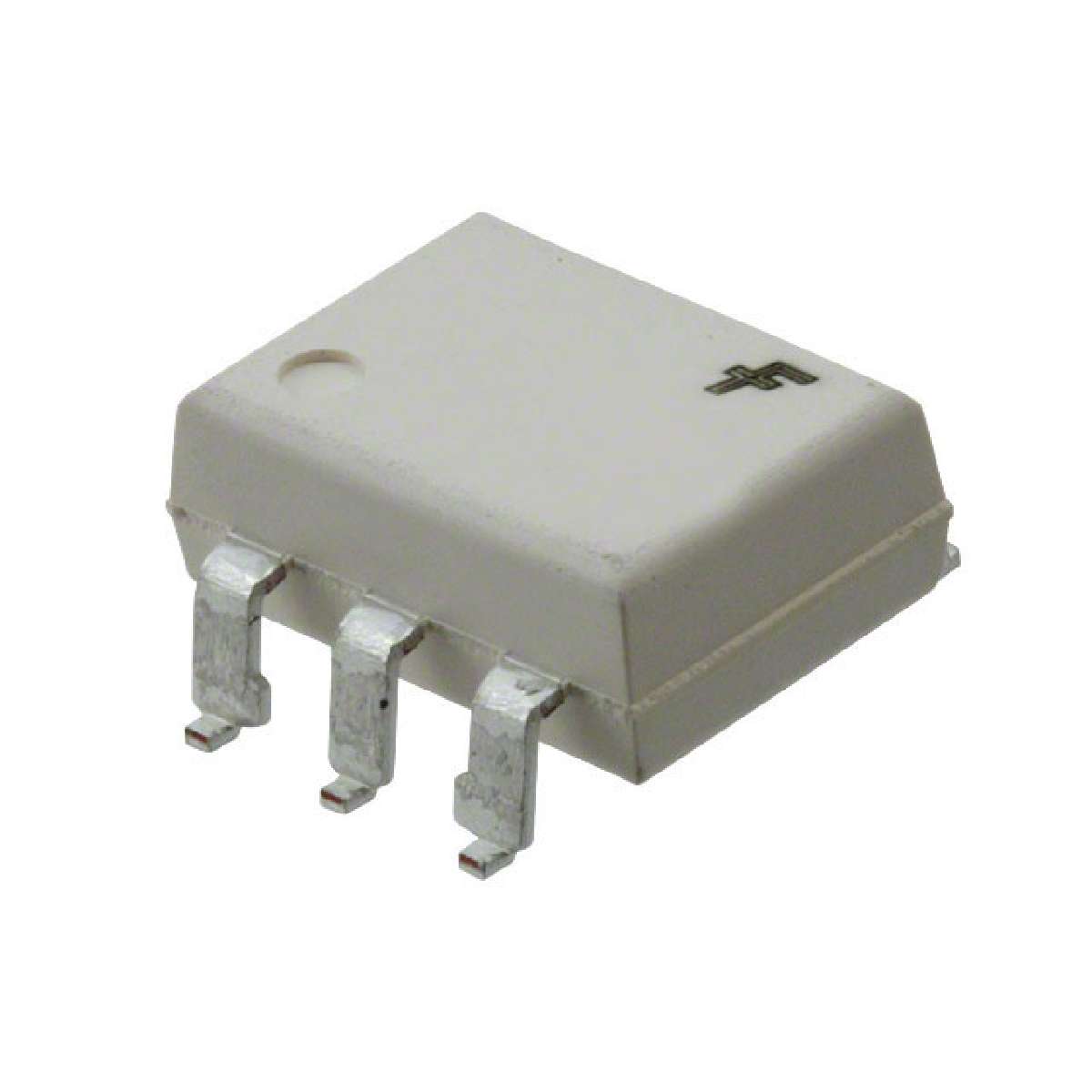

H11N1SVM | ||
---|---|---|
|
||
|
||
产品描述:
低输入电流施密特触发器输出光耦合器
|
||
标准包装:50 | ||
数据手册: |
Voltage - Supply | 4 V ~ 15 V |
---|---|
Voltage - Isolation | 4170Vrms |
Package / Case | 6-SMD, Gull Wing |
Supplier Device Package | 6-SMD |
Category | Isolators |
Number of Channels | 1 |
Voltage - Forward (Vf) (Typ) | 1.4V |
Propagation Delay tpLH / tpHL (Max) | 330ns, 330ns |
Family | Optoisolators - Logic Output |
Operating Temperature | -40°C ~ 85°C |
Input Type | DC |
Inputs - Side 1/Side 2 | 1/0 |
Data Rate | 5MHz |
Current - Output / Channel | 50mA |
Part Status | Active |
Manufacturer | Fairchild Semiconductor |
Output Type | Open Collector |
Rise / Fall Time (Typ) | 7.5ns, 12ns |
Current - DC Forward (If) (Max) | 30mA |
Mounting Type | Surface Mount |
Packaging | Tube |
ECCN | EAR99 |
