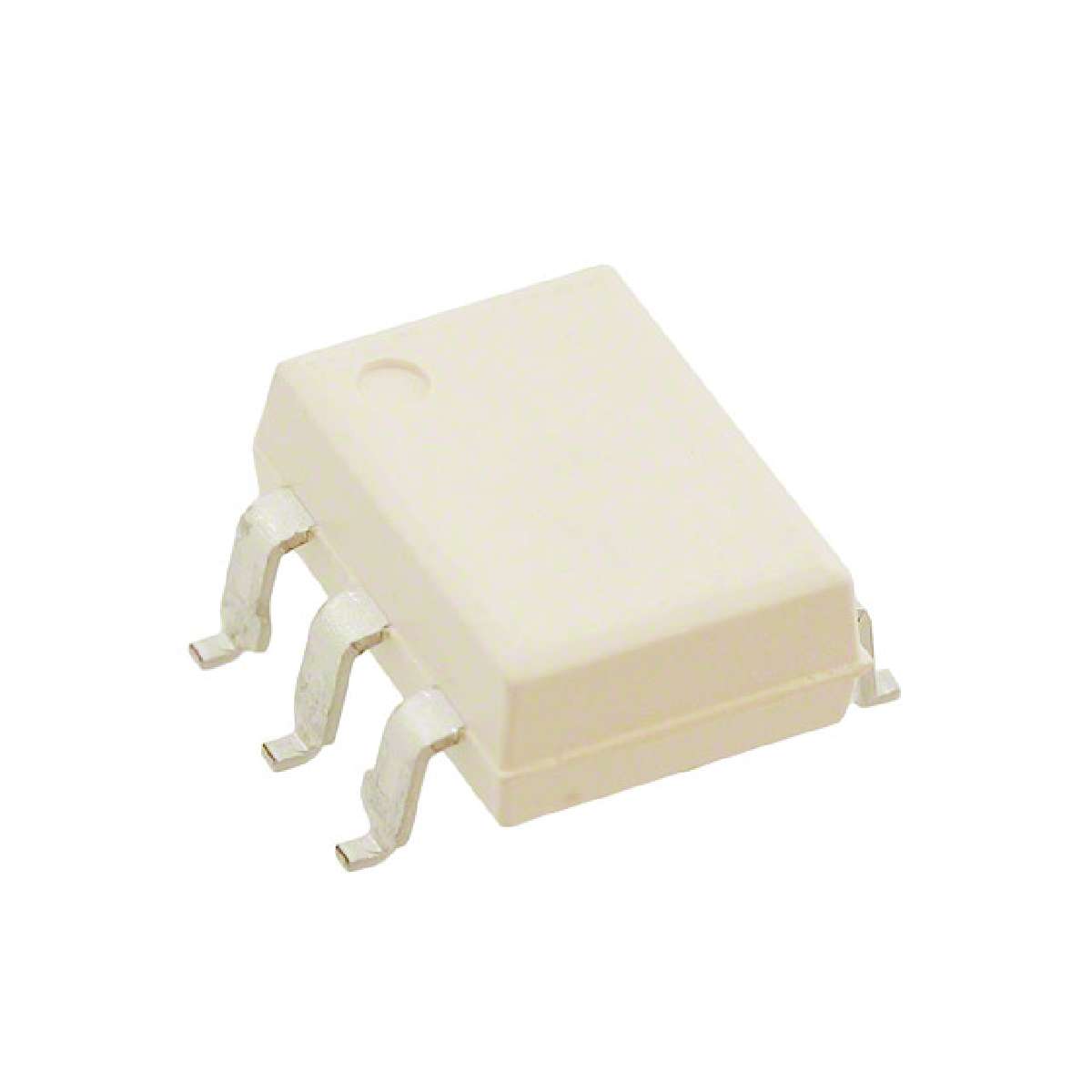

H11N1SR2M
H11N1SR2M
  • ACTIVE
  • 6-SMD
  • EAR99
Product description : H11N1 Series 5 MHz 4170 Vrms Single Channel High Speed Logic Optocoupler -DIP-6
SPQ:1
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Voltage - Supply 4 V ~ 15 V
Voltage - Isolation 4170Vrms
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Category Isolators
Number of Channels 1
Voltage - Forward (Vf) (Typ) 1.4V
Propagation Delay tpLH / tpHL (Max) 330ns, 330ns
Family Optoisolators - Logic Output
Operating Temperature -40°C ~ 85°C
Input Type DC
Inputs - Side 1/Side 2 1/0
Data Rate 5MHz
Current - Output / Channel 50mA
Part Status Active
Manufacturer Fairchild Semiconductor
Output Type Open Collector
Rise / Fall Time (Typ) 7.5ns, 12ns
Current - DC Forward (If) (Max) 30mA
Mounting Type Surface Mount
Packaging Tape & Reel (TR)
ECCN EAR99
Datasheet:
