| MB2061SS1W01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

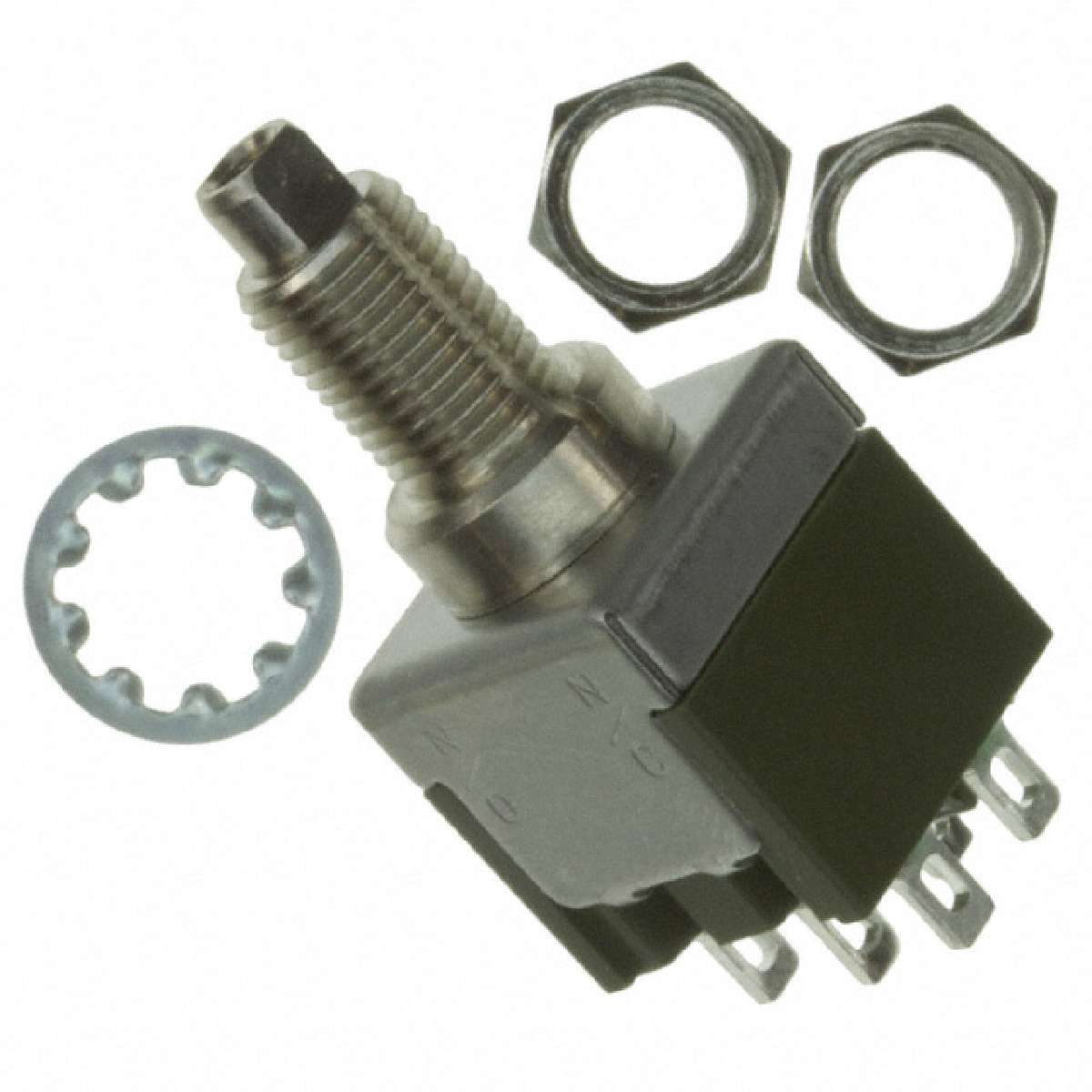

MB2000 Series DPDT On-(On) Bushing Mounting Miniature Pushbutton Switch
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-Mom |
|---|---|
| Termination Style | Solder Lug |
| Product Training Modules | Switch Basics |
| Mounting Type | Panel Mount, Rear |
| Circuit | DPDT |
| Voltage Rating - AC | 125V |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 100,000 Cycles |
| Family | Pushbutton Switches |
| Operating Temperature | -30°C ~ 85°C |
| RoHS | Lead free / RoHS Compliant |
| Type | Standard |
| Voltage Rating - DC | 30V |
| Electrical Life | 25,000 Cycles |
| Packaging | Bulk |
| Actuator Type | Plunger for Cap |
| PCN Design/Specification | Multiple Devices O-ring 30/Jun/2011 |
| Online Catalog | MB2000 Series |
| Series | MB2000 |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Current Rating | 6A (AC), 3A (DC) |
| ECCN | EAR99 |
