| G13AV | ||
|---|---|---|
|
|
||
|
||

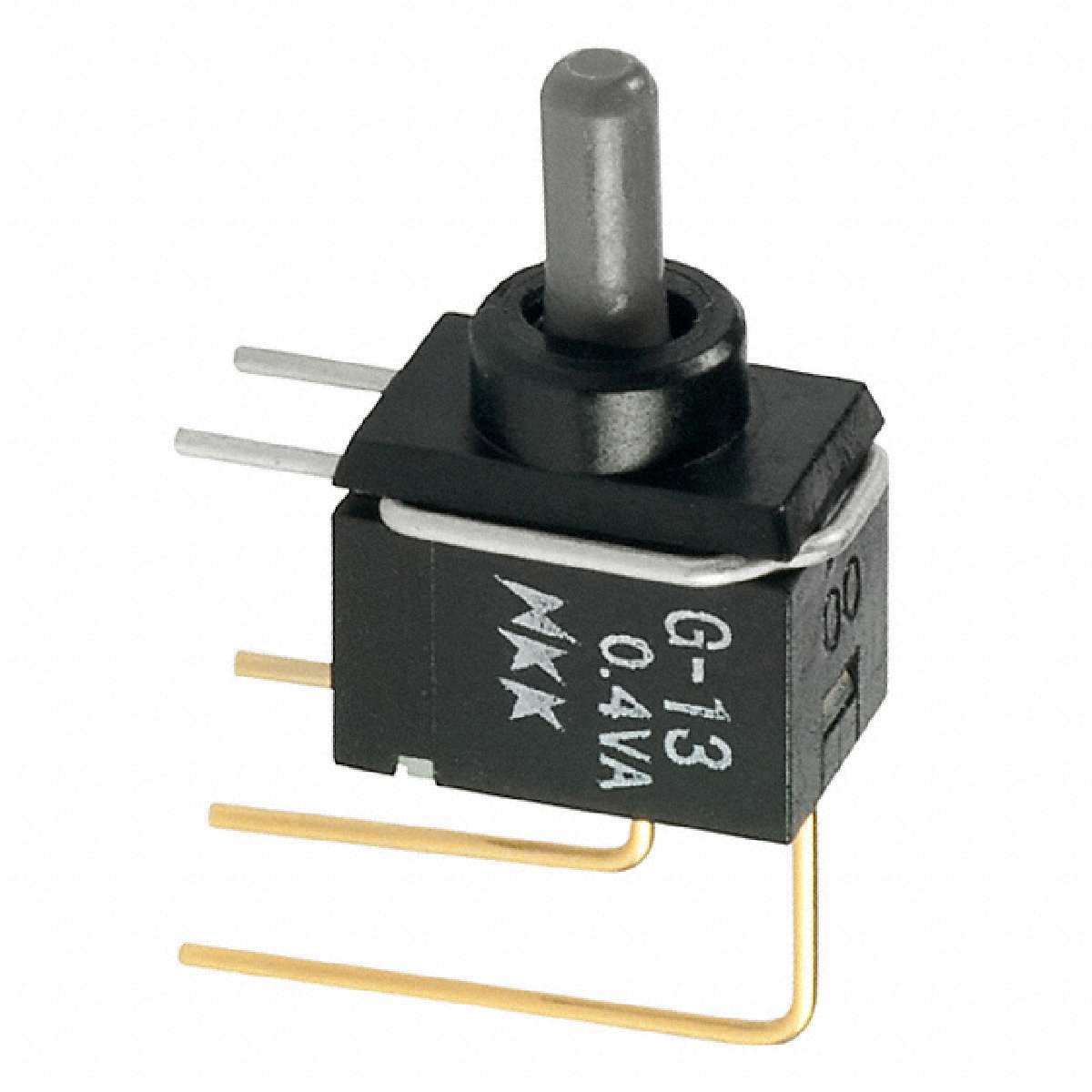

| Product description : G Series SPDT On Off On Vertical PC 3.8 mm Actuator Ultra Miniature Toggle | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Bulk |
|---|---|
| Power Rating: | 0.4 VA |
| Operating Temperature Range: | - 25 C to + 85 C |
| Contact Material: | Gold |
| Mounting Style: | Through Hole |
| Switch Function: | ON - OFF - ON |
| Manufacturer: | NKK Switches |
| Series: | G |
| Factory Pack Quantity: | 1 |
| Part # Aliases: | G-13AV |
| Termination Style: | Solder Pin |
| Current Rating: | 100 mA |
| Type: | Sealed ultra miniature toggles |
| Housing Material: | Polyamide, Glass Fiber Reinforced |
| Actuator: | Bat |
| Contact Form: | SPDT |
| Contact Plating: | Gold |
| Mounting Angle: | Vertical |
| Terminal Seal: | Sealed |
| Voltage Rating AC: | 28 V |
| Voltage Rating DC: | 28 VDC |
| Brand: | NKK Switches |
| RoHS: | Details |
| Product Category: | Toggle Switches |
| Life: | 100000 Cycles |
| ECCN | EAR99 |
