| FX10A-120S/12-SV(91) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

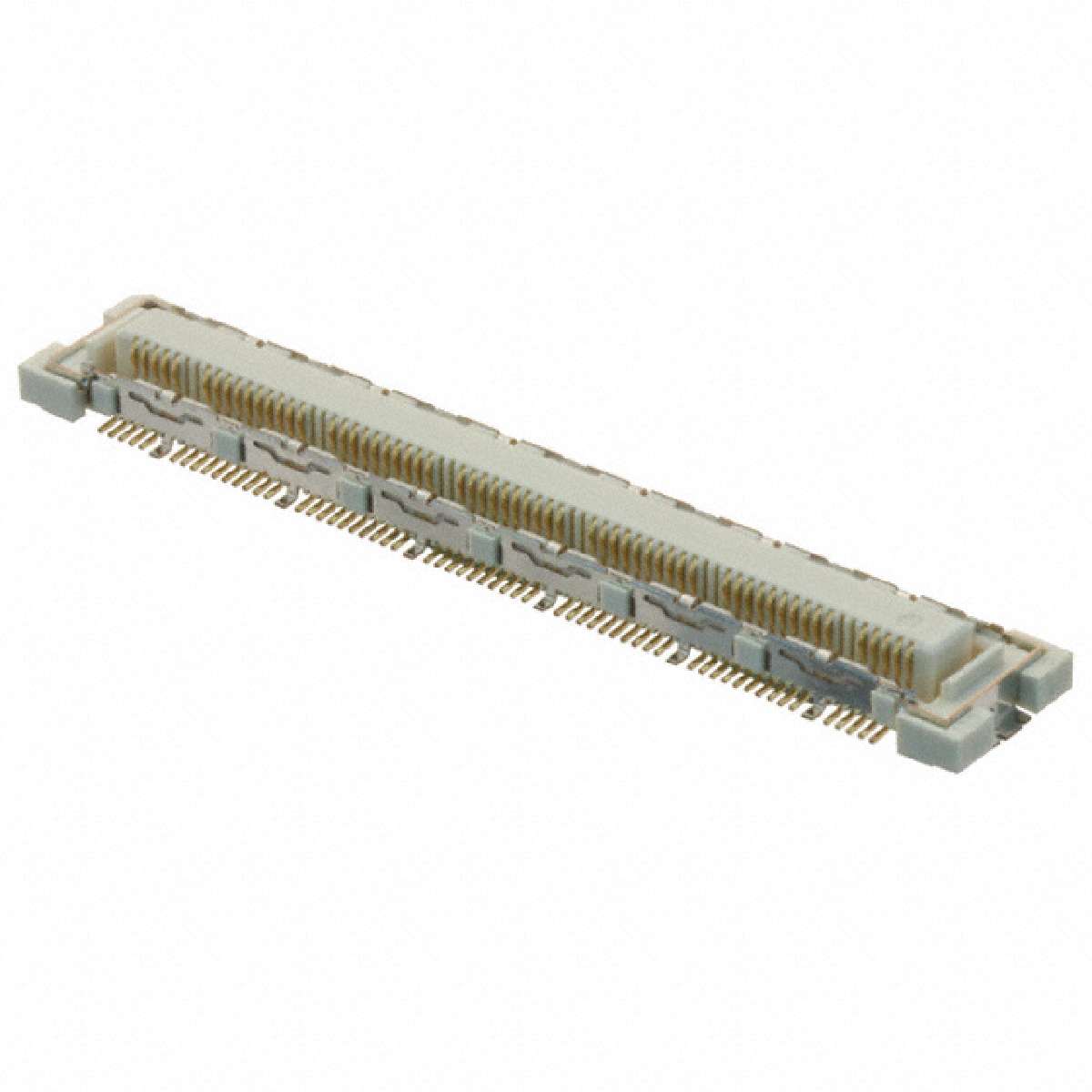

WIRE TO BOARD CONNECTORS
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Height Above Board | 0.126" (3.20mm) |
|---|---|
| Contact Finish | Gold |
| Part Status | Discontinued |
| Manufacturer | Hirose Electric Co Ltd |
| Number of Positions | 120 |
| Mounting Type | Surface Mount |
| Contact Finish Thickness | 3.9µin (0.10µm) |
| Packaging | Cut Tape (CT) |
| ECCN | EAR99 |
| Mated Stacking Heights | 4mm, 5mm |
| Features | Board Guide, Ground Plate, Solder Retention |
| Category | Connectors, Interconnects |
| Series | FunctionMax™ FX10 |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Connector Type | Receptacle, Center Strip Contacts |
| Pitch | 0.020" (0.50mm) |
| Number of Rows | 2 |
| 数据手册： |
|---|
